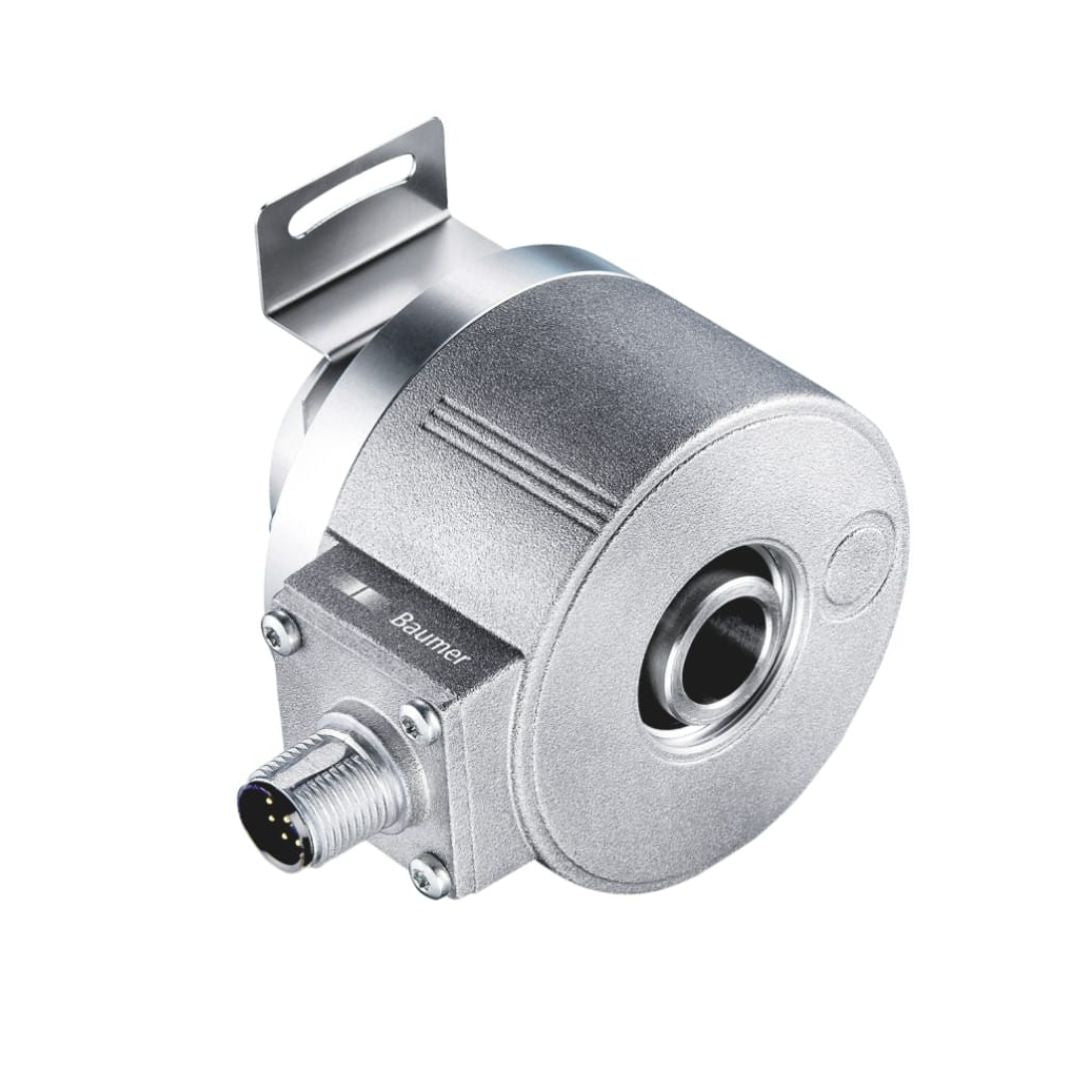

Encoder Baumer EAM580-BNC.7L4G.13120.A,Magnetic Absolute Encoder

Encoder Baumer EAM580-BNC.7L4G.13120.A,Magnetic Absolute Encoder

17,869.63 ฿
17,869.63 ฿
Sale Sold out

BAUMER

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด Encoder Baumer EAM580-BNC.7L4G.13120.A,Magnetic Absolute Encoder

Specifications

Encoder Technology Magnetic
Maximum Revolutions 6000rpm
Shaft Type Hollow
Shaft Diameter 12mm
Supply Voltage 4.5 → 30 V dc
Resolution MT 12 bit, ST 13 bit
IP Rating IP67
Interface SSI-Gray
Overall Width 58mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Mounting Type Blind Hollow Shaft Flange
Series EAM580
Connection Type Cable output 2 m
View full details

Description Baumer EAM580 Series Magnetic Absolute Encoder Code EAM580-BNC.7L4G.13120.A

Overview

  • Encoder single- or multiturn / SSI
  • Precise magnetic sensing
  • Resolution max. 32 bit (14 bit ST, 18 bit MT)
  • Angular accuracy up to ±0.15°
  • Additional incremental signals
  • High protection up to IP 67
  • High resistance to shock and vibrations

Optional

  • Protection against corrosion C5-M
Technical data - electrical ratings
Voltage supply 4.5…30 ​​VDC (SSI, SSI + TTL/RS422)
5.5…30 ​​VDC (SSI + HTL/Push-pull)
Consumption type. 60 mA (5 VDC, w/o load)
20 mA (24 VDC, w/o load)
Initializing time ≤ 170 ms after power on
Data currency Type. 2 µs (cyclic requests)
Interfaces SSI, SSI + incremental
Function Multiturn, Singleturn
Operating mode Linear feedback shift register (on request)
Steps per revolution ≤16384/14bit
Number of revolutions ≤262144/18bit
Absolute accuracy ±0.15 ° (+20 ±15 °C)
±0.25 ° (-40...+85 °C)
Sensing method Magnetic
Code Gray or binary
Code sequence CW: ascending values ​​with clockwise sense of rotation; looking at flange
Inputs SSI clock: Linereceiver RS422 Zero setting input Counting direction
Output stages SSI data: Linedriver RS422 Incremental: linedriver RS422 or push-pull (option)
Incremental output 1024, 2048, 4096 ppr (other on request)
Output signals A+, A-, B+, B-
Output frequency ≤350 kHz
Interference immunity DIN EN 61000-6-2
Emitted interference DIN EN 61000-6-4
Diagnostic function DATAVALID (on request)

Technical data - mechanical design
Size (flange) ø58 mm
Shaft type ø10...15 mm (blind hollow shaft)
Protection DIN EN 60529 IP 65 (without shaft seal), IP 67 (with shaft seal)
Operating speed ≤6000rpm
Starting torque ≤2 Ncm (+20 °C, IP 65)
≤2.5 Ncm (+20 °C, IP 67)
Materials Housing: steel zinc-coated
Flange: aluminum
Hollow shaft: stainless steel
Operating temperature -40...+85 °C (see general information)
relative humidity 95 %
Resistance DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz
DIN EN 60068-2-27 Shock 500 g, 1 ms
Weight approx. 250 g
Connection Flange connector M12, 8-pin
Flange connector M12, 12-pin
Flange connector M23, 12-pin
Cable 2m
