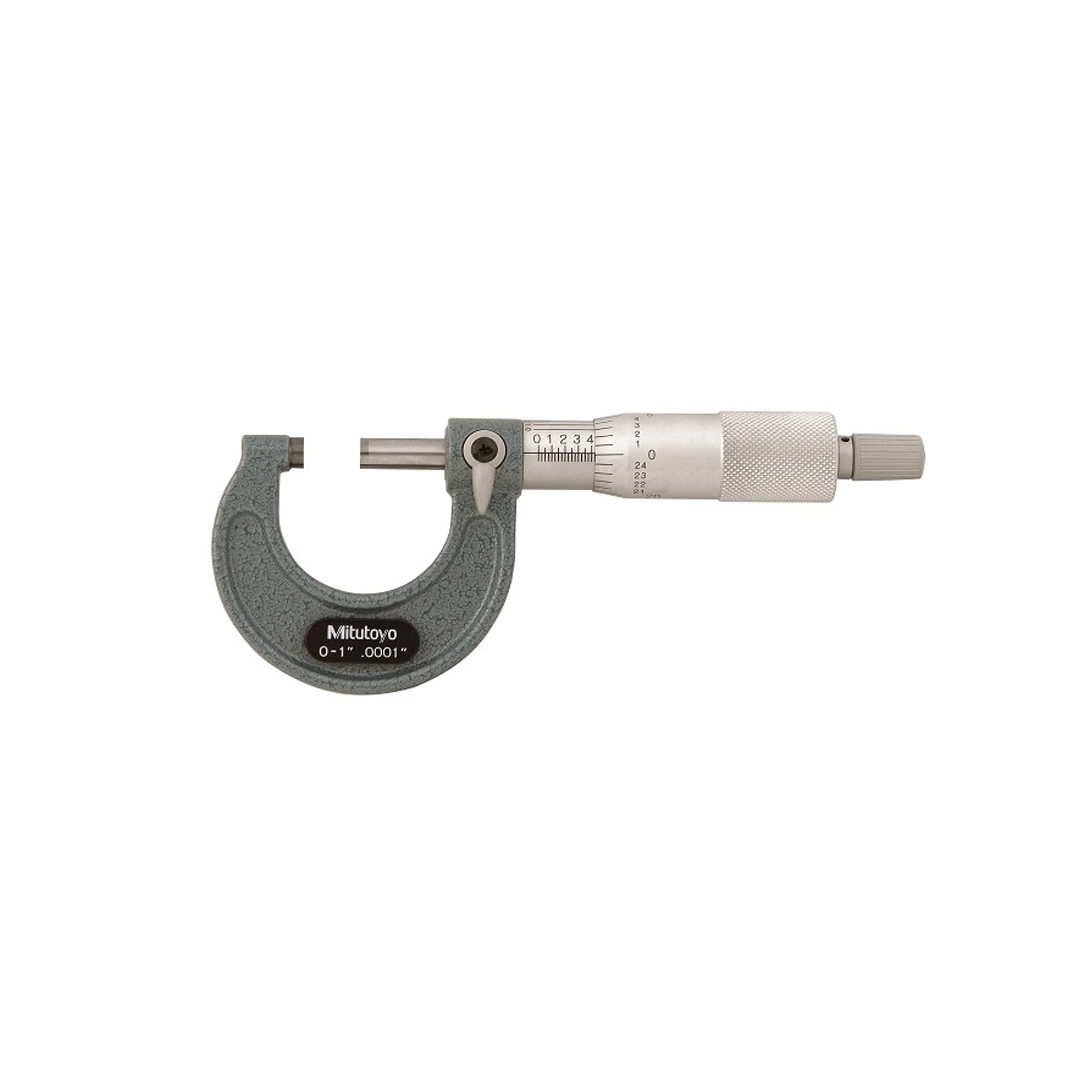

Micrometer Mitutoyo 103-131
Micrometer Mitutoyo 103-131
Regular price
4,175.48 ฿
Regular price
Sale price
4,175.48 ฿
Unit price
per
MITUTOYO
Couldn't load pickup availability
รายละเอียด Micrometer Mitutoyo 103-131
size
- L: 30.3 mm
- a: 2,5 mm
- b: 9 mm
- c: 28 mm
- d: 6,35 mm
feature
| Digital/Analog | analog |
| inches-meters | finger |
| Measuring range | 0 - 1 inch |
| Dial division | 0.0001 inch |
| Maximum Permissible Error (MPE) | ±0.0001 inch |
| Smoothness | 0.000024 inches |
| Parallelism | 0.00008 inches |
| Measuring axis | With shaft lock, ø6.35 mm (≤300 mm) ø 8 mm (>300 mm), shaft distance 0.5 mm. |
| Scale | Satin chrome plated cylinder and sleeve ø18 mm. |
| Measuring force | 5-10 N (from 4 inches and up: 5-15 N) |
| Included equipment | Includes box, standard set (from 1 inch and up), wrench, inspection certificate (range 0-2 inches). |
| mass | 175 grams |
