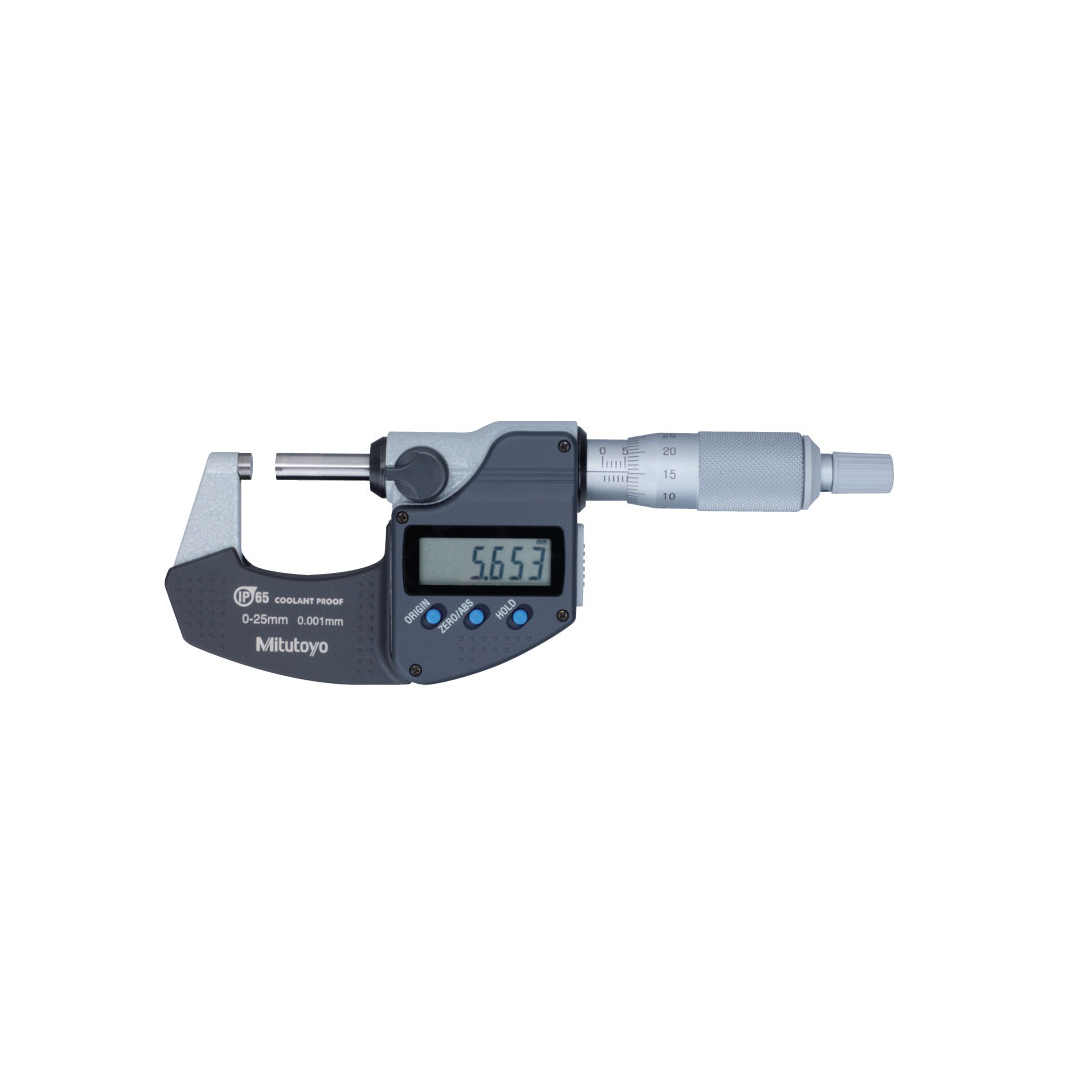

Micrometer Mitutoyo 293-230-30 Range 0 mm-25 mm
Micrometer Mitutoyo 293-230-30 Range 0 mm-25 mm
Regular price
14,538.27 ฿
Regular price
Sale price
14,538.27 ฿
Unit price
per
MITUTOYO
Couldn't load pickup availability
รายละเอียด Micrometer Mitutoyo 293-230-30 Range 0 mm-25 mm
size
- L : 0 mm
- a : 6.5 mm
- b : 25 mm
- c : 2.5 mm
feature
| Digital/Analog (Digital/Analog) | Digital |
| Inch-Metric (Inch-Metric) | Metric |
| Measuring range (Range) | 0 - 25 mm. (0 - 25 mm) |
| Digital Resolution (Digital Step) | 0.001 mm (0.001 mm) |
| Maximum Permissible Error | ±1 µm |
| Accuracy | ±1 µm |
| Flatness | 0.3 µm |
| Parallelism | 1 µm |
| Data Output | Yes (Yes) |
| Display screen (Display) | LCD, character height 7.5 mm (LCD, character height 7.5 mm) |
| Measuring Spindle | With spindle lock, ø6.35 mm., spindle pitch 0.5 mm. (With spindle lock, ø6.35 mm, spindle pitch 0.5 mm) |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm. |
| Energy source (Power Supply) | 1 battery SR-44 (1 battery SR-44) |
| Battery life (Battery Life) | Approx. 2.4 years (Approx. 2.4 years) |
| Equipment that comes with it (Delivered) | Box, key, 1 battery, gauge block (from 25 mm upwards), measuring range up to 50 mm, with factory certificate (including Box, key, 1 battery, gauge block (from 25 mm upward) , up to 50 mm measuring range with factory certificate) |
| ABS / INC system (INC ZERO) | Yes (Yes) |
| Auto power off after 20 minutes of non use (Auto Power OFF after 20 min. non use) | Yes (Yes) |
| Function Lock | Yes (Yes) |
| HOLD | Yes (Yes) |
| 2 x PRESET (over 100 mm) (2 x PRESET (over 100 mm)) | Yes (Yes) |
| Weight (Mass) | 270 grams (270 g) |
