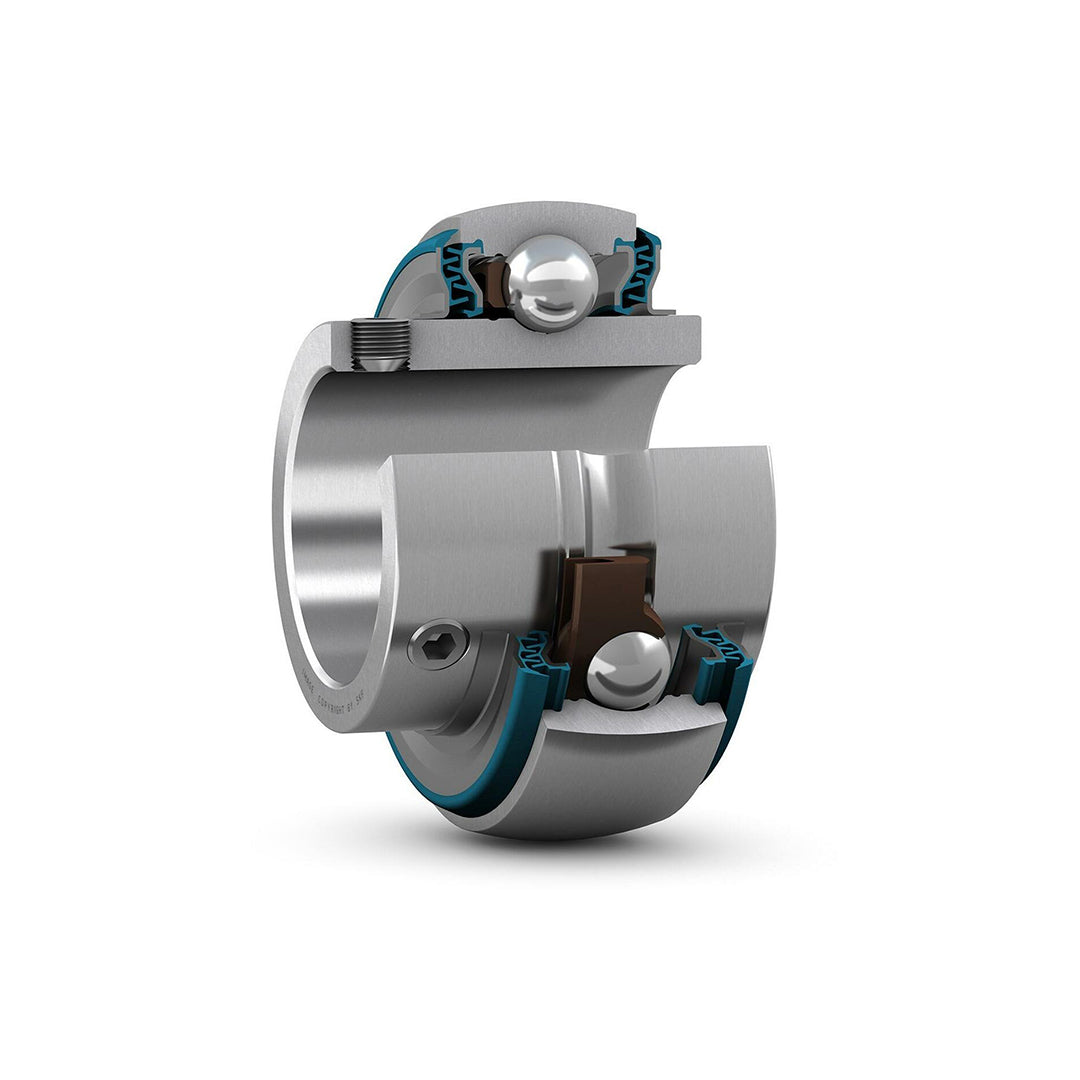

SKF YAR bearing 207-104-2LPW/ZM
SKF YAR bearing 207-104-2LPW/ZM
Regular price
2,489.00 ฿
Regular price
Sale price
2,489.00 ฿
Unit price
per
SKF
Couldn't load pickup availability
รายละเอียด SKF YAR bearing 207-104-2LPW/ZM
Dimensions
| d |
1.25 inches
|
Bore diameter |
|---|---|---|
| D |
2.835 in
|
Outside diameter |
| B |
1.689 in
|
Width of inner ring |
| C |
0.748 inches
|
Width of outer ring |
| d 1 |
≈ 1.815 in
|
Outside diameter of inner ring |
| B 4 |
0.236 in
|
Distance face to thread center |
| r 1,2 |
min. 0.039 in
|
Chamfer dimension of inner ring |
| s 1 |
1 in
|
Distance from locking device side face to raceway center |
Calculation data
| Basic dynamic load rating | C |
5 733 lbf
|
|---|---|---|
| Basic static load rating | C 0 |
3 440 lbf
|
| Fatigue load limit | P u |
147 lbf
|
| Limiting speed |
3 200 r/min
|
|
Limiting speed with shaft tolerance h6
|
||
| Calculation factor | f 0 | 14
|
Mass
| Mass |
1.124 lbs .
|
Mounting information
| Set screw | G 2 | 5/16-24 UNF
|
|---|---|---|
| Hexagonal key size for set screw | N |
0.156 in
|
| Recommended tightening torque for set screw |
57.53 lbf in
|
Associated products
| Rubber seating ring | RIS 207 A |
