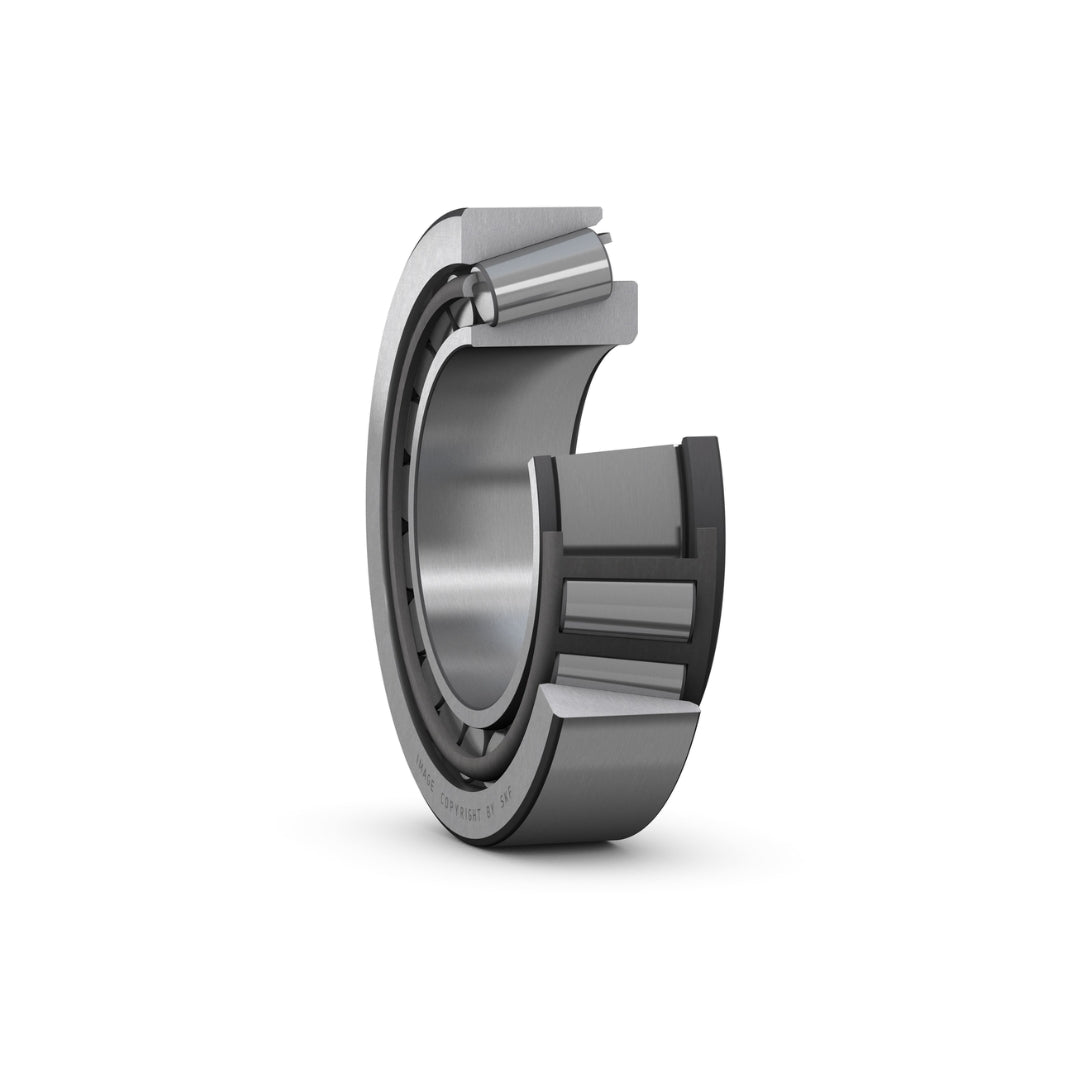

SKF 31324 X bearing

SKF 31324 X bearing

40,000.00 ฿
40,000.00 ฿
Sale Sold out

SKF

รายละเอียด SKF 31324 X bearing

  • High strength and durability
  • Capable of supporting shaft misalignment
  • Works well even under heavy loads
  • ID 120 mm x OD 260 mm

Bearing size

d

120 mm

Bore diameter

D

260 mm

Outside diameter

T

68 mm

Total width

d 1

≈ 191.58 mm

Shoulder diameter of inner ring

B

62 mm

Width of inner ring

C

42 mm

Width of outer ring

r 1,2

min 4 mm

Chamfer dimension of inner ring

r 3,4

min 3mm

Chamfer dimension of outer ring

a

78.172 mm

Distance side face to pressure point

weight

15.3 kg
