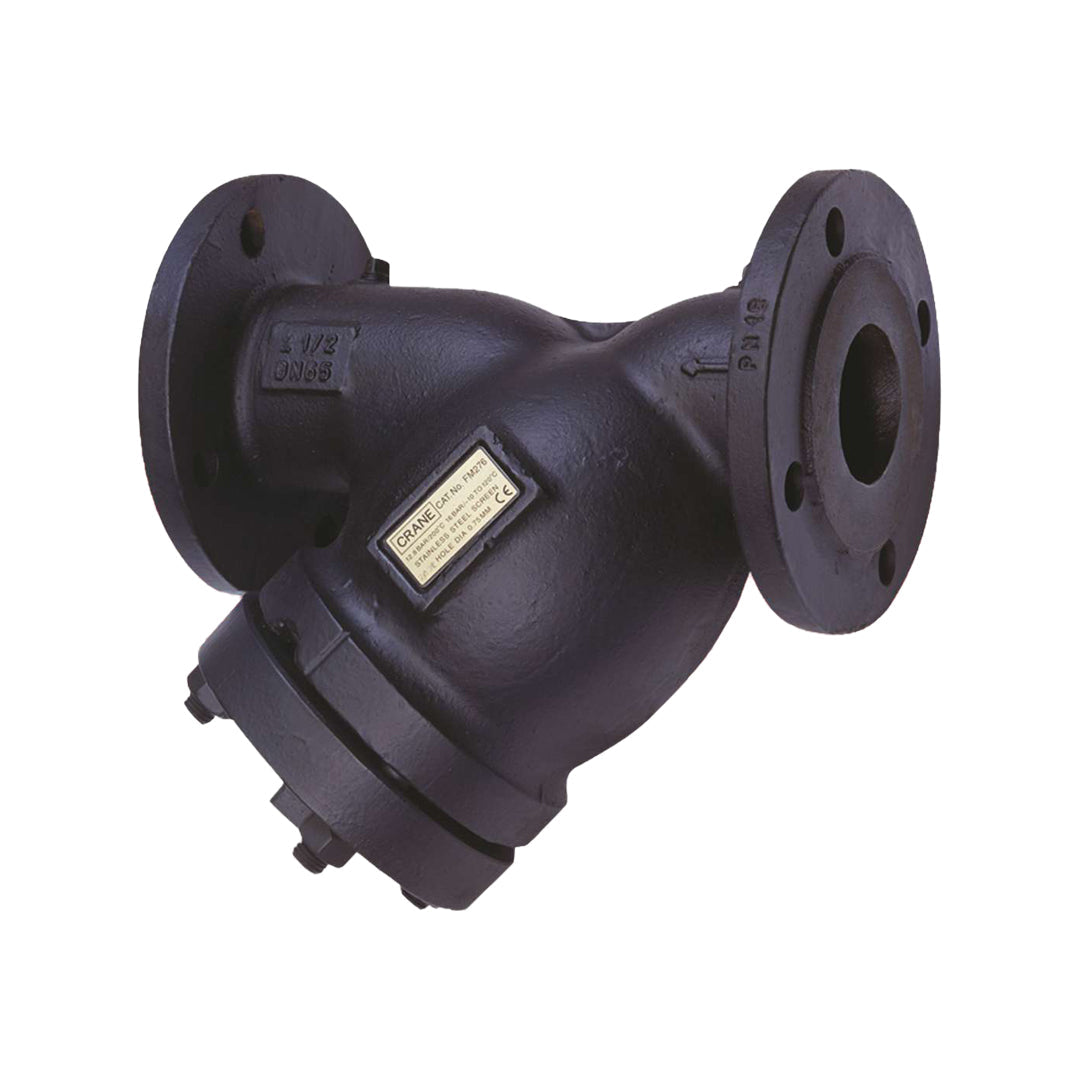

Y-Strainer Crane 10" Cast Iron, Y-Pattern, SS Screen, Model FM276 Class PN16 (232 Psi)

Y-Strainer Crane 10" Cast Iron, Y-Pattern, SS Screen, Model FM276 Class PN16 (232 Psi)

51,205.00 ฿
51,205.00 ฿
Sale Sold out

Crane

รายละเอียด Y-Strainer Crane 10" Cast Iron, Y-Pattern, SS Screen, Model FM276 Class PN16 (232 Psi)

  • Scale and dirt in piping systems cause endless problems and often cause serious damage to piping equipment.
  • Installing a Crane Strainer will eliminate problems caused by foreign matter inside the piping system.
  • The FM276 offers the manufacturing integrity, quality and reliability that are hallmarks of all crane products.
  • The lid is tapped and plugged to drain water.
  • stainless steel filter element
View full details
Y-Strainer Crane 10 นิ้ว Cast Iron, Y-Pattern, SS Screen, Model FM276 Class PN16 (232 Psi)

Materials

Part Material Size
Body Ductile Iron A536 65-45-12 (EN-GJS-450-10) 350-500
Body Ductile Iron BS EN 1563 (EN-GJS-500-7) 600
Cap Ductile Iron A536 65-45-12 (EN-GJS-450-10) 350-500
Cap Ductile Iron BS EN 1563 (EN-GJS-500-7) 600
Gasket Asbestos Free All
Screen Stainless Steel AISI Type 304 All
Drain Plug Malleable Iron All
Test Point Plug Rc 1/4 Malleable Iron All
Nuts Steel Grade 8 350-300
Bolts Carbon Steel Grade 4.6 350-500
Bolts Carbon Steel Grade 4.8 600

Dimensions & Weights

Size(inch) Weight(kg) A(mm) B(mm) C(mm) D(Rc) kV
350 328 848 680 1015 2" 3018
400 452 984 765 1135 2" 4138
450 627 1105 845 1250 2" 5233
500 751 1257 997 1605 2" 6810
600 1080 1450 1160 1655 2" 8180
