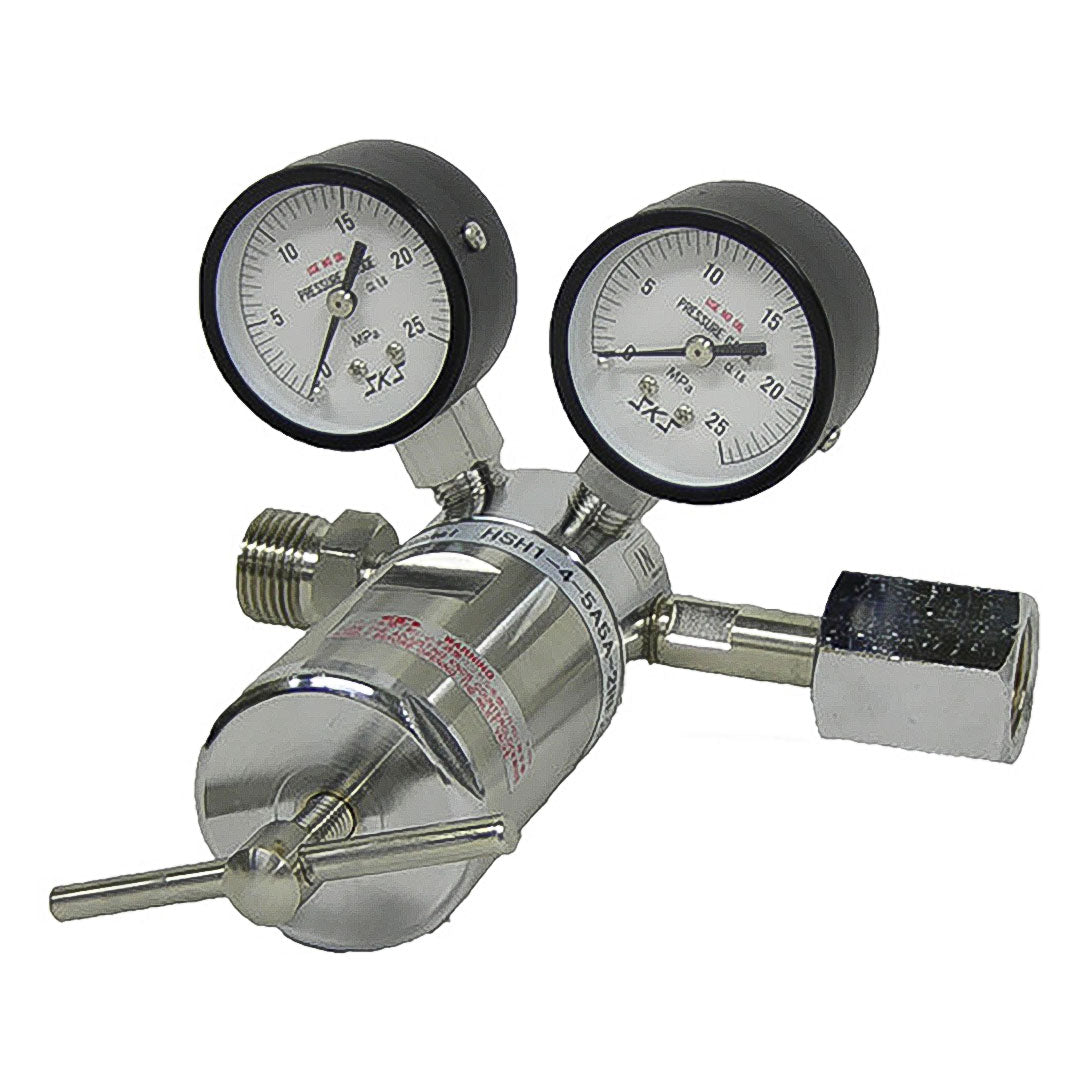

Pressure Regulator Yutaka Crown high pressure regulator, stainless steel, product code HSH1-4-5A5A-2RF4TF-V N2

feature

• This product is compatible with 30MPa H series cylinders (high regulator) and has been developed with a requirement for a supply pressure of 20MPa or less.
• This device is ideal for checking pressure resistance and air tightness.

Product specifications

• Fluid: Nitrogen
• Main side working pressure (MPa): 14.8
• Secondary side working pressure (MPa): 14.8
• Inlet connection: W22-14 cap nut (right)
• Outlet connection: Rc1/4
• Standard flow rate (liters/minute): none
• High pressure side pressure gauge: 25MPa gauge
• Inlet pressure (MPa): 14.8 or less
• Low pressure side pressure gauge: 25MPa gauge
• Outlet pressure (MPa): 14.8 or less
• Mass/unit mass: 2.1kg
