• PLC OMRON NX1P29024DT1
1 1

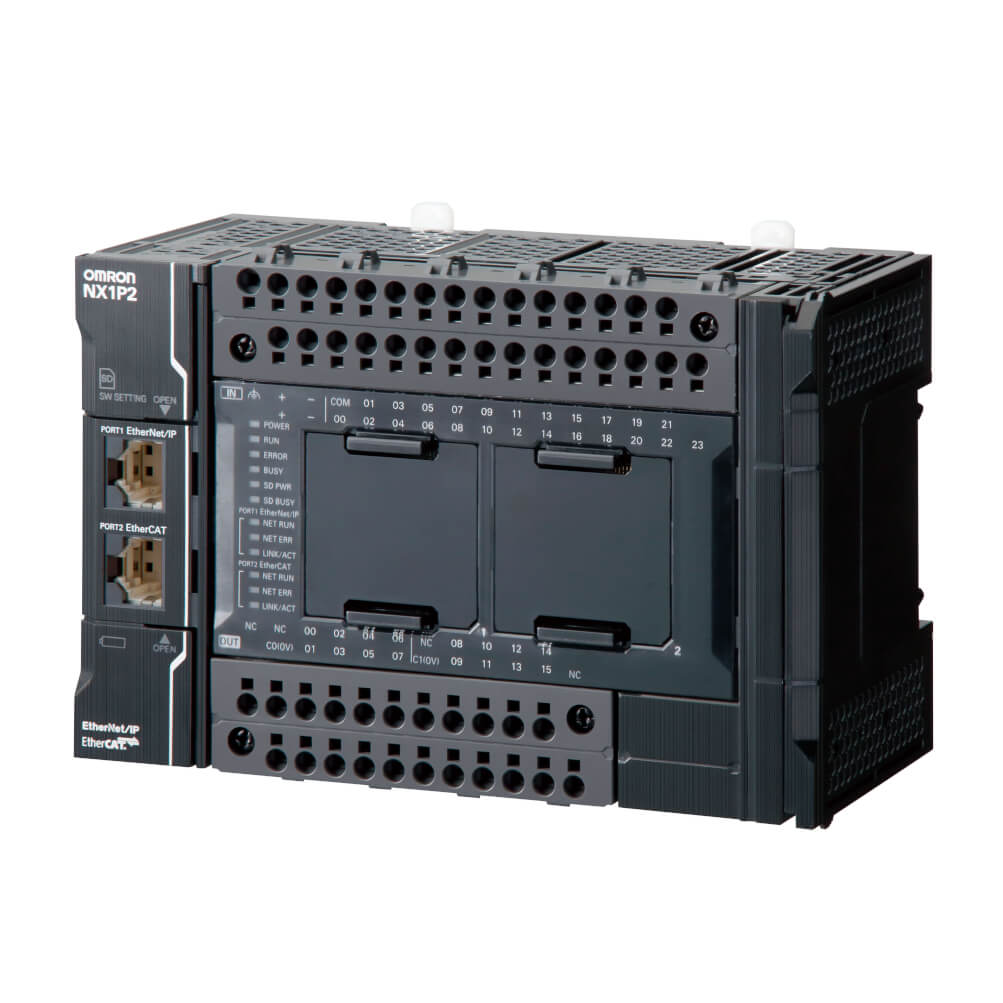

PLC OMRON NX1P29024DT1

PLC OMRON NX1P29024DT1

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

OMRON

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
42,185.00 ฿
42,185.00 ฿
Sale Sold out

รายละเอียด PLC OMRON NX1P29024DT1

NX1P2 CPU Units

Professional range of NX1P2 CPU Units from NX series range from Omron. These Compact but power CPU units provide synchronised control of all machine devices such as motion, I/O, safety and vision under one integrated development environment. All CPU units are reliable and excellent quality.

Features & Benefits

Fastest cycle time: 2 ms
Functions: Logic sequence and Motion control
Up to 8 axes (4 synchronized axes)
Built-in I/O: 40 or 24 I/O points
Up to 8 local NX I/O units
Built-in EtherCAT and EtherNet/IP ports
Up to 16 EtherCAT slaves
Up to 2 option boards can be connected to add serial communications or analog I/O functionality
Omron NX Series

Specifications

คุณสมบัติ Value
Manufacturer Series NX1P
Number of Inputs 14
Output Type PNP
For Use With NX Series EtherCAT Coupler
Input Type DC
Voltage Category 24 V dc
Number of Outputs 16
Network Type EtherCAT, EtherNet/IP
Width 71mm
Length 126.1mm
Minimum Operating Temperature 0°C
Communication Port Type Ethernet, RJ45
Memory 1.5 (Programme) MB, 32 (Memory) kB
Programming Interface Computer
Depth 100mm
Program Capacity 1.5 MB
Dimensions 126.1 x 71 x 100 mm
Number of Communication Ports 2
Battery Backup Yes
Programming Language Used Ladder Logic
Mounting Type Panel Mount
Standards Met ANSI/ISA 12.12.01, EN 61131-2, UL 61010-2-201
Maximum Operating Temperature +55°C
