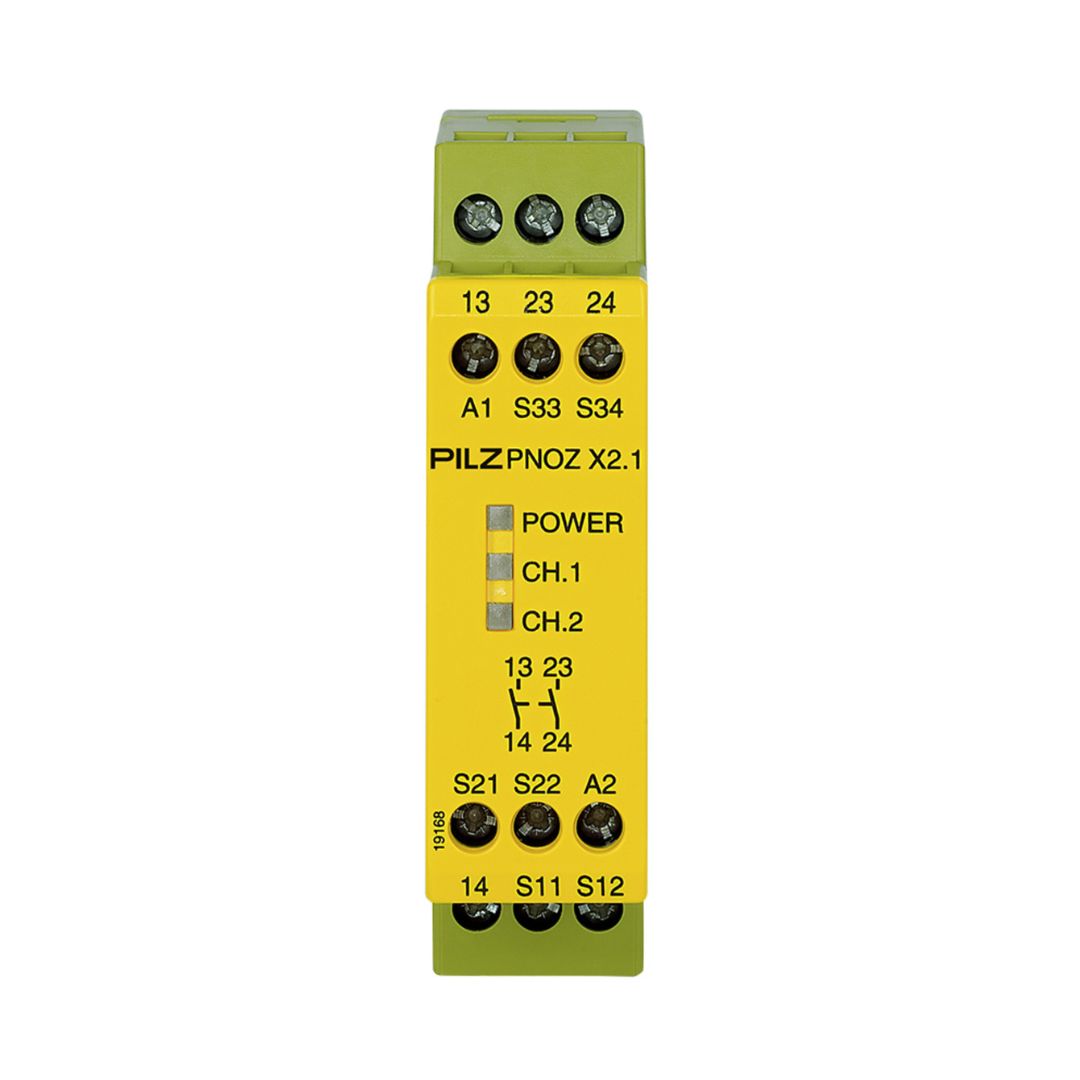

Safety Relay Pilz PNOZ X2.1 24VAC/DC 2n/o Code774306

Technical Data Sheets :

PILZ PNOZ X1 Safety Relay, Dual Channel

• The PNOZ X1 series from PILZ is a reliable and affordable safety relay that will give you the confidence to run your safety circuits in a safe manner.

Features and benefits

• LED indicator for switching your channel status from 1 to 2 and also to monitor your supply voltage
• Several connection options are available for ESTOP pushbuttons, Safety gates & reset buttons.
  Single or Dual channel input operation (Single channel are used more beneficially with smaller
  type machines where you need to use a dedicated logic device that only has a small function to
  cut off in an emergency – Dual allows you to take control of more safety circuits and control a
  greater amount of control zones at any given time)
• Suitable for DIN rail mounting
• Durable and has an extended service life vs. competitors
• The safety function will remain effective in the case of a component failure
• This unit has an electronic fuse.
• The correct opening and closing of your safety function relays is tested automatically in each of the on/off cycles.

Safety features

• The circuit is redundant with built in self-monitoring.

Applications

• Emergency stop buttons
• Safety curtains

Technical safety parameters

• EN 60204-1
• EN 954-1
• EN ISO 13849-1
• IEC 61511 – SIL 3

Standards

• EN 60947-5-1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1.

Approvals

• CE, cULus Listed, TÜV, KOSHA, CCC.

Features / Specifications
