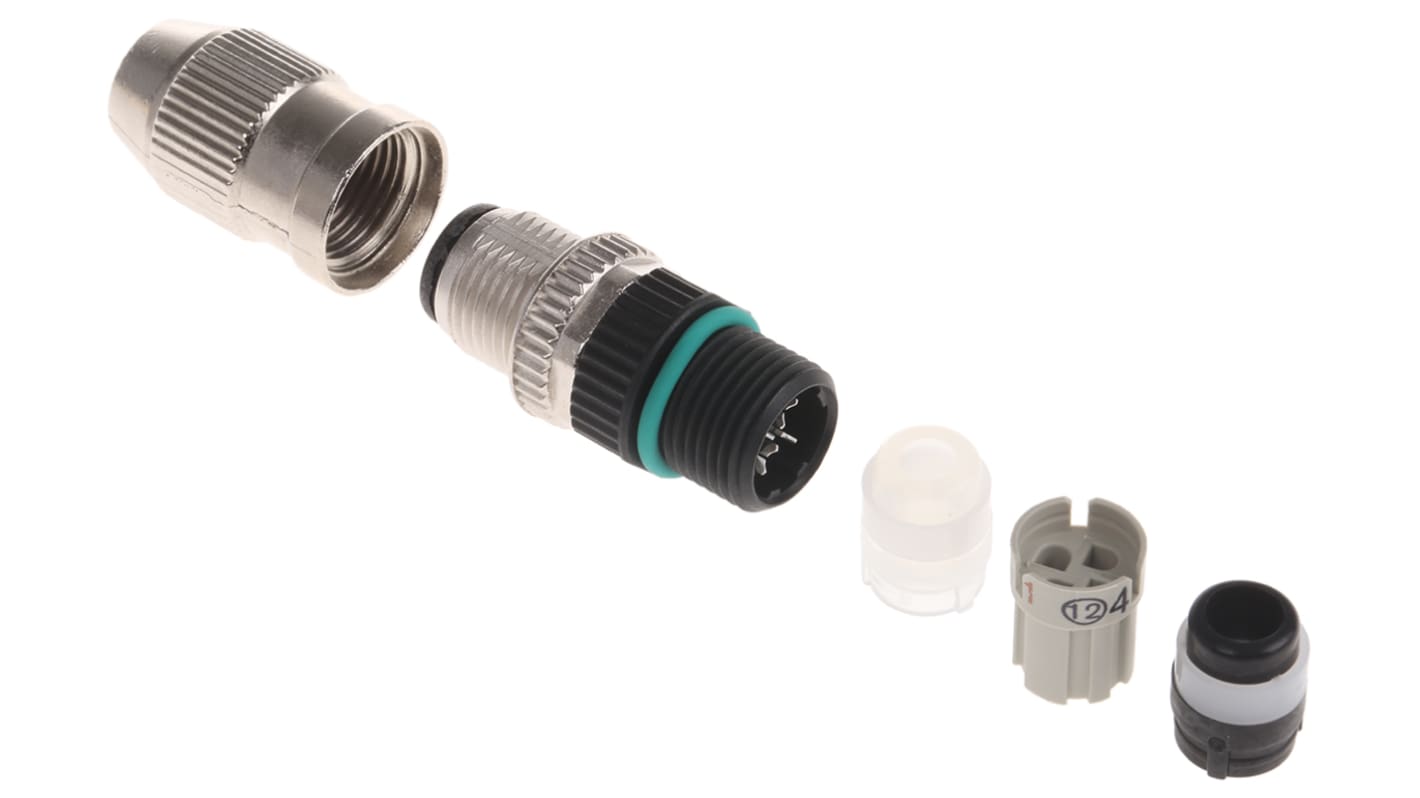

Murrelektronik Circular Connector Code 7000-13561-9720050

The Murrelektronik Limited 7000 series 5-contact M12 female bulkhead cable connector has a socket in-line connection. This flange mount connector has a voltage rating of 125VAC/DC and a current rating of up to 4A per contact. This connector features a plug-in mating with a threaded locking mechanism for an easy and secure connection. Its housing is constructed from impact-resistant plastic with A coding and TPE wires at 0.5 meters in length. The 5-wire version connector (brown, white, blue, black, grey) attached wire is multi-stranded of 0.34mm², with PP insulation.
Murrelektronik sensor-Actuator cable assemblies and connectors
A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, Fieldbus connector cable assemblies, couplers and tooling from Murrelektronik.

Straight body orientation
Screw termination
Easy mating and unmating
Operating temperature ranging between -40°C and 80°C
Outer cable diameter is 1.25mm
Unshielded

Machine tools
Manufacturing
Metal cutting
Production lines

EN60529
IP67 rated
