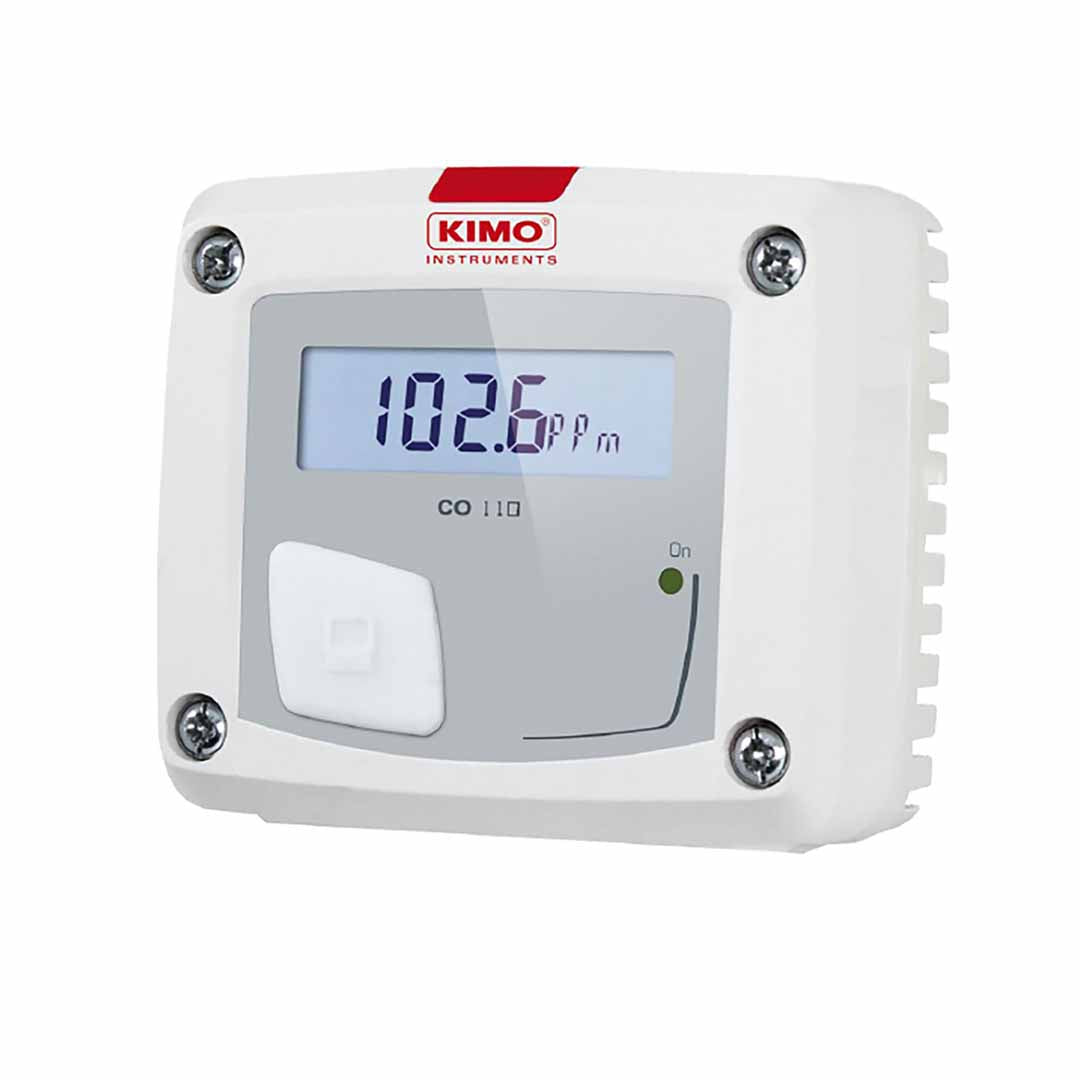

KIMO model CO110 Transmitter, carbon monoxide measuring device and transmitter.

The KIMO CO110 Carbon Monoxide Meter and Transmitter is a portable toxic gas meter designed to detect and measure carbon monoxide (CO) in the surrounding air. Suitable for use in a variety of locations such as homes, commercial buildings, and industrial locations.

Important information because

• Measuring range 0 to 500 ppm
• Accuracy: ±3 ppm or 3% of measured value
• Resolution value 0.1 ppm
• The sensor type is an electrochemical cell. Long service life of 5 years
• Can output a signal of 0-10 V or 4-20 mA.
• The machine is made of ABS material with a water and dust protection level of IP65 (depending on the model).
• There is a numeric display screen.
• The screen is a 10 digit LCD, screen size 50 x 17 mm, number size 10 mm, measurement unit size 5 mm.
• Equipment for wall installation is included in the set.
• Easy, convenient and fast installation

Usage

• Turn on the meter and let it heat up.
• Hold the meter near the suspected CO source.
• Read CO values ​​on the LCD screen.
• If the CO value exceeds the safe limit An alarm will sound.

Precautions

• This meter is not waterproof.
• Do not use this meter in areas where other gases are present.
• Check and calibrate this meter regularly.
