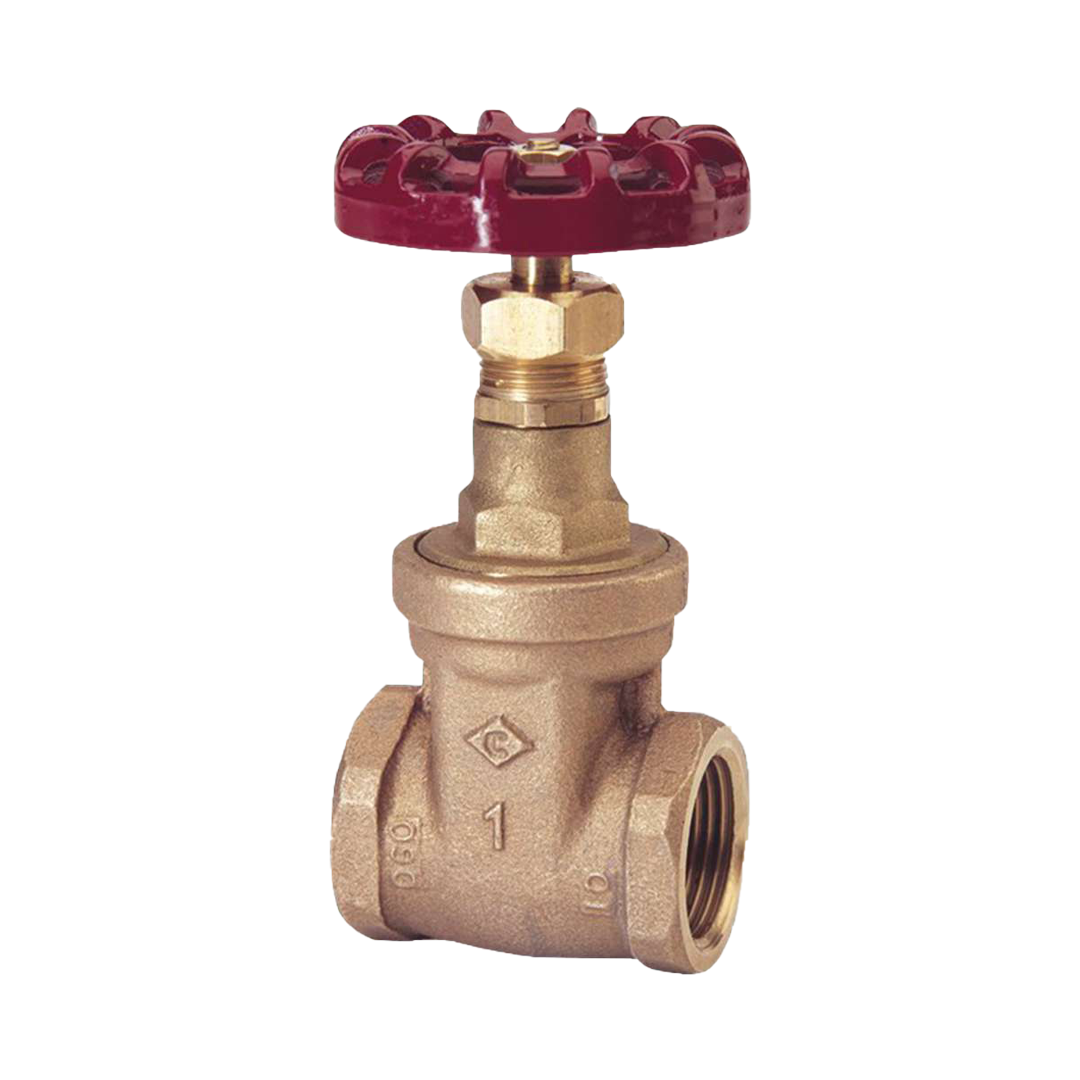

Gate Valve Crane 3/4 Inch Bronze Model D151X Class PN25

Gate Valve Crane 3/4 Inch Bronze Model D151X Class PN25

1,037.40 ฿
1,037.40 ฿
Sale Sold out

Crane

รายละเอียด Gate Valve Crane 3/4 Inch Bronze Model D151X Class PN25

It is a brass lever valve manufactured by Crane. This valve is made of brass. It is a corrosion resistant and durable material used as a valve used to control the flow of liquids in pipe systems. This type of valve works by raising or lowering a gate plate to close or open the flow of fluid. They are commonly used in water, wastewater and irrigation applications. They can also be used in other industrial applications such as chemical processing and power generation.

Important information because

  • Size: 1/2" to 2" Size: 1/2" to 2"
  • Pressure: PN25
  • Temperature: Max 120 degrees Celsius
  • Material: Brass
  • Rod type: Lifting rod

Features

  • Strong and durable
  • Corrosion resistant
  • Easy to use
  • It is inexpensive.

Usage and advantages

  • Valve Size: Valves must be appropriately sized for the required fluid flow.
  • Pressure: The valve must be able to withstand the required fluid pressure.
  • Temperature: The valve must be able to withstand the required fluid temperature.
  • Material: The material of the valve must be suitable for the fluid being used.
View full details
Gate Valve Crane 3/4 นิ้ว Bronze Model D151X Class PN25

Materials

Part Material Specification Size
Body Bronze BS EN 1982 (CC491K) ALL
Bonnet Bronze BS EN 1982 (CC491K) ALL
Stem DZR Brass BS EN 12164 CW602N ALL
Disc Bronze BS EN 1982 (CC491K) ALL
Stem Retainer DZR Brass BS EN 12164 CW602N 1/2 - 2
Stuffing Box DZR Brass BS EN 12164 CW602N 1/4 - 3/8, 21/2 - 3
Packing Ring PTFE - ALL
Packing Nut Brass BS EN 12164 CW614N ALL
Packing Gland Brass BS EN 12164 CW614N 1/4 - 3/8, 1 - 3
Handwheel Aluminium - ALL
Identification Plate Aluminium - ALL
Handwheel Nut Brass BS EN 12164 CW614N ALL
Gasket Asbestos Free - 3

Dimensions & Weights

SIZE(mm) A(mm) B(mm) C(mm) D(mm) WEIGHT(Kg) KV
1/4 46 75 45 86.7 0.27 -
3/8 46 75 45 86.7 0.26 -
1/2 50 78 52.3 93 0.27 21
3/4 54 84 60 103 0.38 39
1 62 105 65 127 0.59 66
11/4 71 111 70 139 0.89 116
11/2 77.5 130 78 163 1.31 162
2 87.5 153 92 193 2.09 281
21/2 106 235 103 286.2 5.62 411
3 113 251 121 310.3 7.89 635
