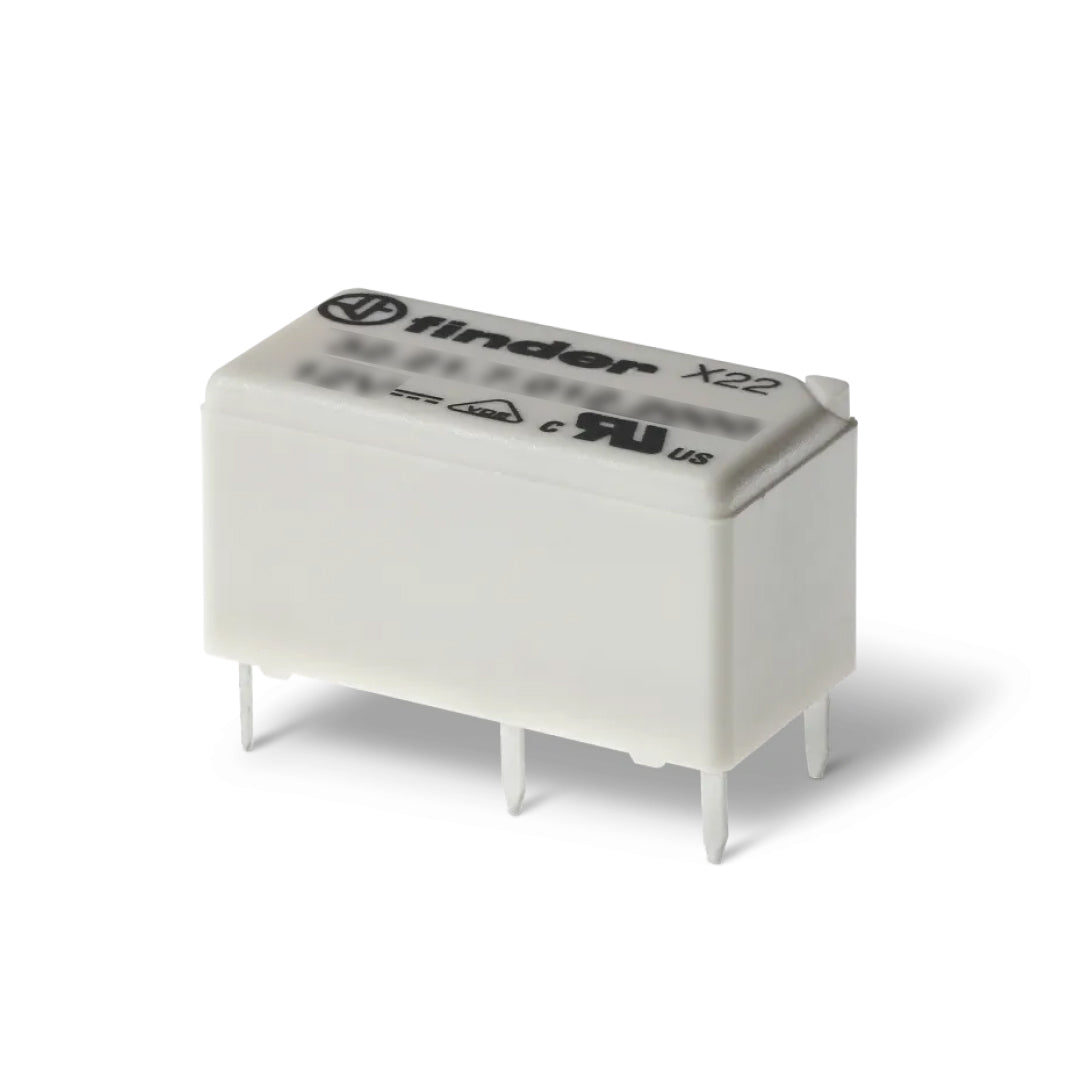

Finder 322170054000 relay, 5 V dc, 250 V ac
Finder 322170054000 relay, 5 V dc, 250 V ac
Regular price
220.00 ฿
Regular price
Sale price
220.00 ฿
Unit price
/
per
FINDER
กรุณาตรวจสอบสต็อกก่อนชำระเงินรายละเอียด Finder 322170054000 relay, 5 V dc, 250 V ac
Product details / Product Details
Ultra-small PCB relay 1 CO or 1NO 6A with sensitive DC coil
Technical features:
Ambient temperature range | -40 ... 85 °C |
Contact configuration | 1 terminal, CO (nPDT) |
size | 10x10.7x20 mm. |
Electrical life | 50000 cycles |
Coil/contact insulation | 5 kV |
Nominal dc voltage | 5V |
dc working range | 3.9 ... 7.5 V |
Voltage at rated contacts | 250 V AC |
Rated current (contact) | 6 A |
dc power rating | 0.2 W |
power source | DC sensitive coil |
Technical description | Miniature PCB relay, PCB mounting, 1 pole, CO (nPDT), 6 A, AgSnO2, DC sensitive coil, 5 V, operating from 3.9 to 7.5 V, rated power 0.2 W, resistance 125 Ω, power consumption 40 mA, hold voltage 2 V, cut-off voltage 0.5 V, version |
