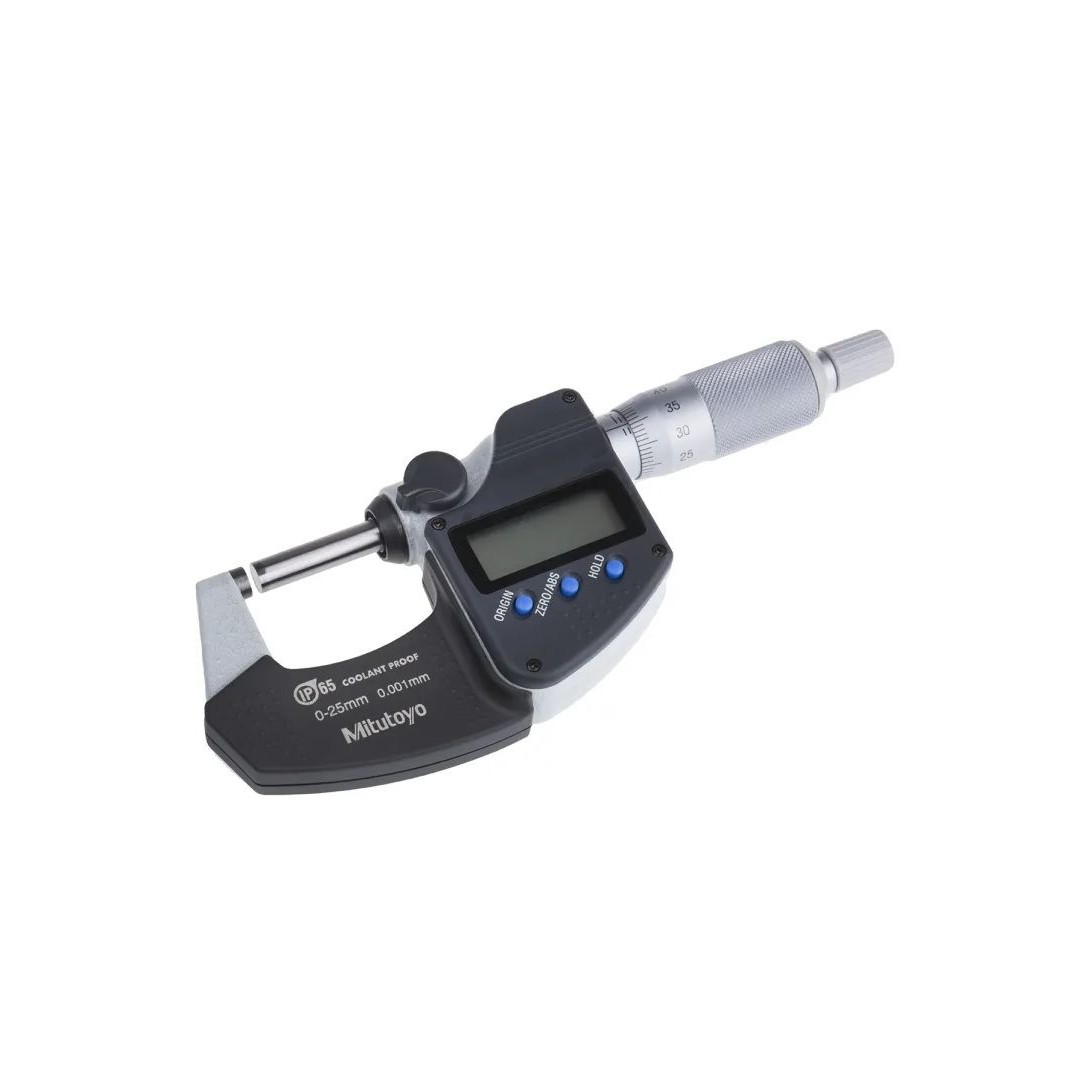

• ไมโครมิเตอร์ Mitutoyo 293-240-30 External Micrometer, Range 0 mm →25 mm Code 293-240-30
1 1

Micrometer Mitutoyo 293-240-30 Range 0 mm-25 mm

Micrometer Mitutoyo 293-240-30 Range 0 mm-25 mm

11,190.97 ฿
11,190.97 ฿
Sale Sold out

MITUTOYO

รายละเอียด Micrometer Mitutoyo 293-240-30 Range 0 mm-25 mm

size

  • L : 0 mm
  • a : 6.5 mm
  • b : 25 mm
  • c : 2.5 mm

feature

Properties (Khun-sam-pat) Details (Rai-la-daet)
Digital/Analog (Digital/Analog) Digital
Inch/Metric (Inch/Metric) Metric
Measuring range (Phi-sai kan wat) 0 - 25 mm. (0 - 25 mm)
Digital resolution (Khwam kheun-klad di-gi-tan) 0.001 mm (0.001 mm)
Maximum allowable tolerance (Khaa khwam khat-khlon sungthut thi yom-rap dai) ±1 µm
Accuracy (Khwam maen-yam) ±1 µm
Smoothness (Khwam rap-riap) 0.3 µm
Parallelism (Khwam khon-nan) 1 µm
Send data (Song data) Yes (Chai)
Display screen (Na jao sap-daeng phon) LCD, character size 7.5 mm (LCD, dam-nan tua-ak-son 7.5 mm)
Measuring axis (Kaen wat) With lock axis, Ø6.35 mm., axis pressing distance 0.5 mm. (Prom lok kaen, Ø6.35 mm, raya kot kaen 0.5 mm)
Scale (San ken) Satin chrome coated sleeve and barrel, Ø18 mm (Plok lae kra-bong klueap satin krom, Ø18 mm)
Energy source (Plaeng phan-ngahn) 1 SR-44 battery (Baet teri SR-44 1 gon)
Battery life (A-yu kar battery use) Approximately 2.4 years (Pra-maun 2.4 pee)
Equipment that comes with it (U-pa-kon maa dtooai) Box, key, 1 battery, gauge block (from 25 mm and up), max. measuring range 50 mm, with factory certificate (Glong, kun-jae, baet teri 1 gon, blok khet (tang tae 25 mm kheen pai), sung sutmeasuring range 50 mm prom bai rap-rong jak rong ngan)
ABS / INC system (INC ZERO) Yes (Chai)
Automatic shutdown after 20 minutes of inactivity (Automatic shutdown after 20 minutes of inactivity) Yes (Chai)
Lock function (Lot fung-chan) Yes (Chai)
HOLD function (Fung-chan HOLD) Yes (Chai)
Weight (nam-nang) 270 grams (270 gram)
