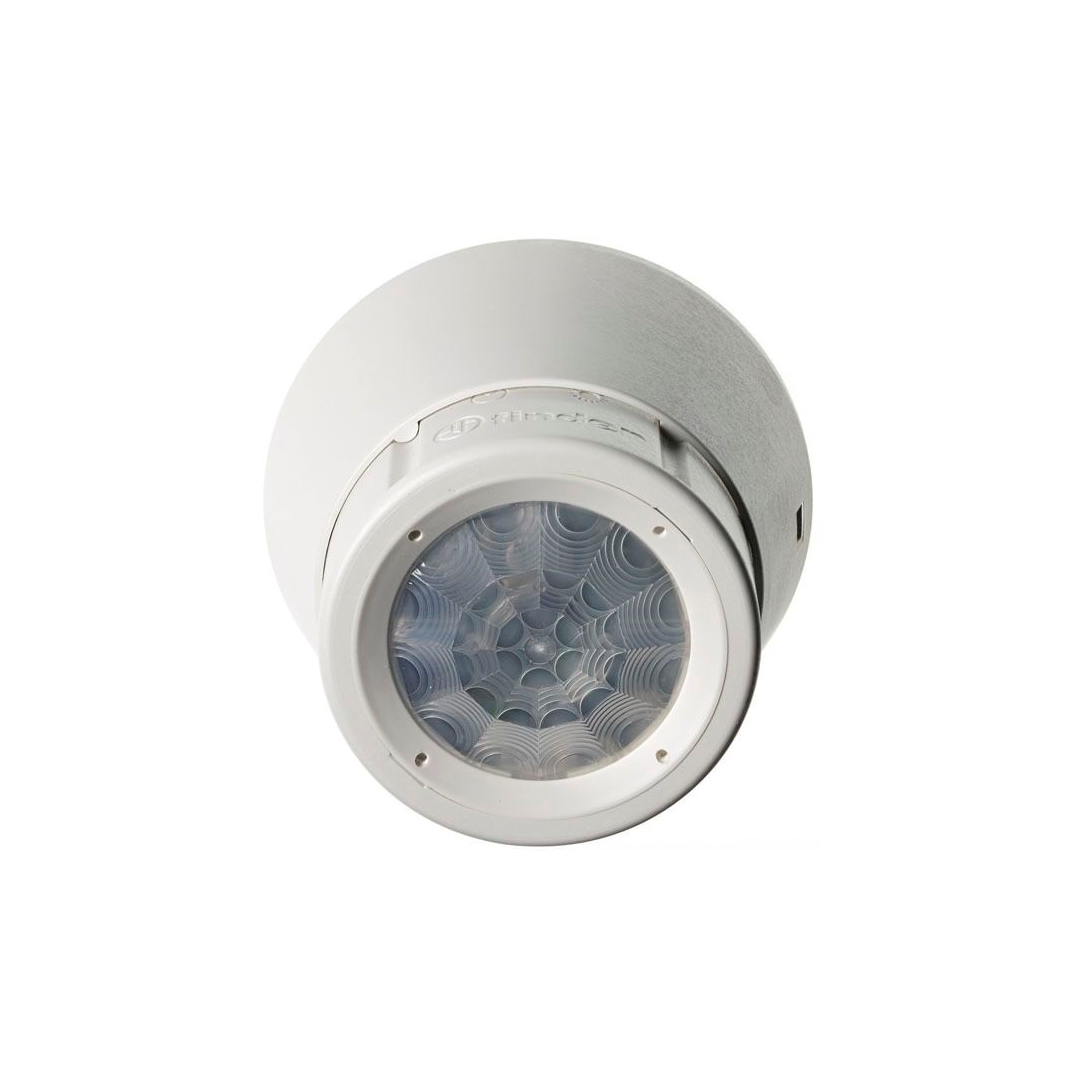

Motion Sensor Pir Motion Sensor, 10a Code. 185D82300000

Product details / Product Details

DALI motion and presence sensors with DALI interface are designed for use in hotel corridors, offices, and other less-occupied areas. The sensor is suitable for direct control of up to 8 DALI power supplies, covering an area up to 64 square meters wide. The sensor has two detection areas: a presence detection area Suitable for areas with few users. and motion detection areas such as corridors or areas with a lot of activity.

Technical features:

• Can be managed through the app: No
• Size: 84x35.1x84 mm.
• Finder Series: Motion and Presence Detector 10 A
• Protection type: IP 40
• Power supply model: AC power supply model
• Technical Description: Motion and Presence Detector, Motion and Presence Detector with DALI Broadcast interface, Programming: Standard, Contact circuit: Voltage output, AC power supply version, Nominal voltage 230 V, Operates from 96 to 253 V, Power rating 1.5 VA, Temperature Ambient -10 to +50 °C
• Installation type: Motion and presence detector
