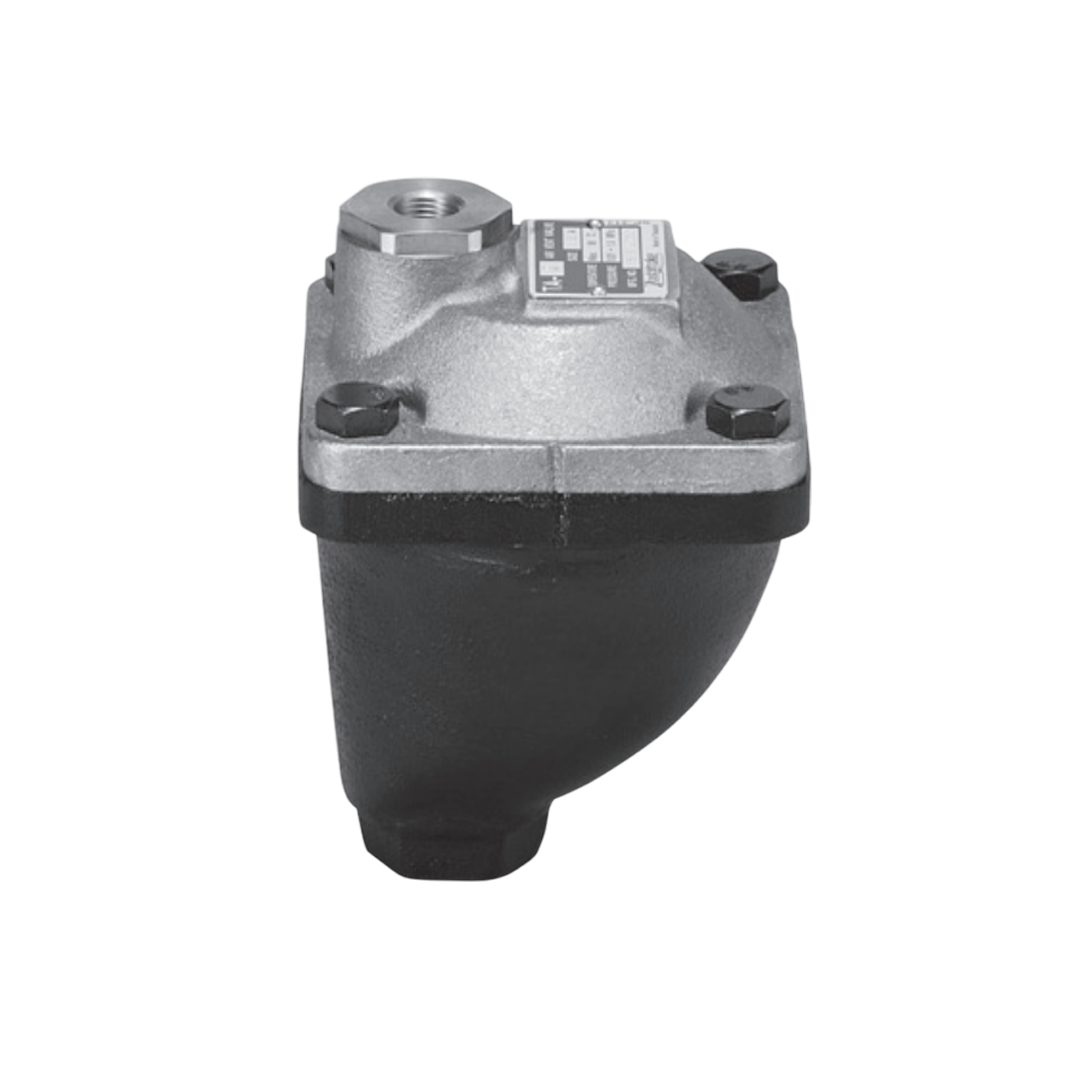

Air Vent Valve Yoshitake 3/4 inch 20A,TA-2,air vent valve

Air Vent Valve Yoshitake 3/4 inch 20A,TA-2,air vent valve

6,359.39 ฿
6,359.39 ฿
Sale Sold out

YOSHITAKE

รายละเอียด Air Vent Valve Yoshitake 3/4 inch 20A,TA-2,air vent valve

Features

  • Equipped with a quick exhaust mechanism, air inside piping can be quickly discharged at the time of initial water supply, ensuring smooth water supply.
  • No leakage from the valve due to synthetic rubber is used for valve seat.
Chain sprocket with KANA hub, size 40

Dimensions (mm) and Weights (kg)

Nominal size d d1 H C Weight
15A Rc 1/2 Rc 3/8 153 114 3.18
20A Rc 3/4 Rc 3/8 153 114 3.18
25A Rc 1 Rc 3/8 157 114 3.22
32A Rc 1-1/4 Rc 3/8 157 114 3.22

Specifications

Model TA-2
Application Application Cold and hot water, Oil (specific gravity: 0.8 or more)
Working pressure 0.01-1.0 MPa
Maximum temperature 90°C
Operating pressure range of quick exhaust valve 0.01 MPa or less
Material Body : Ductile cast iron (FCD450)
Cover : Bronze
Valve : Brass
Sub valve : Brass (equipped with NBR disc)
Float : Stainless steel
Connection JIS Rc screwed
  • The body of the TA-2 is electrodeposition-coated for rustproofing.
