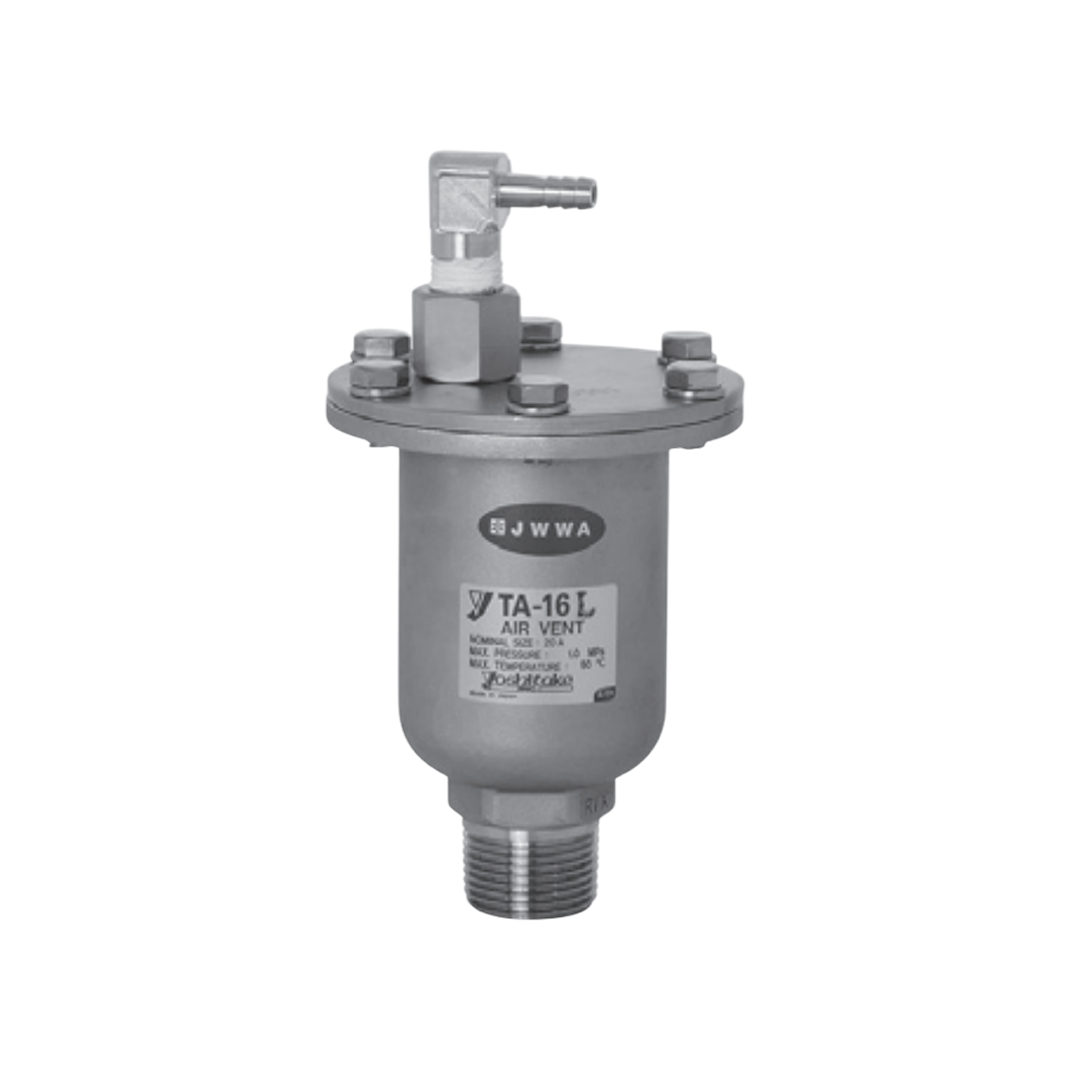

Air Vent Valve Yoshitake 1 inch 25A,TA-16L,air vent valve
Air Vent Valve Yoshitake 1 inch 25A,TA-16L,air vent valve
Regular price
4,242.61 ฿
Regular price
Sale price
4,242.61 ฿
Unit price
/
per
YOSHITAKE
รายละเอียด Air Vent Valve Yoshitake 1 inch 25A,TA-16L,air vent valve
Features
- All parts, except for the valve disc, gasket, L-shaped hose joint (TA-16L), are made of stainless steel, offering high resistance to corrosion and durability.
- Wide working pressure range (0.01 to 1.0 MPa) ensures stable exhaust capacity.
- Can be installed in small space because of compact body.
Dimensions (mm) and Weights (kg)
Nominal size | d | H | Weight |
15A | Rc 1/2 | 660 | 139 |
20A | Rc 3/4 | 120 | 680 |
25A | Rc 1 | 124.5 | 740 |
Specifications
Model | TA-6L |
Application | Cold and hot water |
Working pressure | 0.01-1.0 MPa |
Maximum temperature | 90˚C |
Material | Body, cover : Stainless stee |
Valve disc : FKM | |
Gasket : FKM | |
Float : Stainless steel | |
Connection | Inlet : JIS R (PV common core) |
Outlet : φ6 (Hose bore) |
