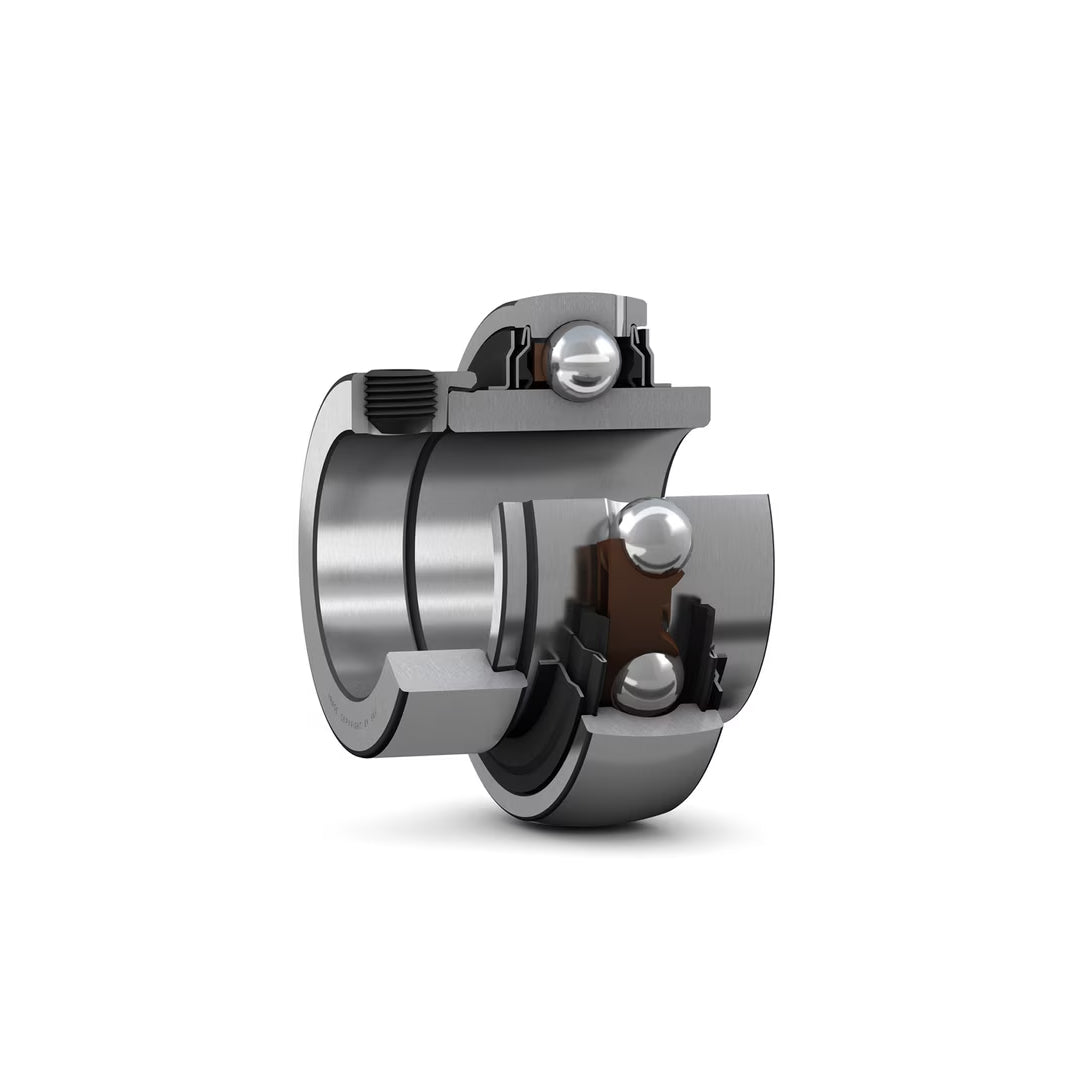

ตลับลูกปืนวาย SKF YAR 211-203-2F

d

55.563 mm

Bore diameter

D

100 mm

Outside diameter

B

55.6 mm

Width inner ring

C

25 mm

Width outer ring

d₁

≈ 69.06 mm

Outer diameter inner ring

B₄

9 mm

Distance face to thread centre

r_1,2

min. 1 mm

Chamfer dimension of inner ring

S₁

33.4 mm

Distance from locking device side face to bearing centre
