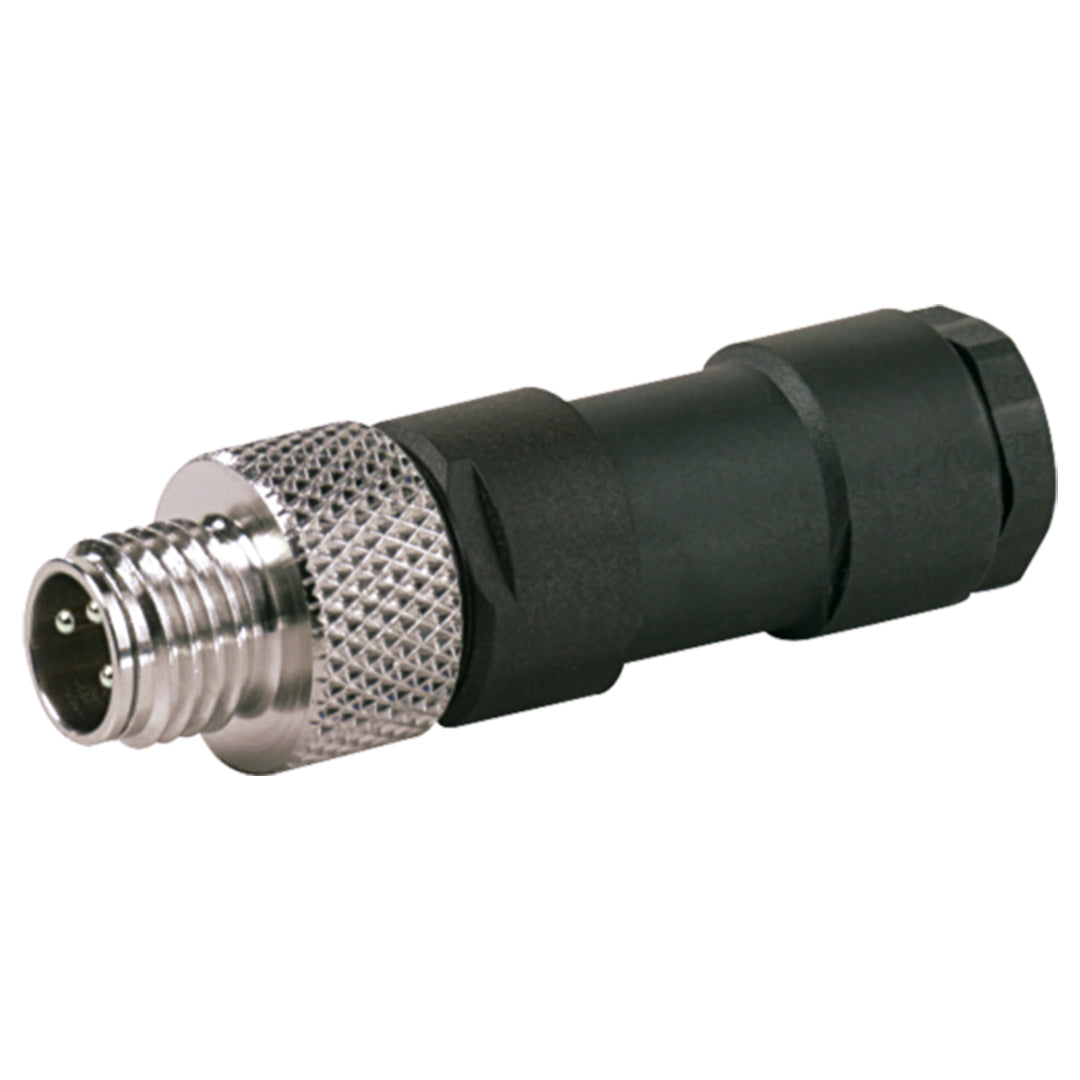

Male Connector Murrelektronik Electrical Connector Code 7000-08421-0000000
Male Connector Murrelektronik Electrical Connector Code 7000-08421-0000000
Regular price
1,716.05 ฿
Regular price
Sale price
1,716.05 ฿
Unit price
/
per
Murr
รายละเอียด Male Connector Murrelektronik Electrical Connector Code 7000-08421-0000000
One type of electrical connector Produced by the company Murrelektronik From Germany, this type of connector is a female connector, the connector end is straight. Suitable for connecting electrical wires using the insulation cutting method, which is a quick and easy way to connect electrical wires. Click to inquire
Advantages of this type of connector include:
- Easy to use
- Save money
- Resistant to harsh environments
Usage
- signal cable connection
- Connecting sensors and actuators
- Connecting signal cables between various devices
- Wiring connection from the actuator to the machine
- Connecting the wires from the inductive sensor to the control system
Information required by electrical connectors
weight | 0.038 kg. |
Protection level | IP67 |
Maximum DC operating voltage | 30 volts |
Maximum connection | 0.25 mm² |
Maximum operating current per contact | 4 g. |
Minimum clamping range | 3.5 mm. |
Maximum clamping range | 5 mm. |
height | 45 mm. |
Width | 12 mm. |
Depth | 12 mm. |
Minimum working temperature | -25 degrees Celsius |
Maximum working temperature | 85 degrees Celsius |
Disconnect section | Max 0.25 mm² |
height | 40.8 mm. |
Width | 11.5 mm. |
Depth | 11.5 mm. |
Minimum working temperature | -25 degrees Celsius |
Maximum working temperature | 85 degrees Celsius |
Product standards | Soil EN 61076-2-114 (M8) |
