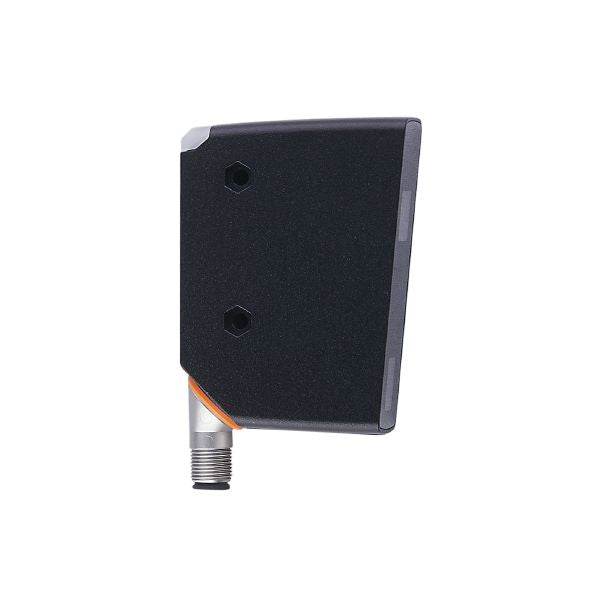

IFM OPD100 profile sensor

PMD Profiler for object profile checking

Inline quality control checks to ensure correct assembly of parts

Quick set-up without software

Distance-independent measurement for high tolerance on object positioning

Immunity to extraneous light – no screening or external illumination required

Type of light	red light
Laser protection class	1

Operating voltage [V]	10...30 DC; ('supply class 2' to cULus)
Current consumption [mA]	< 200; (10 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2
Type of light	red light
Wave length [nm]	650

Trigger	external
Number of digital inputs	1

Electrical design	PNP/NPN; (parameterisable)
Number of digital outputs	2
Output function	2 x normally open / normally closed; (parameterisable)
Max. current load per output [mA]	100
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring distance (Z-direction) [mm]	150...300
Width of the measuring range (X-direction) at min. measuring distance [mm]	45; (distance = 150mm)
Width of the measuring range (X-direction) at max. measuring distance [mm]	90; (distance = 300mm)
Sampling rate [Hz]	5

Measured value resolution	Z-direction 200 µm X-direction 250 µm
Accuracy	Z-direction ± 500 µm X-direction ± 500 µm background white (90 % remission)

Number of profiles which can be stored	1
Number of regions of interest	1

Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.3
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	operating hours counter; number of trigger events; ROI setting
Supported DeviceIDs	Type of operation DeviceID default 1260
Note	For further information please see the IODD PDF file under 'Downloads'

Weight [g]	535.8
Dimensions [mm]	88 x 65 x 28.5
Materials	housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA
