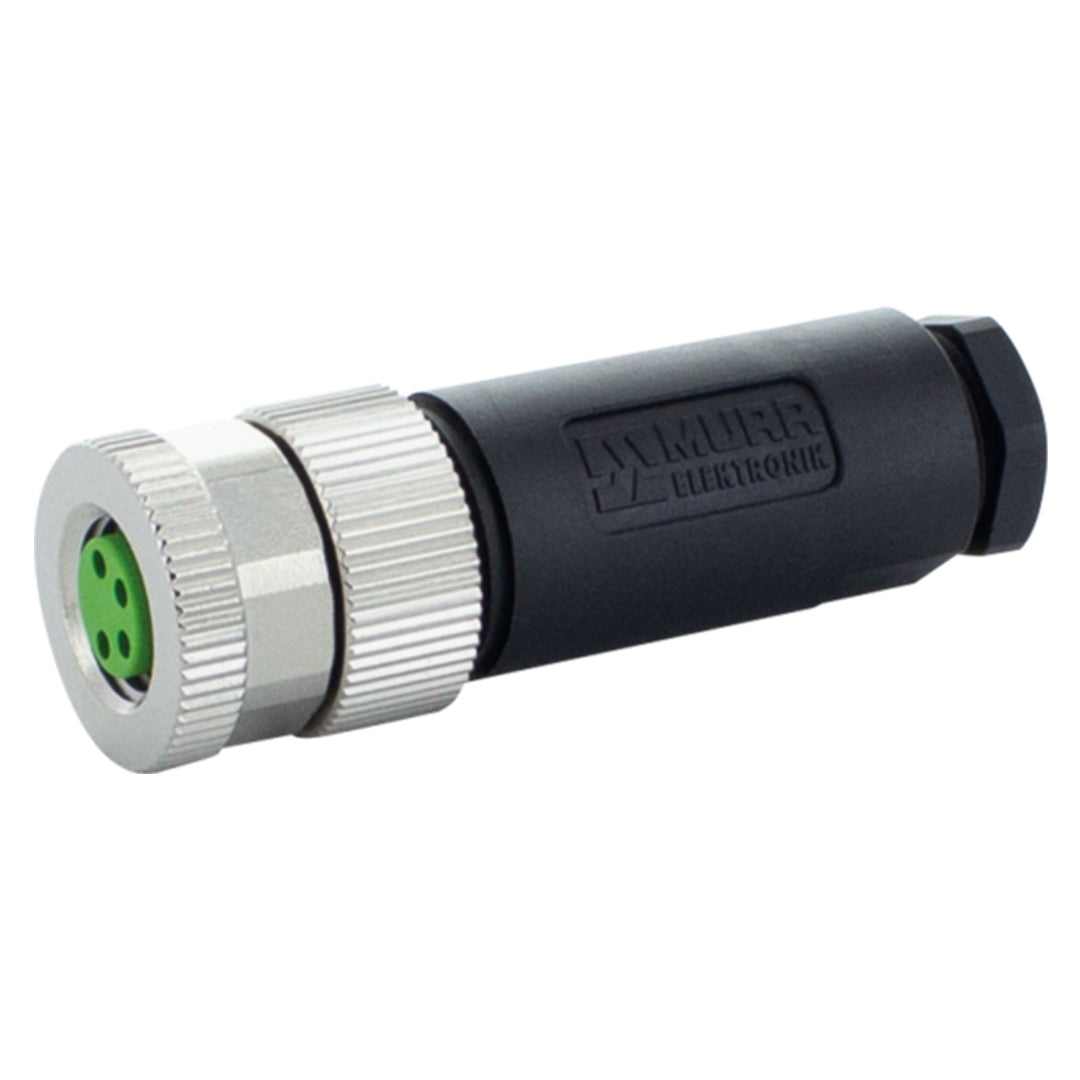

Female Connector Murrelektronik Electrical Connector Code 7000-08631-0000000
Female Connector Murrelektronik Electrical Connector Code 7000-08631-0000000
Regular price
1,998.45 ฿
Regular price
Sale price
1,998.45 ฿
Unit price
/
per
Murr
รายละเอียด Female Connector Murrelektronik Electrical Connector Code 7000-08631-0000000
One type of electrical connector Produced by the company Murrelektronik From Germany, this type of connector is a female connector, the connector end is straight. Suitable for connecting electrical wires using the insulation cutting method, which is a quick and easy way to connect electrical wires. Click to inquire
Advantages of this type of connector include:
- Easy to use
- Save money
- Resistant to harsh environments
Usage
- signal cable connection
- Connecting sensors and actuators
- Connecting signal cables between various devices
- Wiring connection from the actuator to the machine
- Connecting the wires from the inductive sensor to the control system
Information required by electrical connectors
Coating contact | gold plated |
family creation form | Mathayom 8 |
Material contact | brass |
Width across the flat | SW12.5 |
Maximum AC voltage | 50 volts |
Maximum DC operating voltage | 60 volts |
Maximum operating current per contact | 4 g. |
Minimum cross-section connection | 0.14 mm² |
Maximum connection | 0.5 mm² |
connection | SK screw connector |
Rated surge voltage | 1.5 kV |
Minimum insulation resistance | 100 megawatts |
Minimum clamping range | 2.5 mm. |
Maximum clamping range | 5 mm. |
height | 45 mm45 mm. |
Width | 12 mm. |
Depth | 12 mm. |
Minimum working temperature | -40 degrees Celsius |
Maximum working temperature | 85 degrees Celsius |
Additional level of protection against conditions | insert |
