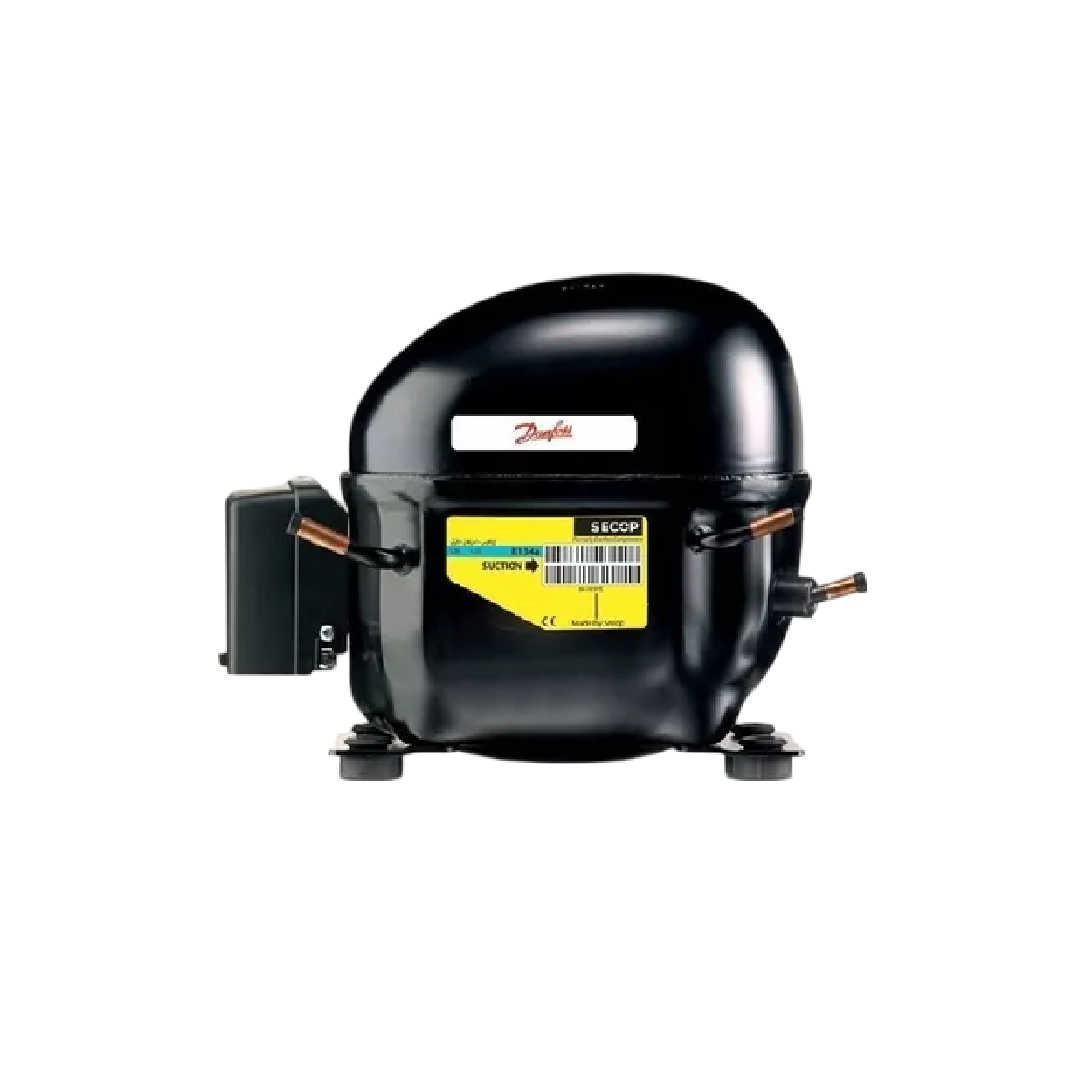

Danfoss SC15G คอมเพรสเซอร์ลูกสูบ V220, 104G8520

Danfoss SC15G คอมเพรสเซอร์ลูกสูบ V220, 104G8520

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

Danfoss

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
10,238.08 ฿
10,238.08 ฿
Sale Sold out

รายละเอียด Danfoss SC15G คอมเพรสเซอร์ลูกสูบ V220, 104G8520

Gross weight 13.2 Kg
Net weight 13.2 Kg
Volume 12.764 Liter
Application energy level Universal
Applications HBP,LBP,MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 13.5
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 13.5
Base plate type Universal
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 16.2 A
Cut in current LST [A] 20.1 A
Description SC15G
Discharge connection angle [°] 37 °
Discharge connection comments Rubber plug
Discharge connection diameter [mm] 6.2 mm
Discharge connection height [mm] 100 mm
Discharge connection material Copper
Economizer No
Family SC
Free gas volume [cm3] 1410 cm³
Frequency [Hz] 50/60
Height from baseplate [mm] 203 mm
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 254 V
High value of voltage range at 60Hz [V] 254 V
In scope of WEEE and contain batteries No
Length [mm] 255 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 198 V
LRA HST 60Hz [A] 16.2 A
LRA HST [A] 16.2 A
LRA LST [A] 15.8 A
Main winding resistance for single-phase compressors [Ohm] 5.1
Model number SC15G
Motor type CSIR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil quantity [cm3] 500 cm³
Oil type POE
Packing format Industrial pack
Packing quantity 80
Phase 1
Process connection angle [°] 37 °
Process connection comments Rubber plug
Process connection diameter [mm] 6.2 mm
Process connection height [mm] 183 mm
Process connection material Copper
Product group Hermetic compressors
Product Name Description Reciprocating compressor SC
REACH Candidate List substances Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max] 1.3 kg
Refrigerants R134a R513A
RLA 3.10 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration LT Refrigeration MT Refrigeration HT
Start capacitor capacitance 80 µF
Suction connection angle [°] 37 °
Suction connection diameter [mm] 10.2 mm
Suction connection height [mm] 183 mm
Suction connection material Copper
Swept volume [cm3] 15.28 cm³
Technology Reciprocating
Total height [mm] 209 mm
Type SC15
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 151 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
