- Check Valve NRV Danfoss 19s, Max. Working Pressure 49 bar Connection 1 1/8 lnch Code 020B1054

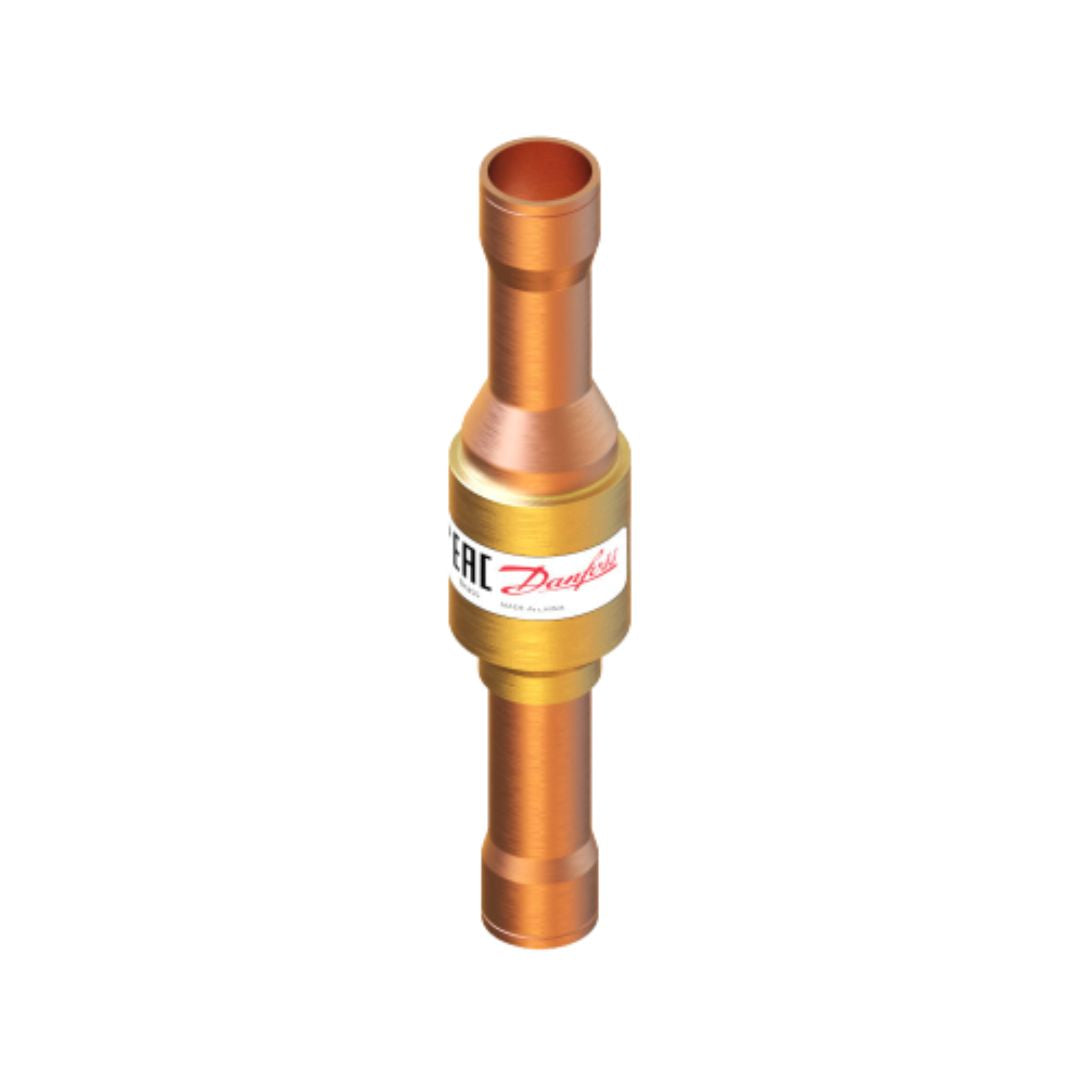

Check Valve NRV Danfoss 19s, Max. Working Pressure 49 bar Connection 1 1/8 lnch Code 020B1054
Check Valve NRV Danfoss 19s, Max. Working Pressure 49 bar Connection 1 1/8 lnch Code 020B1054
Regular price
4,949.30 ฿
Regular price
Sale price
4,949.30 ฿
Unit price
/
per
DANFOSS
รายละเอียด Check Valve NRV Danfoss 19s, Max. Working Pressure 49 bar Connection 1 1/8 lnch Code 020B1054
Product details
Gross weight | 1.388 Kg |
Net weight | 1.258 Kg |
Volume | 3.228 Liters |
EAN | 5702422034643 |
Approval | C UL US LISTED EAC |
Body material | Brass |
Connection material | Copper |
Cv value [gal/min] | 19.07 gal/min |
Design | Piston |
Direction | Angleway |
Flow direction | Single-flow |
Flow direction indicator | Embossed 1-way arrow |
Fluid Group | 1 2 |
Identical product | 020-0126 |
Inlet connection type | Solder, ODF |
Inlet size [in] | 1 1/8 inches |
Kv value [m³/h] | 16.5 m³/h |
Lubricants compatibility | Oilfree applications |
Max. Working Pressure [bar] | 46 bar |
Max. Working Pressure [psig] | 667 psig |
Min. Pressure drop [bar] | 0.04 bar |
Min. Pressure drop [psi] | 0.6 psi |
Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
Outlet connection type | Solder, ODF |
Outlet size [in] | 1 1/8 inches |
Packing format | Multi pack |
PED category | Art. 4, par. 3 |
Product group | Check valves |
Product Name Description | Check valve |
Quantity per packing format | 6pc |
Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a,R22/R407C,R407A,R407F R410A, R448A, R449A, R450A, R452A R513A,R1234ze(E),R404A/R507A R1233zd(E),R1234yf,R1270,R290 R407H, R449B, R452B, R454A, R454B R454C, R455A, R515B, R516A, R600 R600a,R32,R170 |
SCIP dossier no. | b3a34751-5701-488e-98f4-24be945efdc1 |
Temperature range [°C] [max] | 140 °C |
Temperature range [°C] [min] | -50 °C |
Temperature range [°F] [max] | 285 °F |
Temperature range [°F] [min] | -58 °F |
Type | NRV 28s |
UL approval file name | REFRIGERANT VALVE 53R0 |
UL approved refrigerants | R134a, R22, R404A, R407A, R407C R407F, R410A, R448A, R449A, R450A R452A, R507A, R513A, R1233zd(E) R1234yf, R1234ze(E), R1270, R170 R290, R32, R407H, R449BR452B, R454A R454B,R454C,R455A,R515B,R516A R600,R600a |
