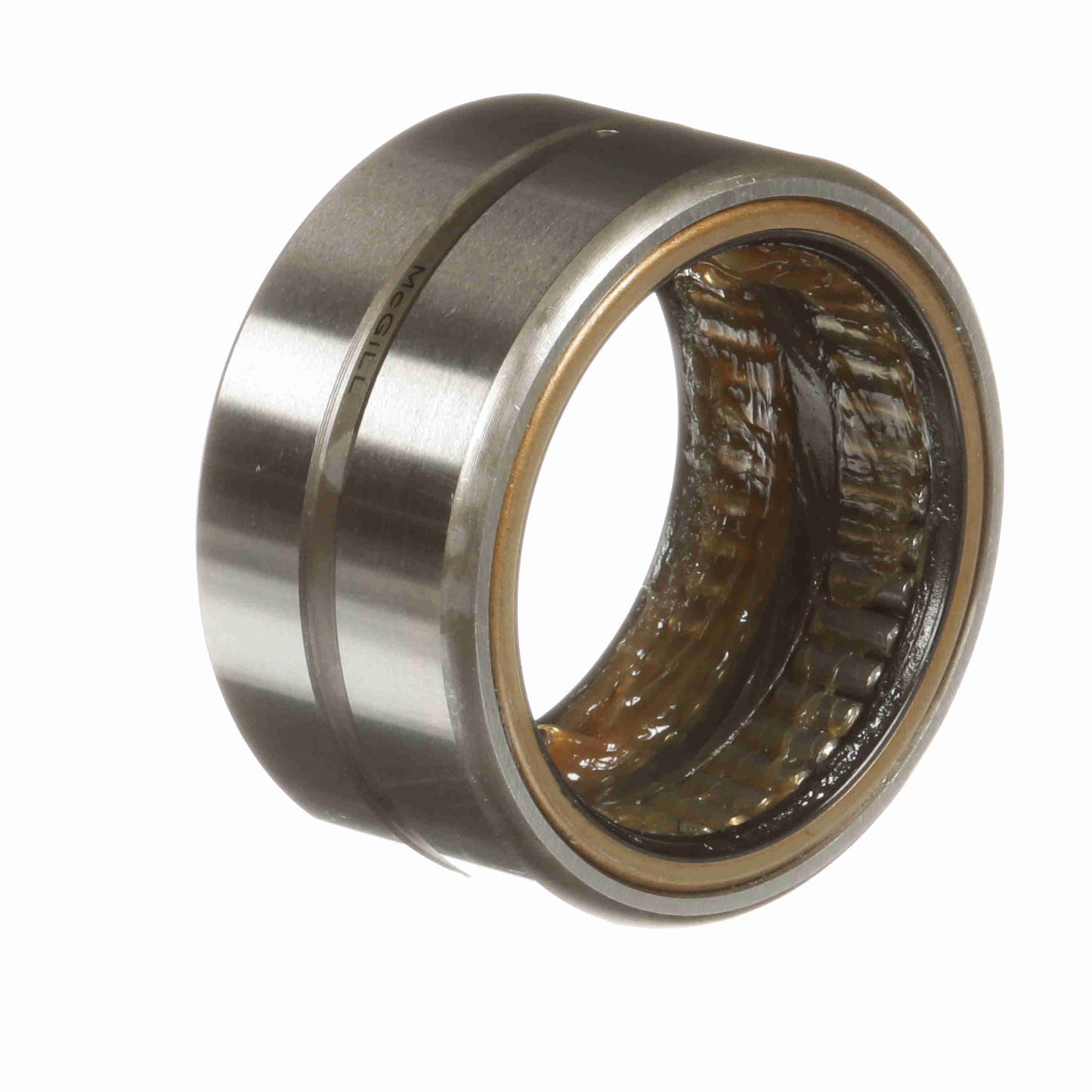

ตลับลูกปืน Mcgill GR 30 SRS

ตลับลูกปืน Mcgill GR 30 SRS

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

McGill

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
8,653.00 ฿
8,653.00 ฿
Sale Sold out

รายละเอียด ตลับลูกปืน Mcgill GR 30 SRS

View full details

รายละเอียด ตลับลูกปืน McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) - Sealed - GR 30 SRS

  • Machined race needle bearing
  • Full complement of center-guided needle rolling elements
  • Annular lubrication groove
  • Double rubber-lipped seals with one lip turned in and one lip turned out

    • General Specifications

    UPC: 726166062354 Weight: 0.55 LB
    Packaged Length: 2.7 Inches Packaged Width: 2.7 Inches
    Packaged Height: 1.4 Inches HTC: 8482.40.0000
    Country of Origin: Mexico

    Dimensions

    Outer Width: 1.25 Outside Diameter - Inch: 2.4375 in
    Hole Diameter: 0.094 Housing & Shaft Fillet (in): 0.06 in
    Bore Size - Inch: 1.8750 in

    Technical Specifications

    Material: 52100 Bearing Steel Includes Inner Ring: No
    Series: Standard Cage Material: No retainer
    Number of Rows: 1 Bore Type: Straight
    Rolling Element: Needle Roller Misalignment: No
    Radial Clearance: Normal Seal Type: Rubber Lip
    Speed (Max) Grease: 2,000 Dynamic Load Rating: 8,150
    Full Complement/Caged: Full Complement Static Load Rating (lb): 25,200 lb
    Duplexing: No Platform: Guiderol Bearing
    Sealed: Sealed - Both Sides Operating Temperature Range: -20 to 250 °F
    Lubrication Hole Type: Lubrication Groove & Hole Flanges: No Flanges
    Standard Met: ABMA, ISO Related Inner Ring: MI 25 4S
    Precision Rating: RBEC-1 Separable: Nonseparable
    Enclosure: Sealed Both Sides Component Type: Outer race only
    Retainer: No
