• Air Vent Valve Yoshitake 1/2 นิ้ว 15A,TAV-2
1 1

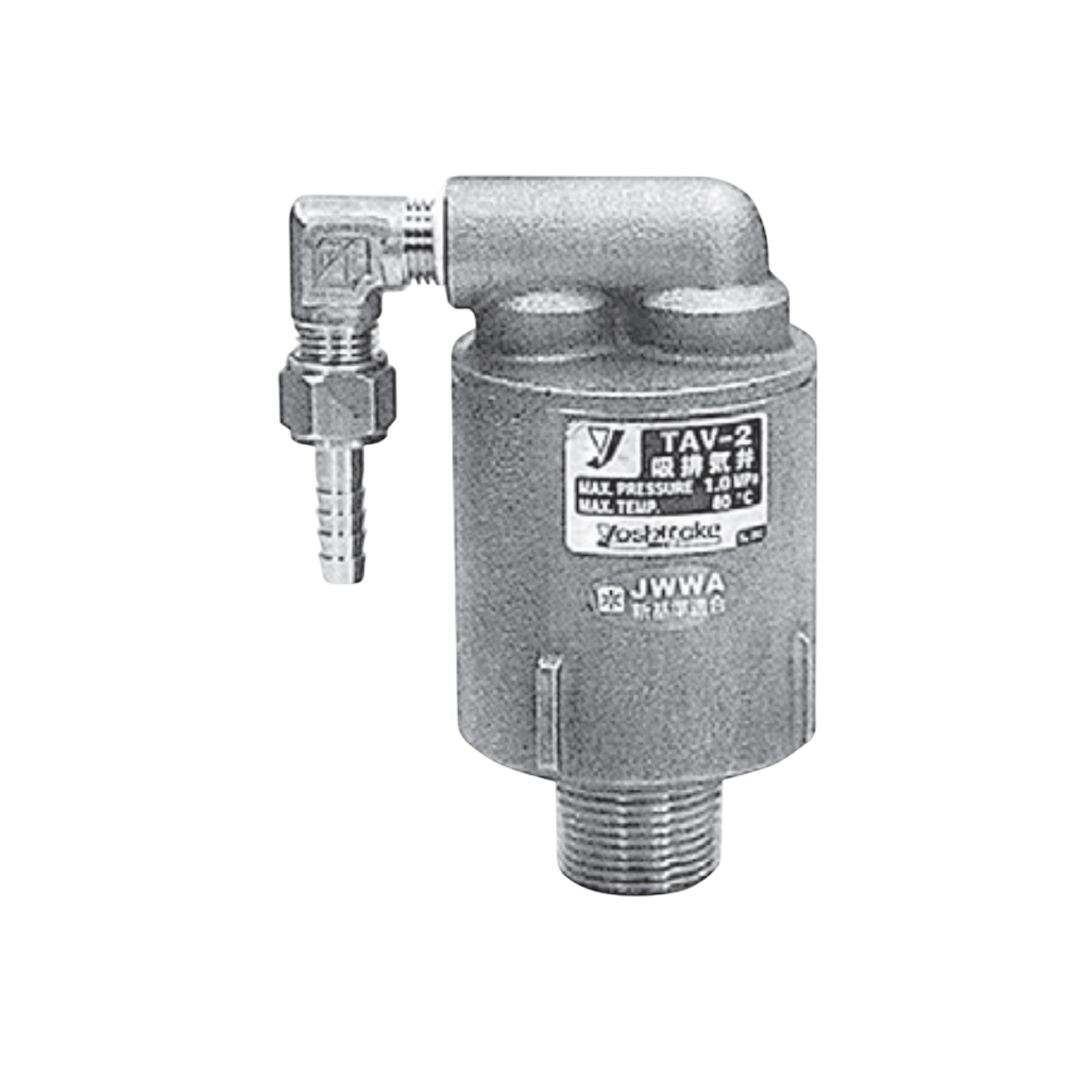

Air Vent Valve Yoshitake 1/2 inch 15A,TAV-2

Air Vent Valve Yoshitake 1/2 inch 15A,TAV-2

5,028.97 ฿
5,028.97 ฿
Sale Sold out

YOSHITAKE

รายละเอียด Air Vent Valve Yoshitake 1/2 inch 15A,TAV-2

Features

  • Sucks in air promptly when pressure becomes negative in piping or tank, preventing back flow.
  • The product carries out air intake and exhaust automatically as required.
Chain sprocket with KANA hub, size 40

Dimensions (mm) and Weights (kg)

Nominal size d H Intake and exhaust port Weight Weight
15A Rc 1/2 107 Rc 1/4 0.8

Specifications

Model TAV-2
Application City water
Working pressure 0.05-1.0 MPa
Closing pressure of check valve -1.0 kPa {-100 mmAq} or less (air intake less than pressure 0)
Maximum temperature 0-80˚C (no freeze condition)
Material Body : Cast bronze (NPb-treated)
Float : Synthetic resin
Exhaust packing : Synthetic rubber
Connection Connection port : JIS R
Intake and exhaust port : JIS Rc 1/4 (φ8 hose joint)
View full details
