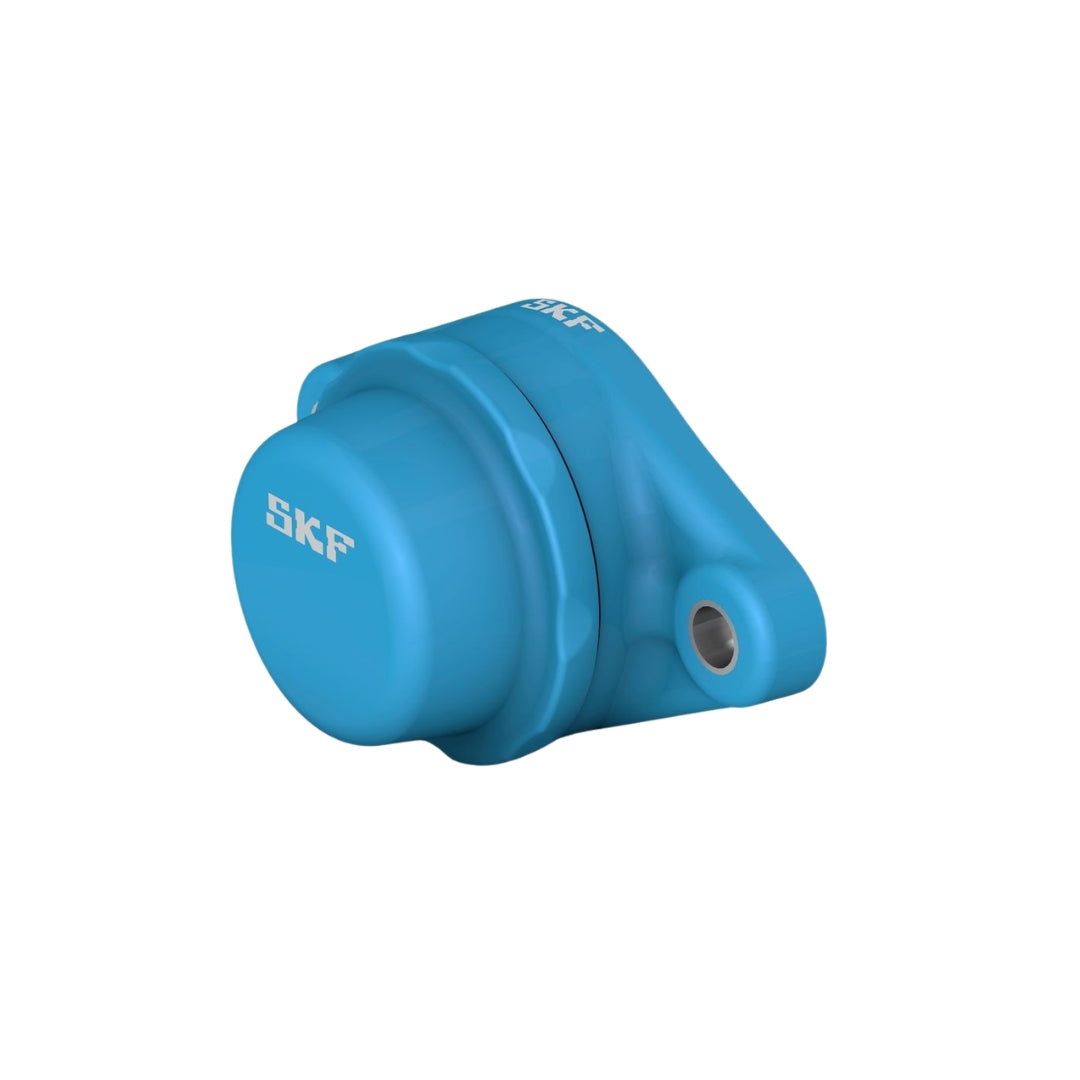

ตลับลูกปืน SKF F2BC 40M-CPSS-DFH
ตลับลูกปืน SKF F2BC 40M-CPSS-DFH
SKF
กรุณาตรวจสอบสต็อกก่อนชำระเงินRegular price
4,740.00 ฿
Regular price
Sale price
4,740.00 ฿
Unit price
per
Couldn't load pickup availability
รายละเอียด ตลับลูกปืน SKF F2BC 40M-CPSS-DFH
| Compliance with standard | Not standardized |
| Purpose specific | For food and beverage applications |
| Material, housing | Composite for the SKF Food Line |
| Sealing, bearing | Seal on both sides and flinger on one side |
| Sealing type, bearing | Contact, gutter |
| Sealing, unit | End cover and back seal |
| Coating | Without |
Dimensions
| d |
40 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 51.8 mm
|
Outer diameter of inner ring |
| A |
38 mm
|
Overall width |
| A1 |
17 mm
|
Flange width |
| A5 |
67.9 mm
|
Width including end cover |
| B |
40.7 mm
|
Width of inner ring |
| B1 |
40.7 mm
|
Overall bearing width |
| B4 |
10 mm
|
Distance from locking device side face to thread centre |
| Db |
94 mm
|
Top external diameter |
| Dc |
88 mm
|
Diameter of housing centering recess |
| H |
178 mm
|
Overall height |
| Ha |
6 mm
|
Depth of housing centering recess |
| J |
144 mm
|
Distance between attachment bolts |
| L |
98 mm
|
Overall length |
| N |
14.2 mm
|
Diameter of attachment bolt hole |
| s1 |
30.2 mm
|
Distance from locking device side face to raceway centre |
| T |
50.7 mm
|
Overall unit width |
Calculation data
| Basic dynamic load rating | C |
24.7 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 kN
|
| Fatigue load limit | Pu |
0.8 kN
|
| Limiting speed |
500 r/min
|
Mass
| Mass bearing unit |
0.81 kg
|
Mounting information
| Set screw | G2 | M8x1 |
|---|---|---|
| Hexagonal key size for set screw |
4 mm
|
|
| Recommended tightening torque for set screw |
6.5 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
