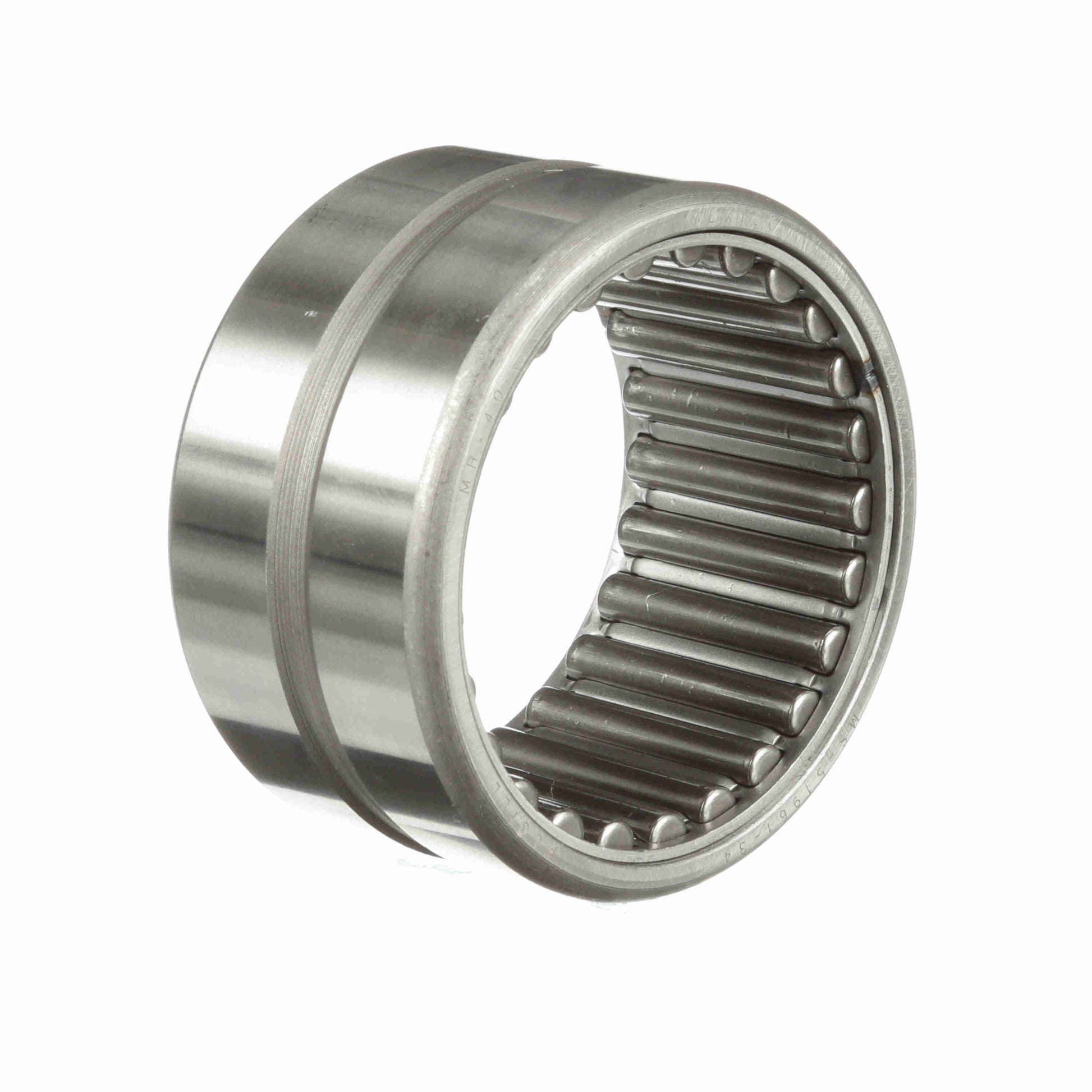

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 40
General Specifications
| UPC: | 726166067540 | Weight: | 1.25 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Bore Size - Inch: | 2.5000 in |
| Outside Diameter - Inch: | 3.25 in | Hole Diameter: | 0.125 |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Misalignment: | No | Radial Clearance: | Normal |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Duplexing: | No | Sealed: | None |
| Static Load Rating (lb): | 52,100 lb | Speed (Max) Oil: | 4,800 |
| Dynamic Load Rating: | 27,200 | Platform: | Cagerol Bearing |
| Speed (Max) Grease: | 2,400 | Full Complement/Caged: | Caged |
| Lubrication Hole Type: | Lubrication Groove & Hole | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 32, MI 34 | Standard Met: | ABMA, ISO |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
