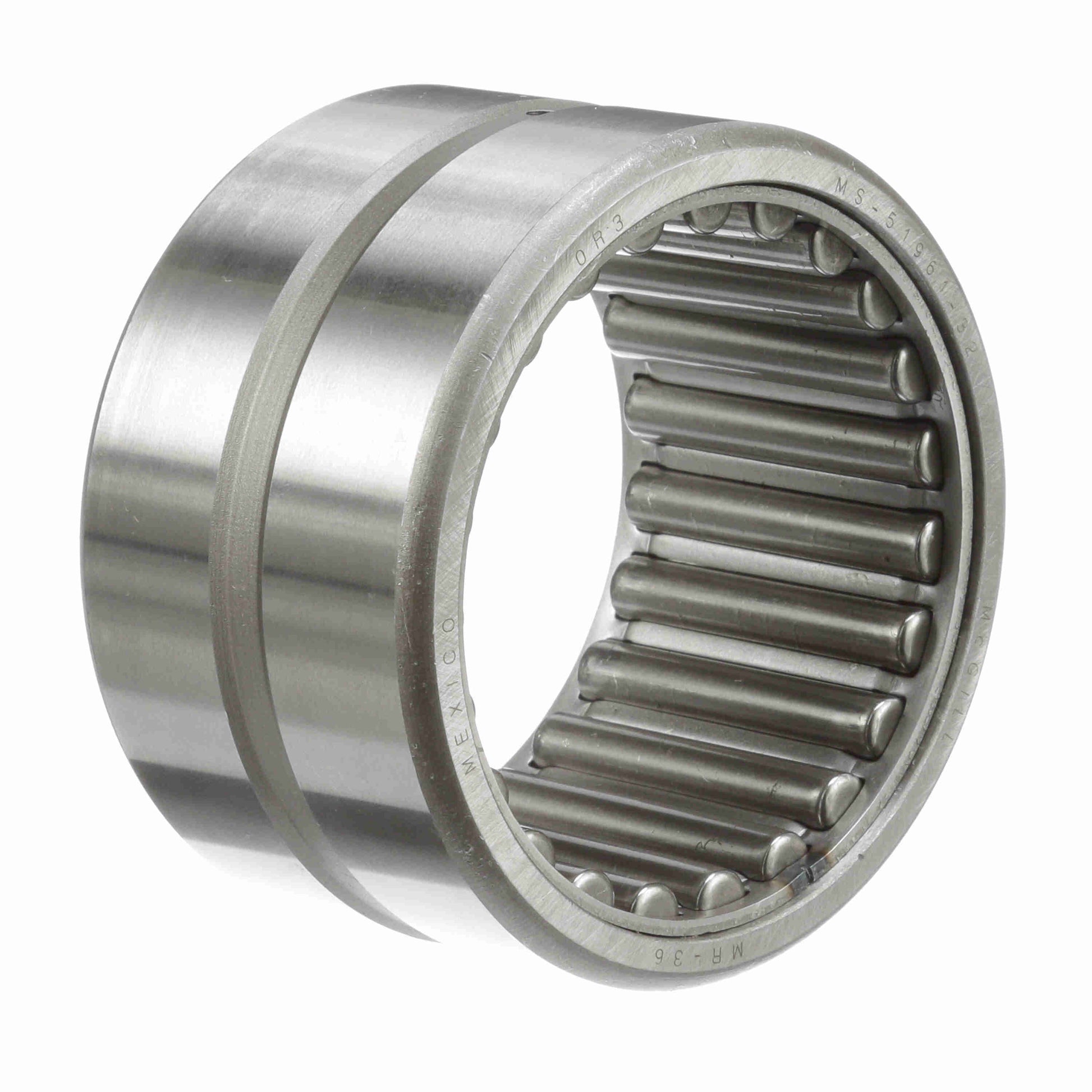

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 36
General Specifications
| UPC: | 726166067366 | Weight: | 1.09 LB |
| Packaged Length: | 3.31 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Hole Diameter: | 0.125 |
| Outside Diameter - Inch: | 3 in | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 2.2500 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Rolling Element: | Needle Roller | Number of Rows: | 1 |
| Radial Clearance: | Normal | Seal Type: | Unsealed |
| Sealed: | None | Duplexing: | No |
| Static Load Rating (lb): | 47,400 lb | Speed (Max) Grease: | 2,650 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Speed (Max) Oil: | 5,350 | Dynamic Load Rating: | 26,000 |
| Operating Temperature Range: | -20 to 250 °F | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Related Inner Ring: | MI 30 | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Component Type: | Outer race only |
| Separable: | Nonseparable | Retainer: | Yes |
