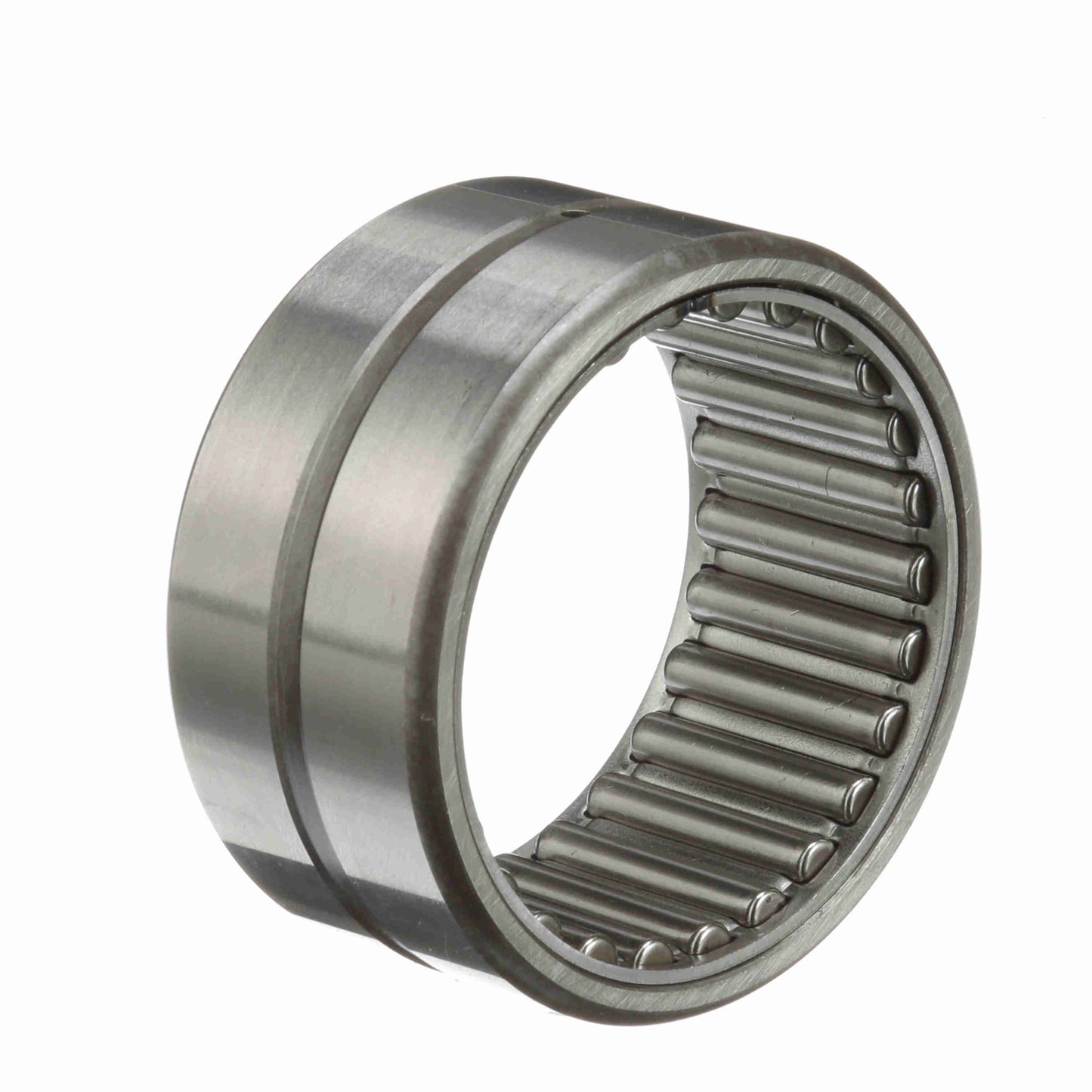

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 32
General Specifications
| UPC: | 726166067113 | Weight: | 0.94 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 2.5625 in | Housing & Shaft Fillet (in): | 0.06 in |
| Bore Size - Inch: | 2 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Bore Type: | Straight |
| Seal Type: | Unsealed | Misalignment: | No |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Speed (Max) Oil: | 6,000 | Sealed: | None |
| Speed (Max) Grease: | 3,000 | Duplexing: | No |
| Static Load Rating (lb): | 27,900 lb | Platform: | Cagerol Bearing |
| Dynamic Load Rating: | 15,200 | Full Complement/Caged: | Caged |
| Operating Temperature Range: | -20 to 250 °F | Flanges: | No Flanges |
| Related Inner Ring: | MI 26, MI 27 | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Precision Rating: | RBEC-1 |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
