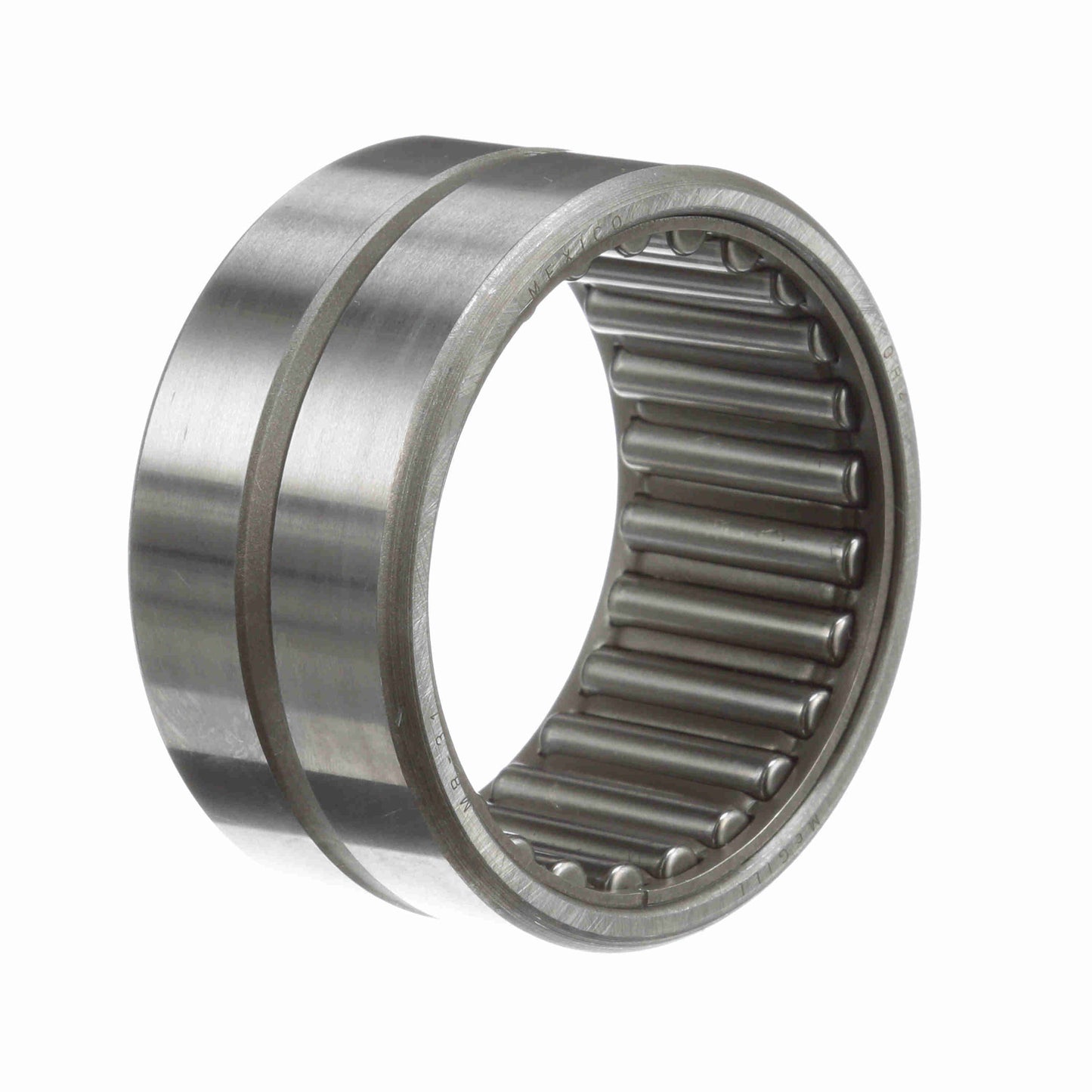

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 31
General Specifications
| UPC: | 726166064099 | Weight: | 0.52 LB |
| Packaged Length: | 2.62 Inches | Packaged Width: | 1.31 Inches |
| Packaged Height: | 2.62 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Housing & Shaft Fillet (in): | 0.06 in |
| Hole Diameter: | 0.094 | Bore Size - Inch: | 1.9375 in |
| Outside Diameter - Inch: | 2.5 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Misalignment: | No |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Speed (Max) Grease: | 3,000 | Dynamic Load Rating: | 12,400 |
| Platform: | Cagerol Bearing | Static Load Rating (lb): | 22,400 lb |
| Duplexing: | No | Sealed: | None |
| Speed (Max) Oil: | 6,000 | Full Complement/Caged: | Caged |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Related Inner Ring: | MI 26 2S | Operating Temperature Range: | -20 to 250 °F |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | Yes |
