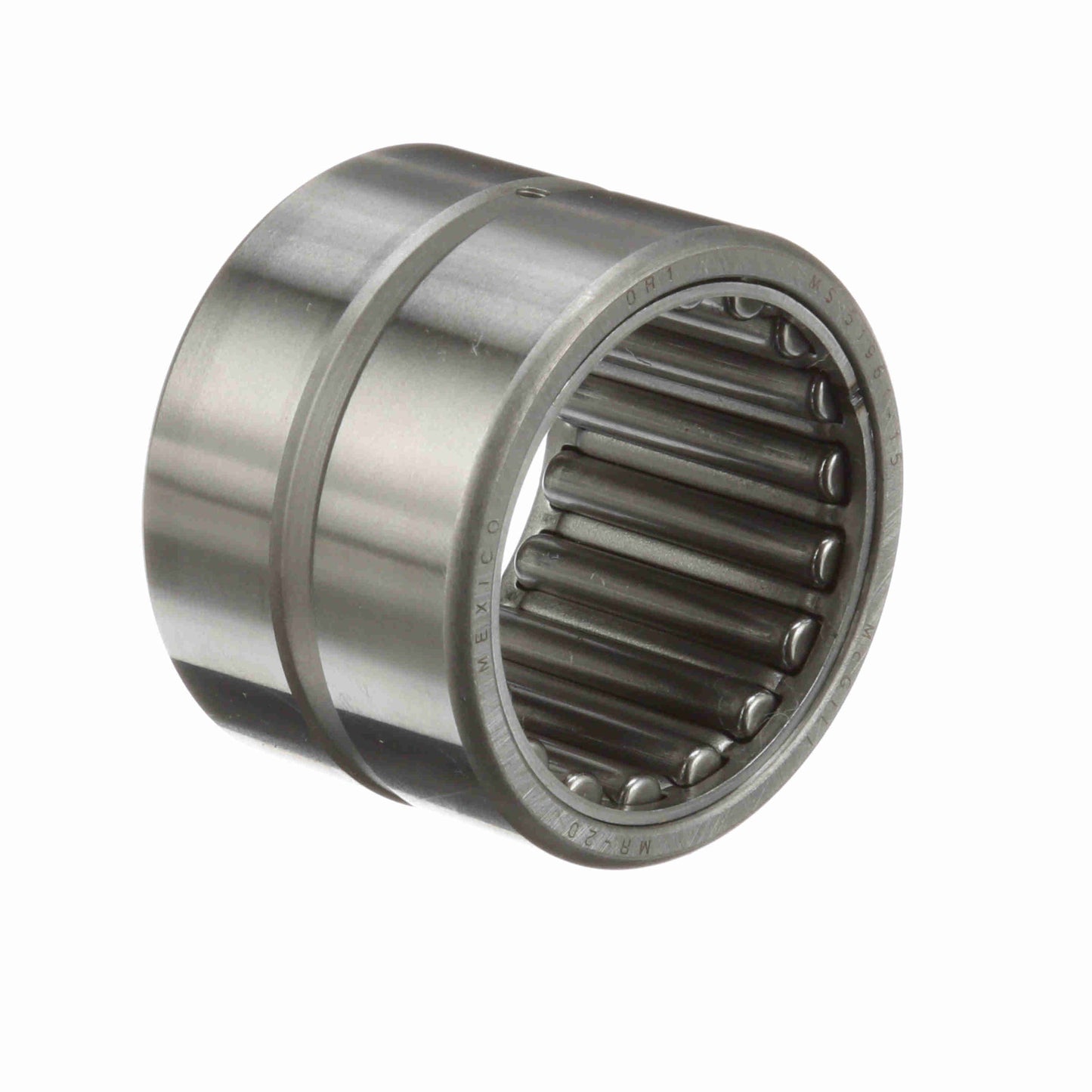

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 20
General Specifications
| UPC: | 726166065805 | Weight: | 0.31 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.25 | Bore Size - Inch: | 1.2500 in |
| Housing & Shaft Fillet (in): | 0.04 in | Hole Diameter: | 0.094 |
| Outside Diameter - Inch: | 1.75 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Static Load Rating (lb): | 17,500 lb | Speed (Max) Oil: | 9,600 |
| Sealed: | None | Speed (Max) Grease: | 4,800 |
| Dynamic Load Rating: | 11,300 | Platform: | Cagerol Bearing |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Related Inner Ring: | MI 16 | Operating Temperature Range: | -20 to 250 °F |
| Precision Rating: | RBEC-1 | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Lubrication Hole Type: | Lubrication Groove & Hole |
| Enclosure: | Open | Separable: | Nonseparable |
| Component Type: | Outer race only | Retainer: | Yes |
