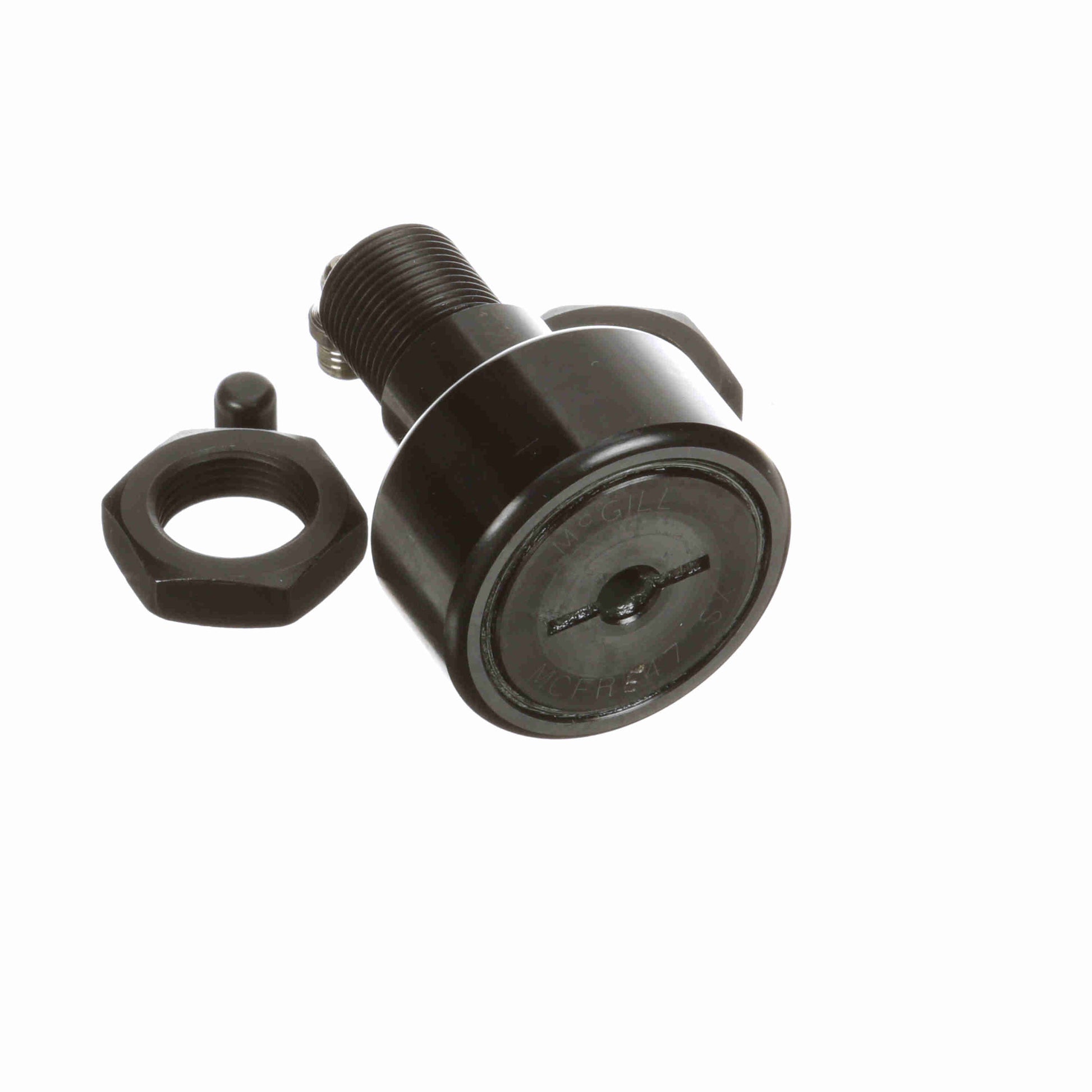

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFRE 47 SX
General Specifications
| UPC: | 726166094850 | Weight: | 1.03 LB |
| Packaged Length: | 2.1 Inches | Packaged Width: | 2.1 Inches |
| Packaged Height: | 2.9 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M20x1.5 | Overall Length - mm: | 66 mm |
| Reamed Hole - mm: | 8 mm | Lubrication Fitting Size - Metric: | 8 |
| Bushing Length - mm: | 18 mm | Stud Length - mm: | 40.5 mm |
| Roller Width - mm: | 24 mm | Minimum Thread Length: | 21 |
| Roller Diameter - mm: | 47 mm | Eccentricity - mm: | 1 mm |
| Bushing Diameter - mm: | 24 mm | Stud Diameter - mm: | 20 mm |
Technical Specifications
| Dynamic Radial Rating: | 3,991 | Sealing: | Sealed |
| Limiting Speed: | 3,900 | Hex/Slot: | Screwdriver Slot |
| Dynamic Track Roller Load Rating (N): | 17,750 N | Adjustment: | Eccentric Bushing |
| O.D. Configuration: | Cylindrical | Rolling Element: | Needle Roller - Caged |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 29,800 | Stud Type: | Standard Stud with Eccentric Bushing |
| Dynamic Load Rating - N: | 21,280 | Clamping Torque - Nm: | 118 |
| Roller Shape: | Cylindrical | Industry Standard: | DIN |
| Static Track Roller Load Rating: | 29,800 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent |
