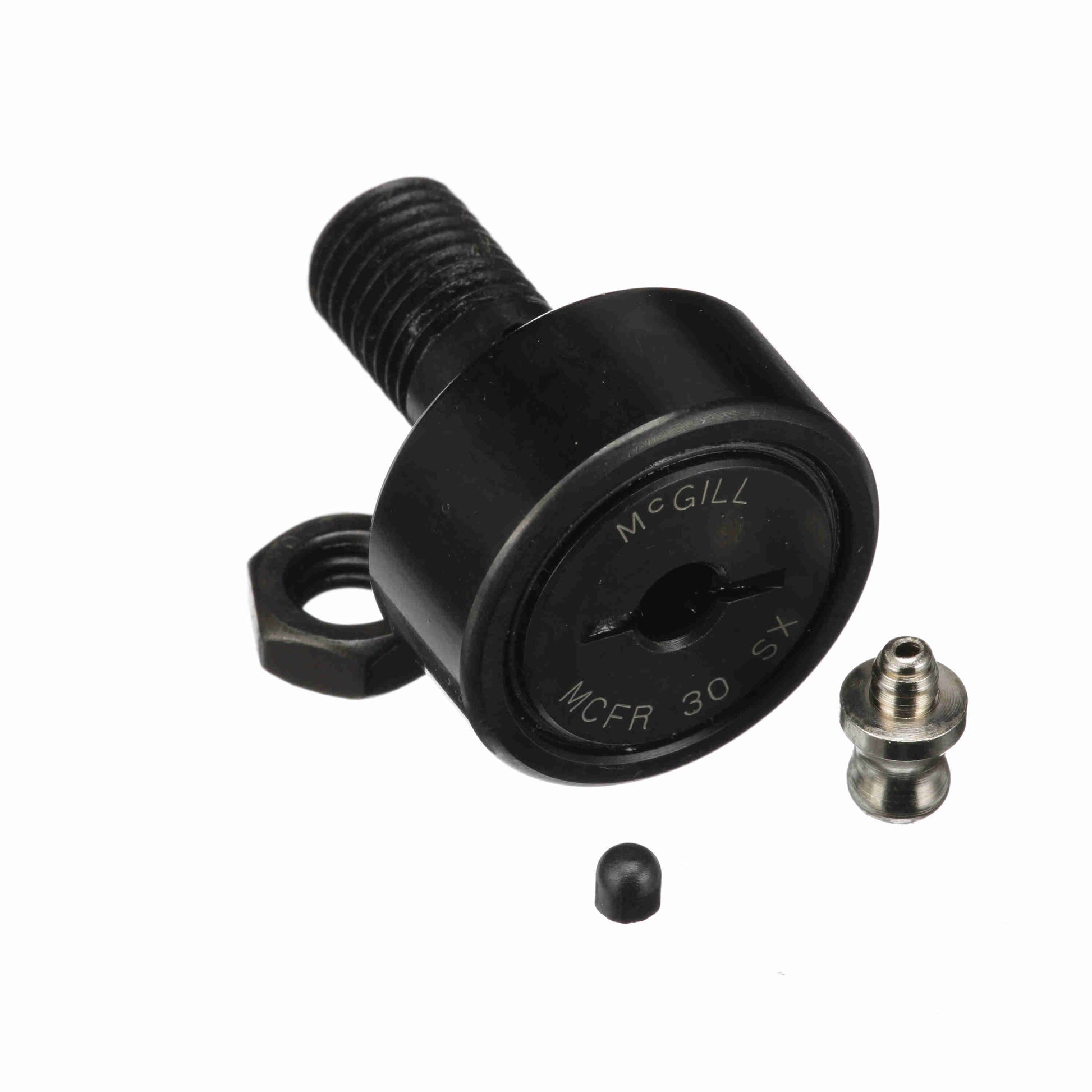

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFR 30 SX
General Specifications
| UPC: | 726166018924 | Weight: | 0.25 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.6 Inches | Country of Origin: | China |
Dimensions
| Threads: | M12x1.5 | Reamed Hole - mm: | 6 mm |
| Minimum Thread Length: | 14 | Overall Length - mm: | 40 mm |
| Roller Diameter - mm: | 30 mm | Stud Diameter - mm: | 12 mm |
| Lubrication Fitting Size - Metric: | 6 | Roller Width - mm: | 14 mm |
| Oil Hole Diameter - mm: | 3 mm | Stud Length - mm: | 25 mm |
| Oil Hole Center - mm: | 6 mm |
Technical Specifications
| Dynamic Track Roller Load Rating (N): | 6,860 N | Rolling Element: | Needle Roller - Caged |
| Limiting Speed: | 9,600 | Dynamic Radial Rating: | 1,542 |
| Hex/Slot: | Screwdriver Slot | O.D. Configuration: | Cylindrical |
| Sealing: | Sealed | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Industry Standard: | DIN / JIS | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Tolerance Class: | P0 Equivalent |
| Static Track Roller Load Rating: | 8,050 | Dynamic Load Rating - N: | 8,240 |
| Stud Type: | Standard Stud | Static Load Rating: | 8,050 |
| Clamping Torque - Nm: | 22 |
