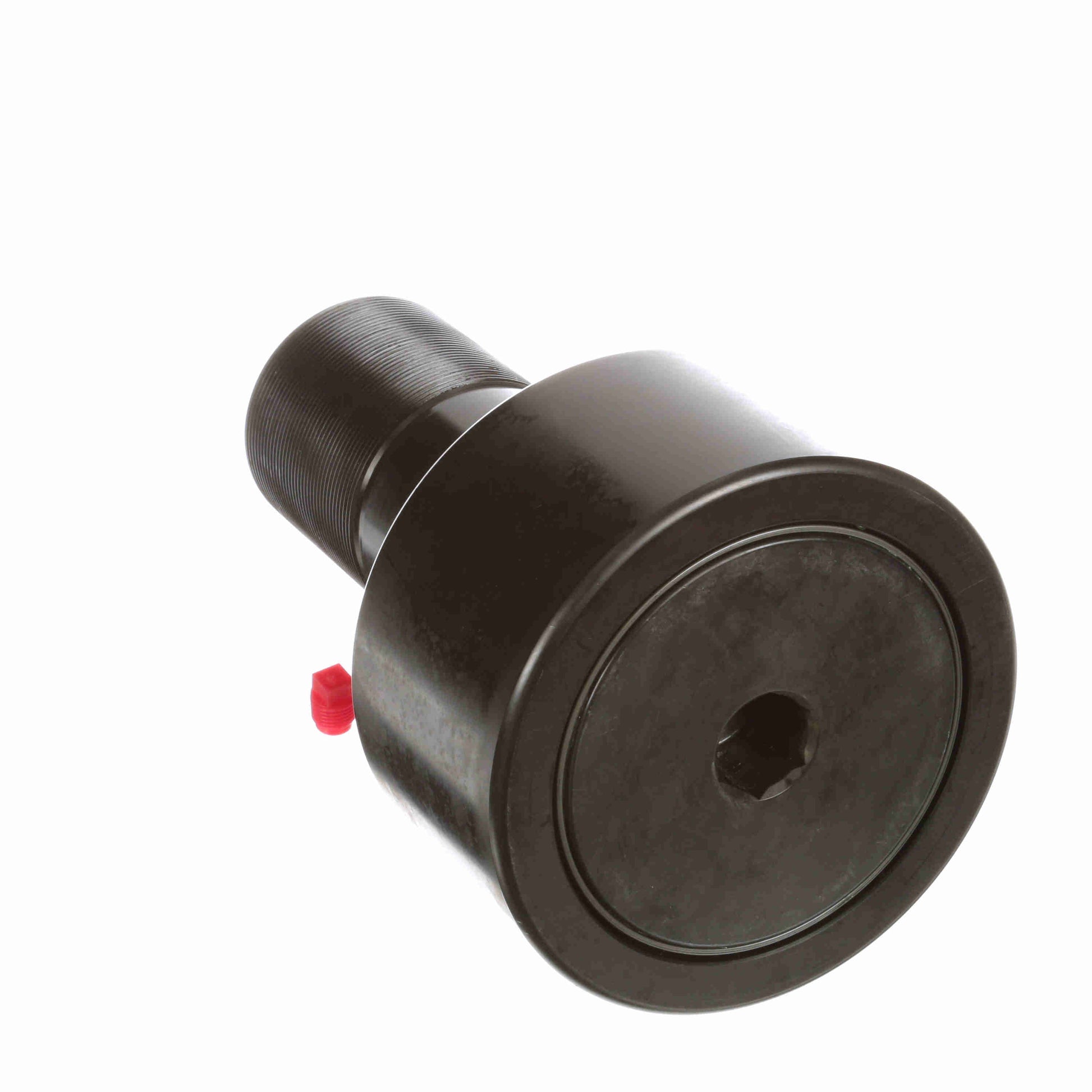

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CFH 7 S
General Specifications
| UPC: | 726166043629 | Weight: | 58.33 LB |
| Packaged Length: | 7.18 Inches | Packaged Width: | 7.18 Inches |
| Packaged Height: | 12.37 Inches | HTC: | 8482.50.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3 1/2-4 | Oil Hole Diameter - Inch: | 0.188 |
| Roller Diameter - Inch: | 7 | Stud Length - Inch: | 7.6875 |
| Roller Width - Inch: | 3.75 | Lubrication Fitting Size - Inch: | 1/4 N.P.T. |
| Minimum Thread Length - Inch: | 4.125 | Stud Diameter - Inch: | 3.5 |
| Lubrication Fitting Size - Metric: | 1/4 N.P.T. | Oil Hole Center - Inch: | 1.25 |
Technical Specifications
| Sealing: | Sealed | Hex/Slot: | Hex Hole |
| O.D. Configuration: | Cylindrical | Limiting Speed: | 400 |
| Adjustment: | None | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Heavy Stud | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 75,380 |
| Clamping Torque - in-lbf: | 5,000 | Roller Shape: | Cylindrical |
| Static Load Rating: | 213,860 | Lubrication Hole Location: | Stud side |
