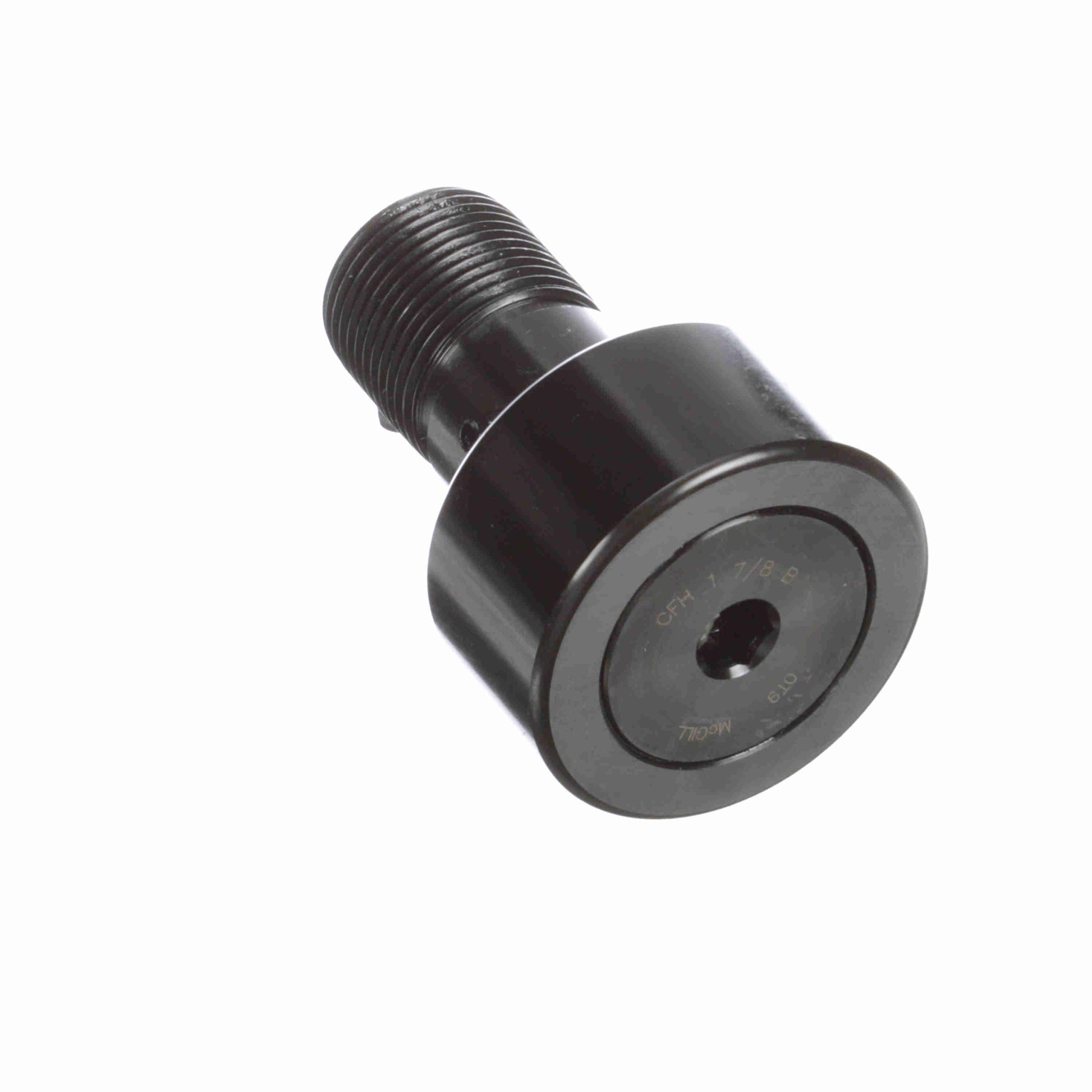

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - CFH 1 7/8 B
General Specifications
| UPC: | 726166037048 | Weight: | 1.15 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1-14 | Lubrication Fitting Size - Inch: | 3/16 |
| Lubrication Fitting Size - Metric: | 3/16 | Roller Width - Inch: | 1 |
| Roller Diameter - Inch: | 1.875 | Stud Length - Inch: | 1.75 |
| Minimum Thread Length - Inch: | 0.875 | Oil Hole Diameter - Inch: | 0.094 |
| Stud Diameter - Inch: | 1 | Oil Hole Center - Inch: | 0.4375 |
Technical Specifications
| Limiting Speed: | 2,000 | O.D. Configuration: | Cylindrical |
| Hex/Slot: | Hex Hole | Adjustment: | None |
| Rolling Element: | Needle Roller - Full Complement | Sealing: | Unsealed |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Platform: | CAMROL® | Roller Shape: | Cylindrical |
| Clamping Torque - in-lbf: | 2,250 | Static Load Rating: | 15,840 |
| Stud Type: | Heavy Stud | Dynamic Load Rating - lb: | 6,385 |
| Tolerance Class: | P0 Equivalent | Lubrication Hole Location: | Stud side |
