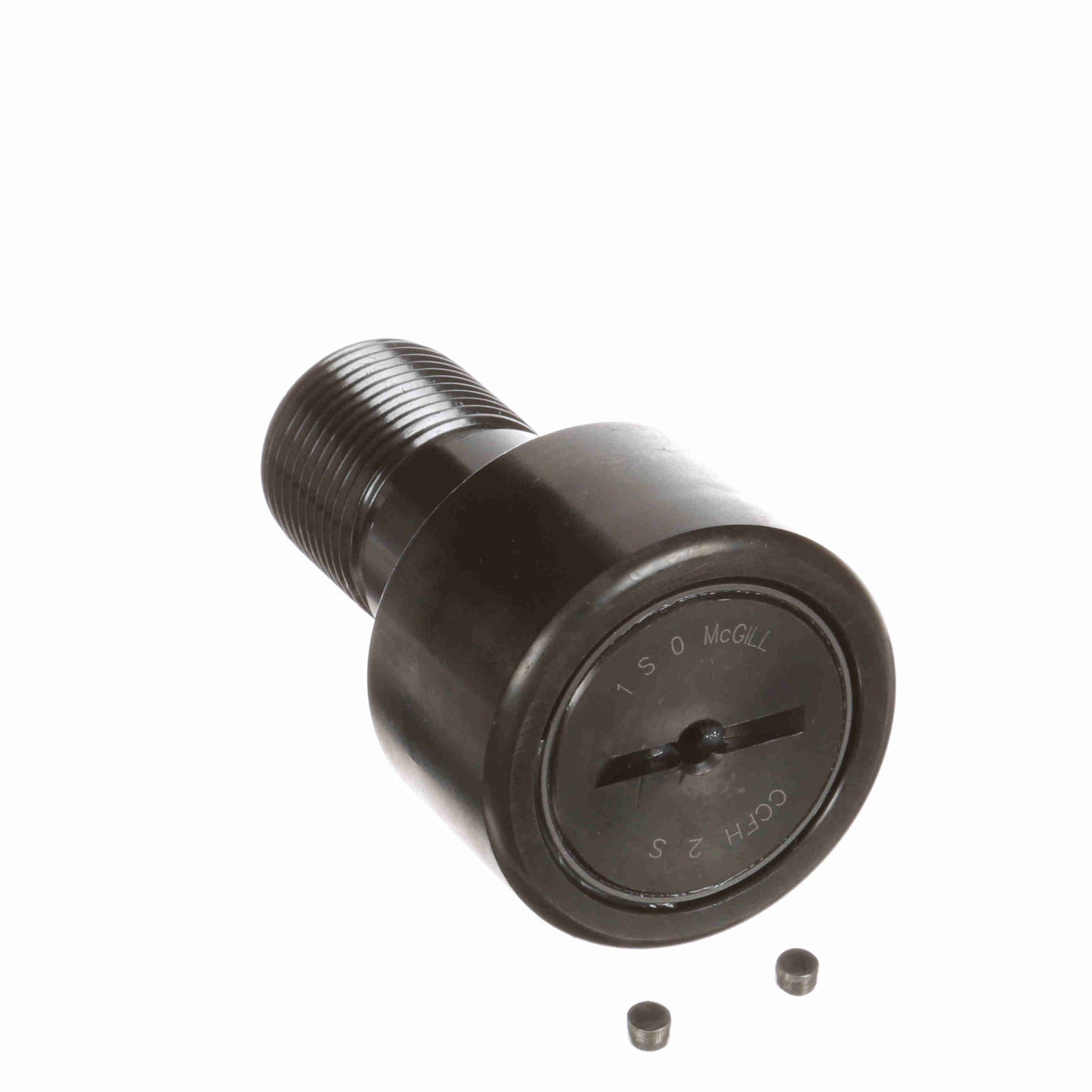

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CCFH 2 S
General Specifications
| UPC: | 726166037680 | Weight: | 1.55 LB |
| Packaged Length: | 2.31 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1 1/8-12 | Lubrication Fitting Size - Metric: | 3/16 |
| Minimum Thread Length - Inch: | 1 | Stud Diameter - Inch: | 1.125 |
| Oil Hole Diameter - Inch: | 0.125 | Oil Hole Center - Inch: | 0.5 |
| Roller Width - Inch: | 1.25 | Roller Diameter - Inch: | 2 |
| Stud Length - Inch: | 2 | Lubrication Fitting Size - Inch: | 3/16 |
Technical Specifications
| Limiting Speed: | 1,400 | Hex/Slot: | Screwdriver Slot |
| Adjustment: | None | O.D. Configuration: | Crowned |
| Sealing: | Sealed | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Roller Shape: | Crowned | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 8,090 |
| Clamping Torque - in-lbf: | 2,800 | Stud Type: | Heavy Stud |
| Static Load Rating: | 21,140 | Lubrication Hole Location: | Stud side |
