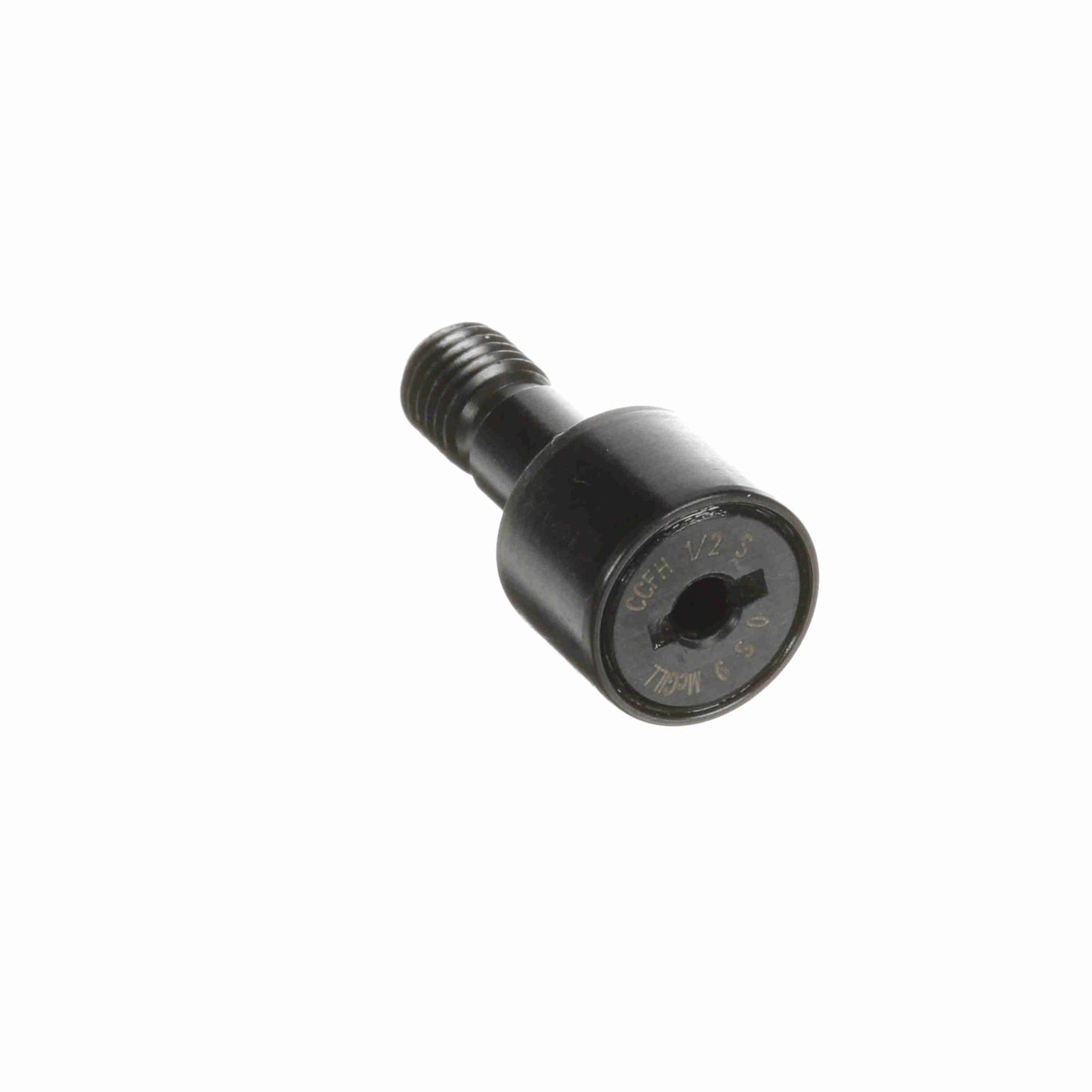

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CCFH 1/2 S
General Specifications
| UPC: | 726166030322 | Weight: | 0.03 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1/4-28 | Roller Diameter - Inch: | 0.5 |
| Stud Length - Inch: | 0.625 | Minimum Thread Length - Inch: | 0.25 |
| Stud Diameter - Inch: | 0.25 | Lubrication Fitting Size - Metric: | 1/8 |
| Roller Width - Inch: | 0.375 | Lubrication Fitting Size - Inch: | 1/8 |
Technical Specifications
| Limiting Speed: | 11,500 | Hex/Slot: | Screwdriver Slot |
| Adjustment: | None | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Crowned |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 600 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Stud Type: | Heavy Stud | Clamping Torque - in-lbf: | 35 |
| Dynamic Load Rating - lb: | 680 |
