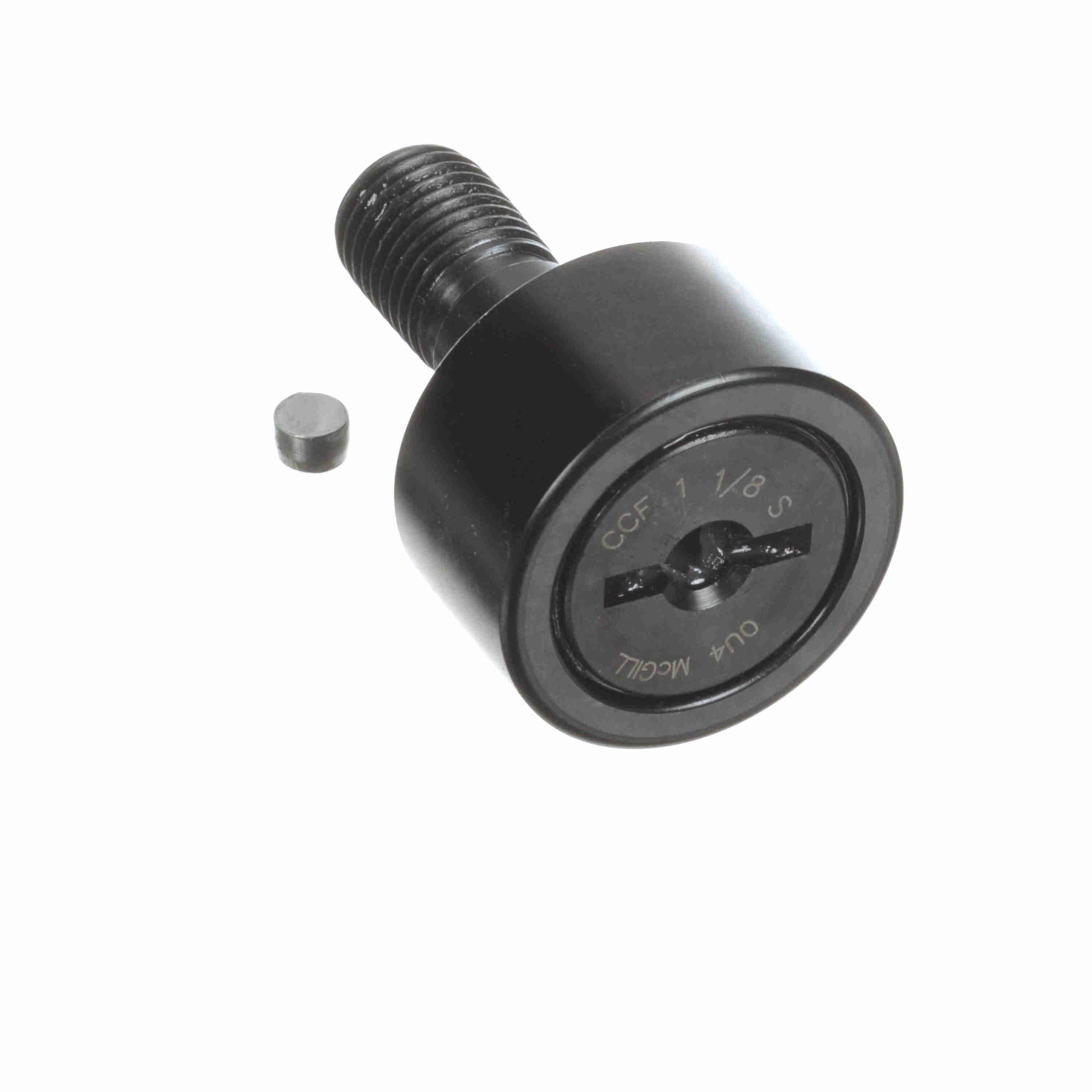

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CCF 1 1/8 S
General Specifications
| UPC: | 726166034085 | Weight: | 0.19 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Crown Radius: | 12 | Threads: | 7/16-20 |
| Stud Length - Inch: | 1 | Stud Diameter - Inch: | 0.4375 |
| Oil Hole Diameter - Inch: | 0.094 | Lubrication Fitting Size - Metric: | 0.1875 |
| Roller Width - Inch: | 0.625 | Roller Diameter - Inch: | 1.125 |
| Minimum Thread Length: | 0.5 | Lubrication Fitting Size - Inch: | 0.1875 |
| Oil Hole Center - Inch: | 0.25 |
Technical Specifications
| Dynamic Radial Rating: | 2,225 | Adjustment: | None |
| O.D. Configuration: | Crowned | Limiting Speed: | 3,400 |
| Sealing: | Sealed | Hex/Slot: | Screwdriver Slot |
| Rolling Element: | Needle Roller - Full Complement | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 3,060 |
| Roller Shape: | Crowned | Dynamic Load Rating - lb: | 2,225 |
| Clamping Torque - in-lbf: | 250 | Stud Type: | Standard Stud |
| Lubrication Hole Location: | Stud side |
