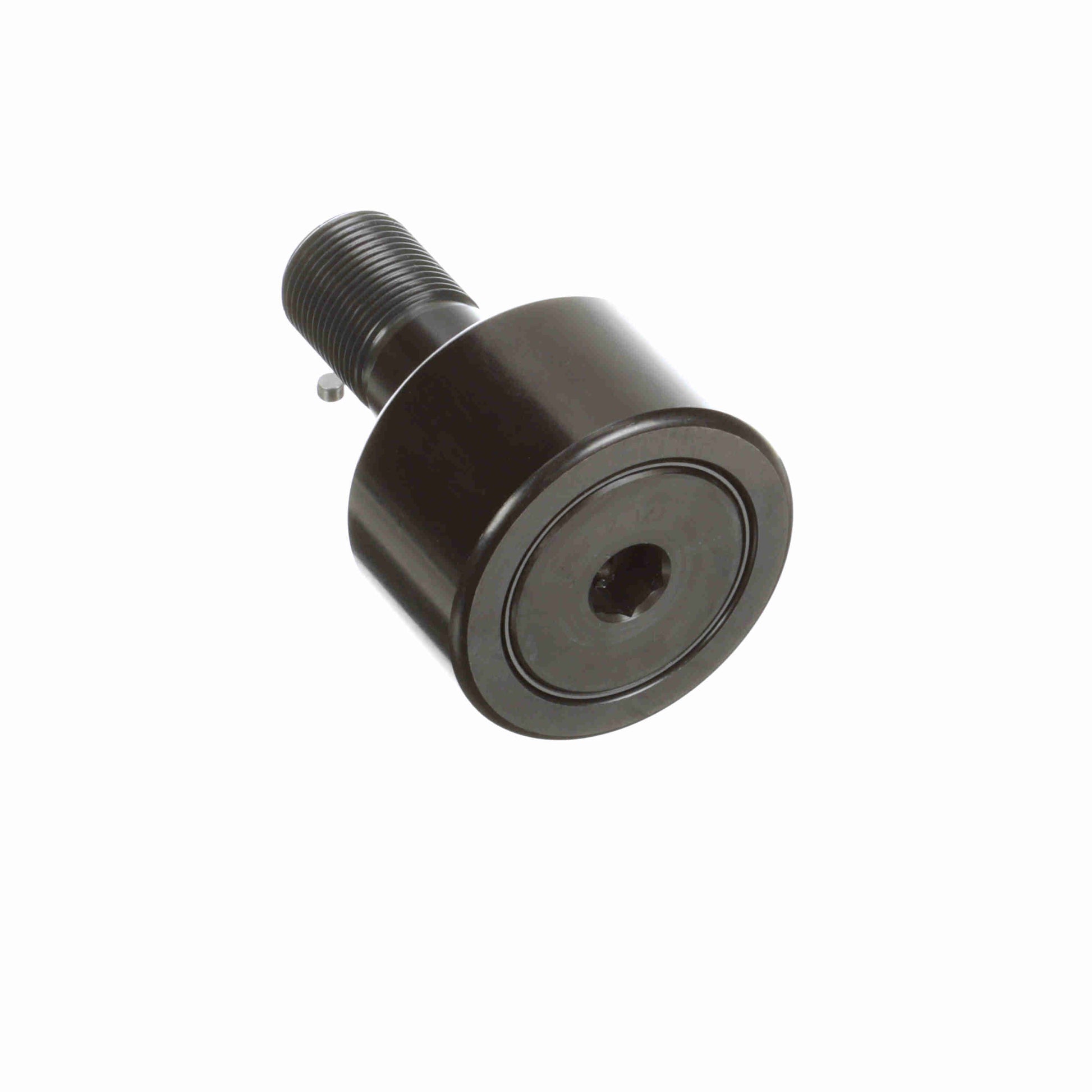

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Cam Follower - Stud Mount Roller - Hex Hole - Sealed - BCF 2 1/2 SB
General Specifications
| UPC: | 726166038700 | Weight: | 2.25 LB |
| Packaged Length: | 2.81 Inches | Packaged Width: | 2.81 Inches |
| Packaged Height: | 3.93 Inches | HTC: | 8482.80.0080 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 1-14 | Lubrication Fitting Size - Metric: | 0.1875 |
| Roller Diameter - Inch: | 2.5 | Lubrication Fitting Size - Inch: | 0.1875 |
| Hex Socket - Inch: | 0.5 | Stud Diameter - Inch: | 1 |
| Stud Length - Inch: | 2.25 | Roller Width - Inch: | 1.5 |
| Oil Hole Center - Inch: | 0.5625 | Minimum Thread Length: | 1.125 |
Technical Specifications
| Sealing: | Sealed | Hex/Slot: | Hex Hole |
| Rolling Element: | Selflube Bushing | O.D. Configuration: | Cylindrical |
| Adjustment: | None | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud |
| Clamping Torque - in-lbf: | 2,250 | Tolerance Class: | P0 Equivalent |
| Lubrication Hole Location: | Stud side |
