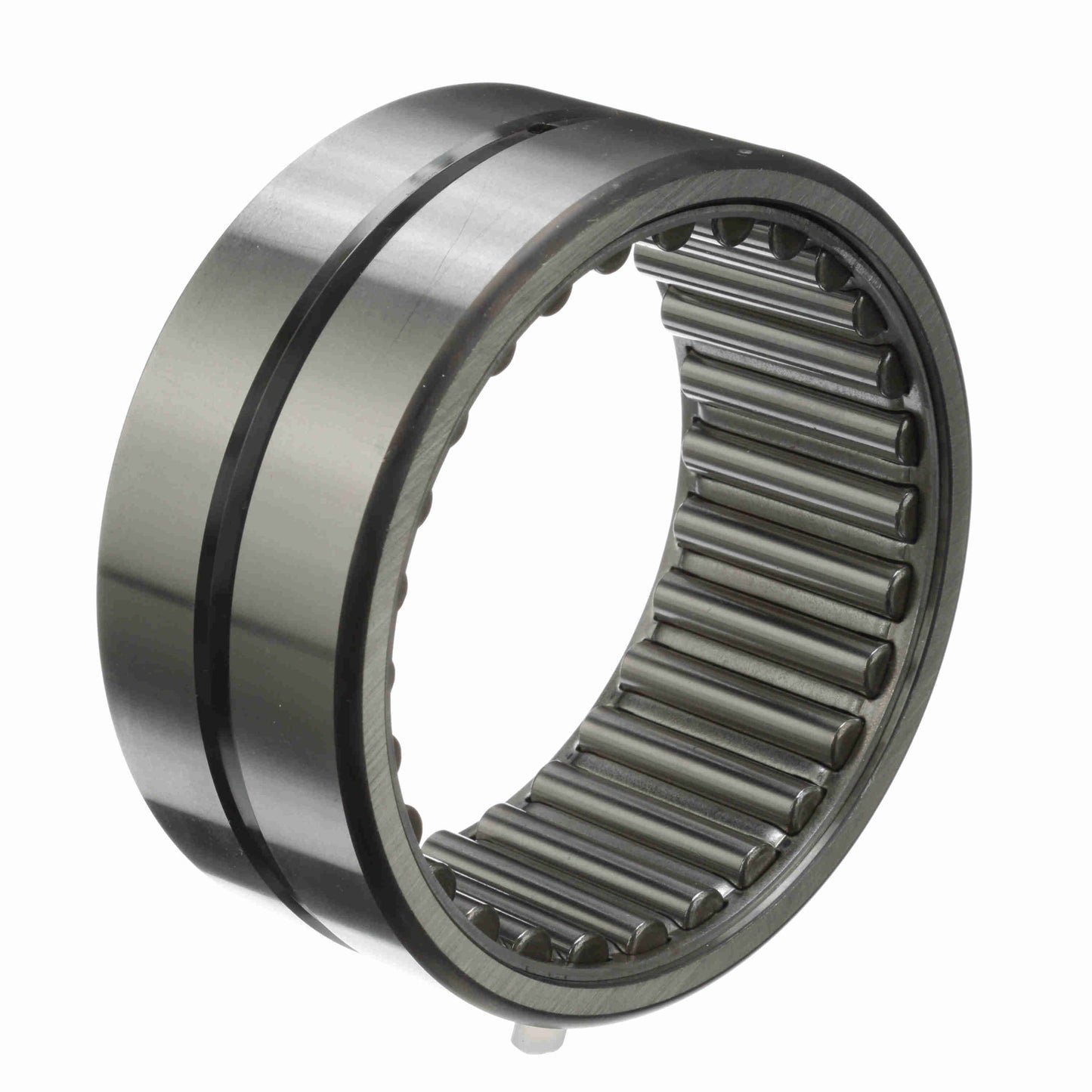

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 60
General Specifications
| UPC: | 726166064310 | Weight: | 2.72 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 2 | Housing & Shaft Fillet (in): | 0.1 in |
| Outside Diameter - Inch: | 4.75 in | Bore Size - Inch: | 3.7500 in |
| Hole Diameter: | 0.188 |
Technical Specifications
| Includes Inner Ring: | No | Series: | Standard |
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Platform: | Cagerol Bearing | Dynamic Load Rating: | 36,500 |
| Duplexing: | No | Speed (Max) Grease: | 1,600 |
| Sealed: | None | Full Complement/Caged: | Caged |
| Static Load Rating (lb): | 87,100 lb | Speed (Max) Oil: | 3,200 |
| Standard Met: | ABMA, ISO | Flanges: | No Flanges |
| Operating Temperature Range: | -20 to 250 °F | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Related Inner Ring: | MI 52 |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | Yes |
