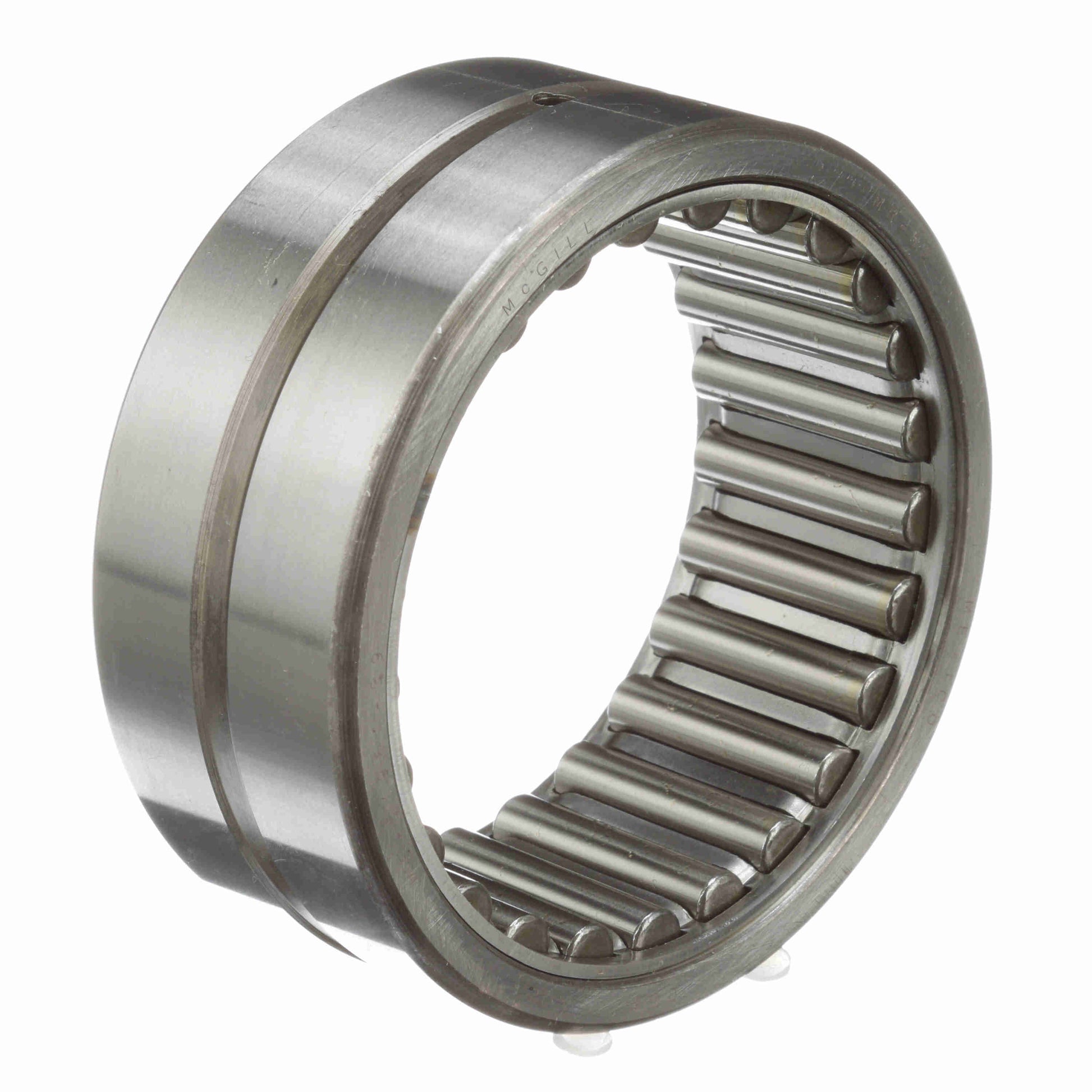

รายละเอียด ตลับลูกปืน McGill Cagerol® Radial Needle Roller Bearing (no inner) - MR 52
General Specifications
| UPC: | 726166064129 | Weight: | 2.21 LB |
| Packaged Length: | 4.87 Inches | Packaged Width: | 2.12 Inches |
| Packaged Height: | 4.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Outer Width: | 1.75 | Bore Size - Inch: | 3.2500 in |
| Outside Diameter - Inch: | 4.25 in | Hole Diameter: | 0.188 |
| Housing & Shaft Fillet (in): | 0.08 in |
Technical Specifications
| Material: | 52100 Bearing Steel | Includes Inner Ring: | No |
| Series: | Standard | Cage Material: | Steel |
| Bore Type: | Straight | Radial Clearance: | Normal |
| Number of Rows: | 1 | Seal Type: | Unsealed |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Speed (Max) Oil: | 3,700 | Static Load Rating (lb): | 64,400 lb |
| Dynamic Load Rating: | 29,900 | Speed (Max) Grease: | 1,850 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Sealed: | None | Duplexing: | No |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 44 |
| Flanges: | No Flanges | Operating Temperature Range: | -20 to 250 °F |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Open | Retainer: | Yes |
