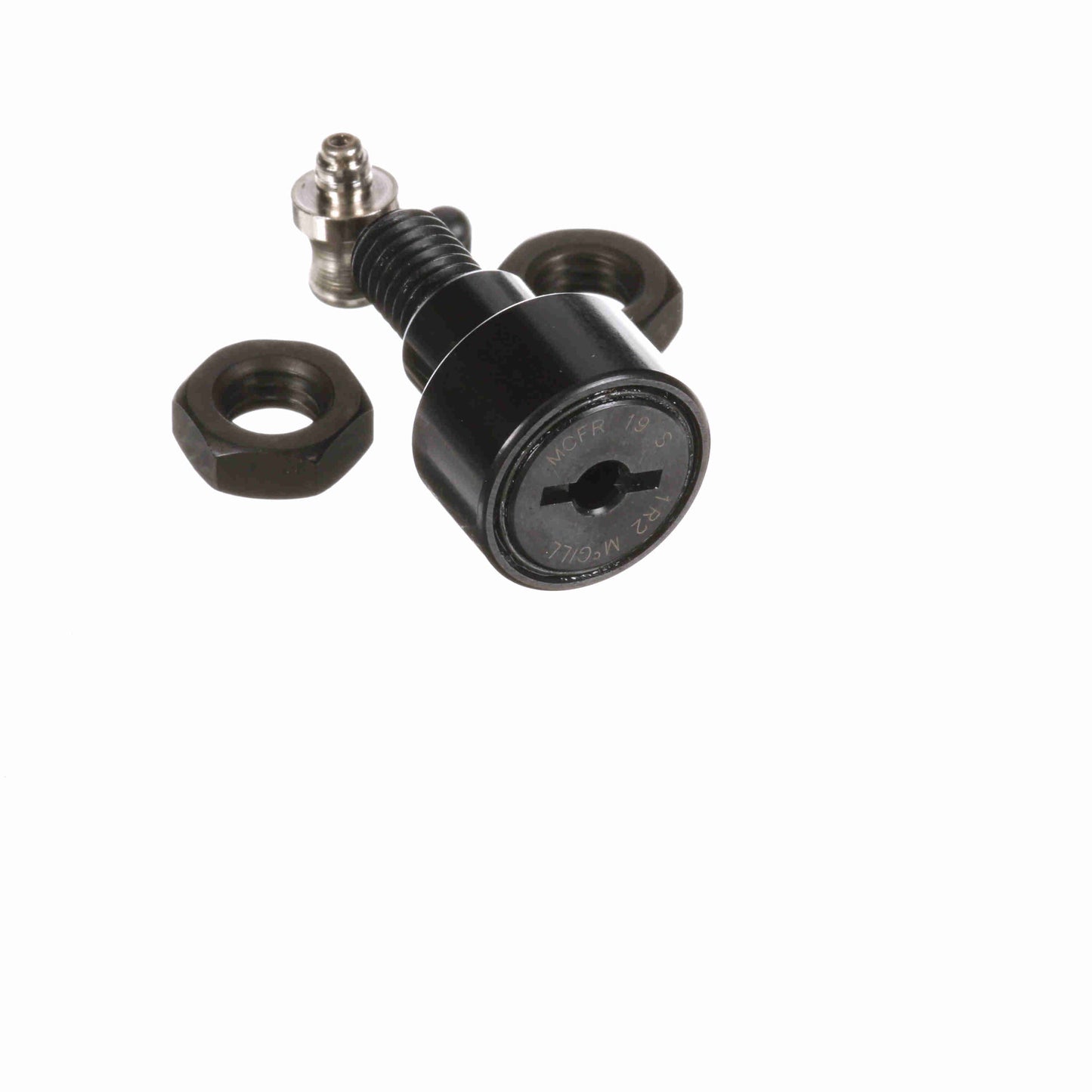

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFRE 19 S
General Specifications
| UPC: | 726166015817 | Weight: | 0.07 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
Dimensions
| Threads: | M8x1.25 | Lubrication Fitting Size - Metric: | 4 |
| Bushing Length - mm: | 9 mm | Reamed Hole - mm: | 4 mm |
| Bushing Diameter - mm: | 11 mm | Stud Length - mm: | 20 mm |
| Eccentricity - mm: | 0.5 mm | Roller Diameter - mm: | 19 mm |
| Stud Diameter - mm: | 8 mm | Minimum Thread Length: | 11 |
| Roller Width - mm: | 11 mm | Overall Length - mm: | 32 mm |
Technical Specifications
| Rolling Element: | Needle Roller - Caged | Hex/Slot: | Screwdriver Slot |
| Adjustment: | Eccentric Bushing | Sealing: | Sealed |
| Dynamic Track Roller Load Rating (N): | 3,730 N | Dynamic Radial Rating: | 839 |
| Limiting Speed: | 15,500 | O.D. Configuration: | Crowned |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Clamping Torque - Nm: | 8 | Static Track Roller Load Rating: | 4,140 |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud with Eccentric Bushing | Industry Standard: | DIN / JIS |
| Dynamic Load Rating - lb: | 1,550 | Dynamic Load Rating - N: | 4,510 |
| Static Load Rating: | 4,140 | Roller Shape: | Crowned |
| Lubrication Hole Location: | Stud side |
