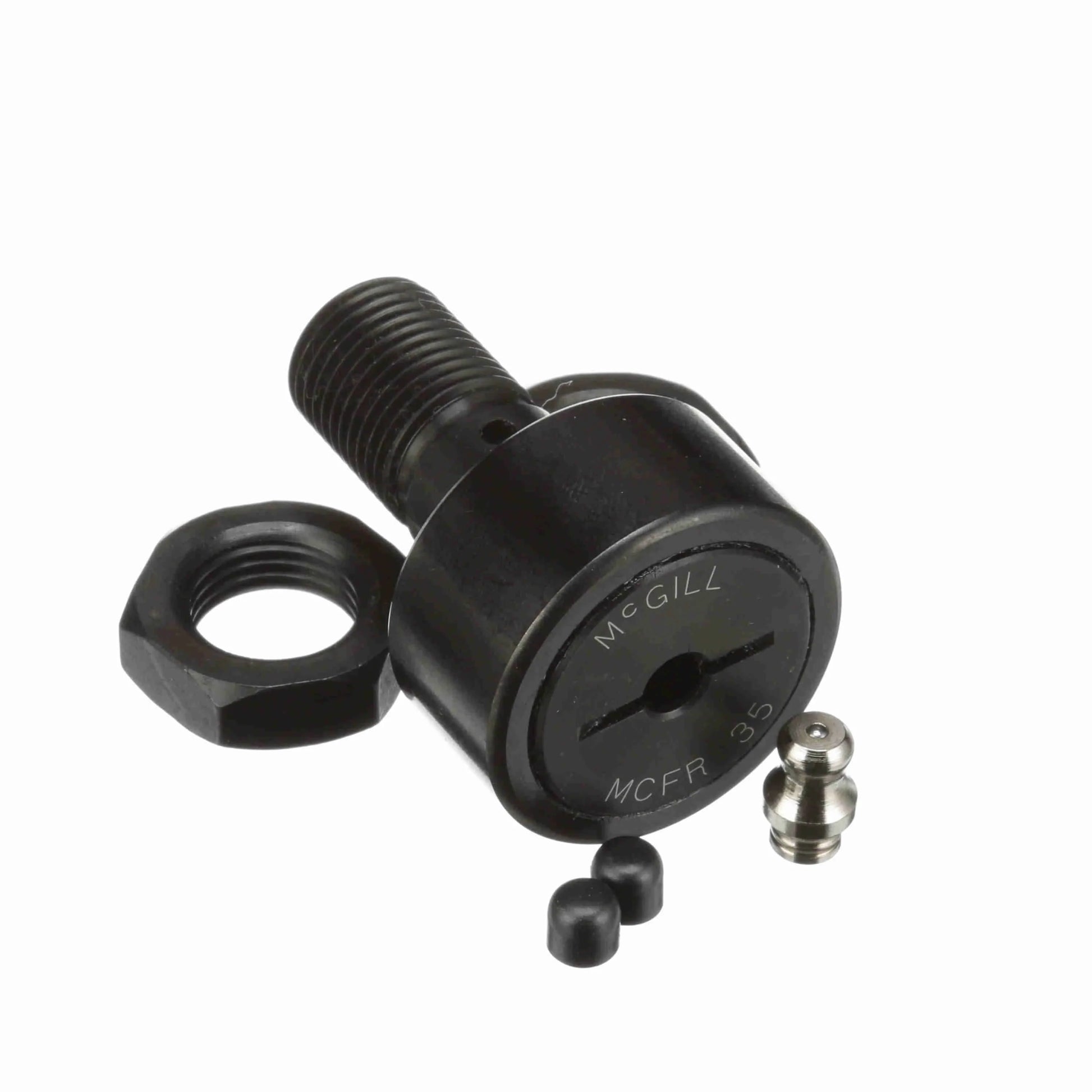

รายละเอียด ตลับลูกปืน McGill CAMROL® Crowned Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCFR 35
General Specifications
| UPC: | 726166020323 | Weight: | 0.49 LB |
| Packaged Length: | 2.6 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 1.7 Inches | Country of Origin: | China |
Dimensions
| Threads: | M16x1.5 | Minimum Thread Length: | 18 |
| Roller Width - mm: | 18 mm | Oil Hole Diameter - mm: | 3 mm |
| Stud Diameter - mm: | 16 mm | Oil Hole Center - mm: | 8 mm |
| Overall Length - mm: | 52 mm | Lubrication Fitting Size - Metric: | 6 |
| Stud Length - mm: | 32.5 mm | Roller Diameter - mm: | 35 mm |
| Reamed Hole - mm: | 6 mm |
Technical Specifications
| Adjustment: | None | Dynamic Radial Rating: | 2,448 |
| Hex/Slot: | Screwdriver Slot | Sealing: | Unsealed |
| O.D. Configuration: | Crowned | Dynamic Track Roller Load Rating (N): | 10,890 N |
| Rolling Element: | Needle Roller - Caged | Limiting Speed: | 6,300 |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Dynamic Load Rating - N: | 13,040 | Static Load Rating: | 15,900 |
| Stud Type: | Standard Stud | Industry Standard: | DIN / JIS |
| Clamping Torque - Nm: | 57 | Dynamic Load Rating - lb: | 2,460 |
| Static Track Roller Load Rating: | 15,900 | Roller Shape: | Crowned |
| Platform: | CAMROL® | Tolerance Class: | P0 Equivalent |
| Lubrication Hole Location: | Stud side |
