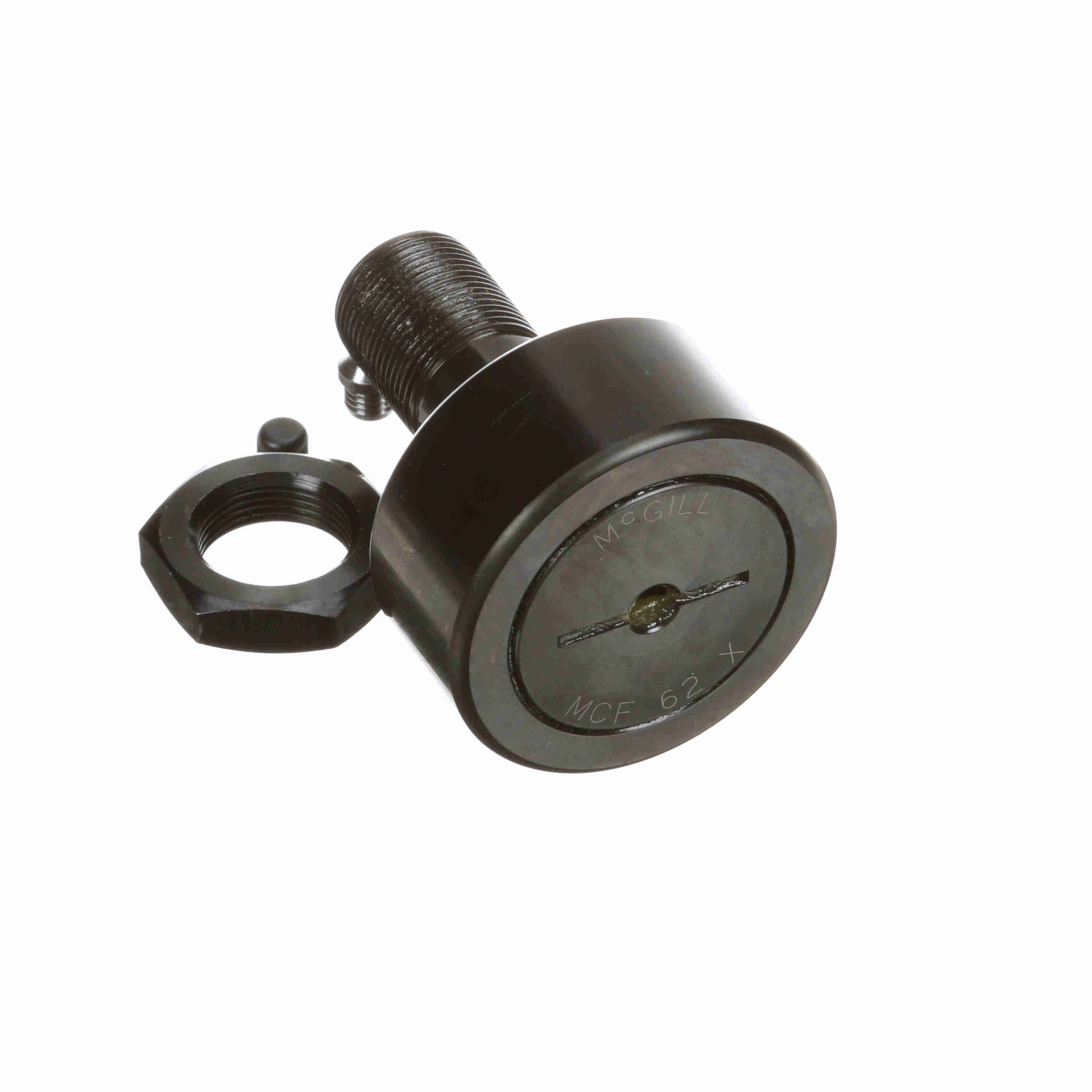

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - MCF 62 X
General Specifications
| UPC: | 726166024659 | Weight: | 2.07 LB |
| Packaged Length: | 2.7 Inches | Packaged Width: | 2.6 Inches |
| Packaged Height: | 3.3 Inches | Country of Origin: | China |
Dimensions
| Threads: | M24x1.5 | Minimum Thread Length: | 25 |
| Oil Hole Center - mm: | 11 mm | Roller Width - mm: | 29 mm |
| Lubrication Fitting Size - Metric: | 8 | Reamed Hole - mm: | 8 mm |
| Stud Length - mm: | 49.5 mm | Roller Diameter - mm: | 62 mm |
| Oil Hole Diameter - mm: | 4 mm | Overall Length - mm: | 80 mm |
| Stud Diameter - mm: | 24 mm |
Technical Specifications
| Dynamic Track Roller Load Rating (N): | 38,840 N | Limiting Speed: | 2,100 |
| O.D. Configuration: | Cylindrical | Sealing: | Unsealed |
| Adjustment: | None | Hex/Slot: | Screwdriver Slot |
| Dynamic Radial Rating: | 8,732 | Rolling Element: | Needle Roller - Full Complement |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 65,400 | Static Load Rating: | 65,400 |
| Tolerance Class: | P0 Equivalent | Dynamic Load Rating - N: | 46,580 |
| Clamping Torque - Nm: | 216 | Stud Type: | Standard Stud |
| Industry Standard: | DIN | Roller Shape: | Cylindrical |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 2,460 |
| Lubrication Hole Location: | Stud side |
