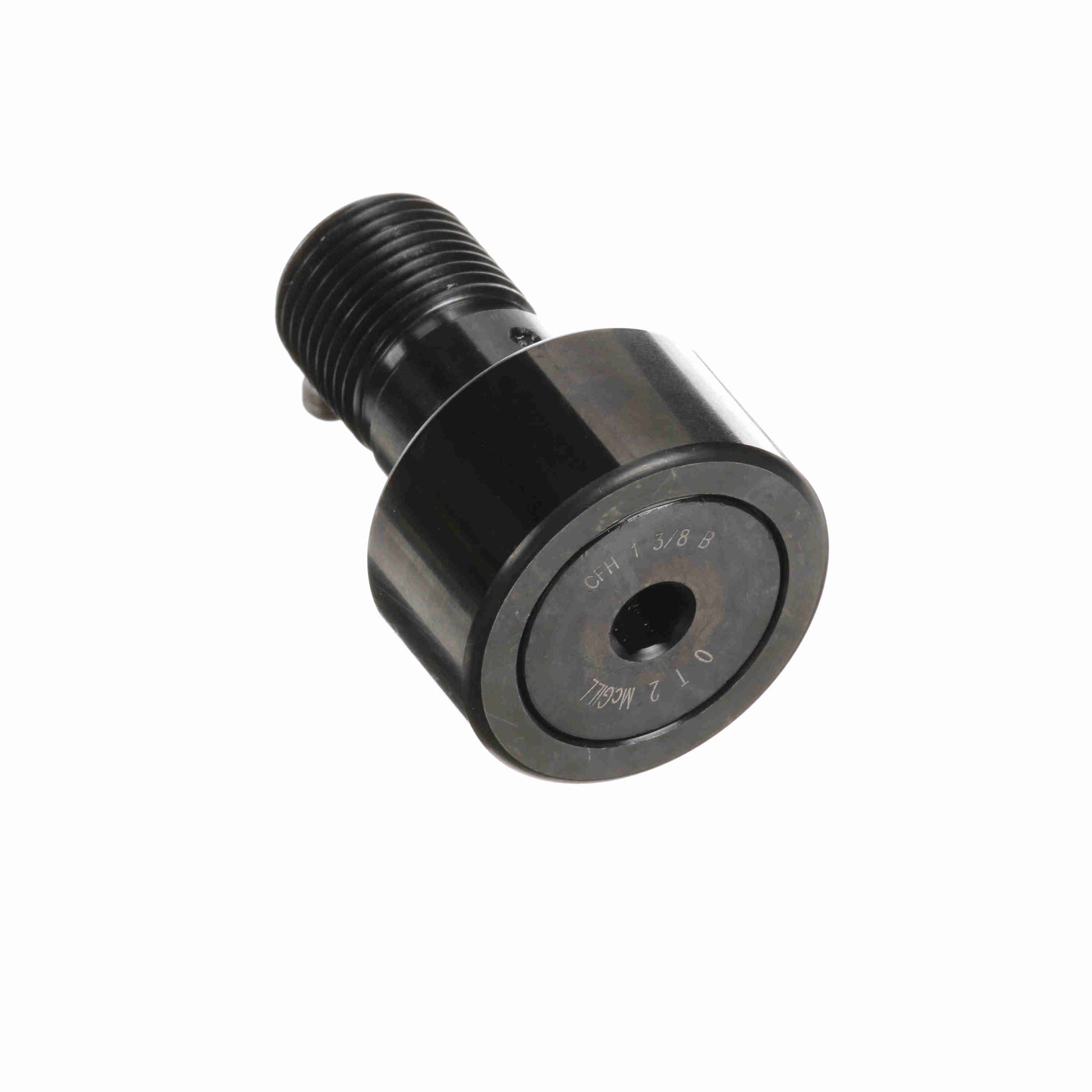

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Hex Hole - CFH 1 3/8 B
General Specifications
| UPC: | 726166035112 | Weight: | 0.43 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/4-16 | Minimum Thread Length - Inch: | 0.625 |
| Stud Diameter - Inch: | 0.75 | Oil Hole Center - Inch: | 0.313 |
| Lubrication Fitting Size - Inch: | 3/16 | Oil Hole Diameter - Inch: | 0.094 |
| Lubrication Fitting Size - Metric: | 3/16 | Stud Length - Inch: | 1.25 |
| Roller Diameter - Inch: | 1.375 | Roller Width - Inch: | 0.75 |
Technical Specifications
| Limiting Speed: | 2,800 | Hex/Slot: | Hex Hole |
| Rolling Element: | Needle Roller - Full Complement | O.D. Configuration: | Cylindrical |
| Sealing: | Unsealed | Adjustment: | None |
| Relubricatable: | Yes | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 7,700 | Roller Shape: | Cylindrical |
| Tolerance Class: | P0 Equivalent | Clamping Torque - in-lbf: | 1,250 |
| Platform: | CAMROL® | Dynamic Load Rating - lb: | 3,930 |
| Stud Type: | Heavy Stud |
