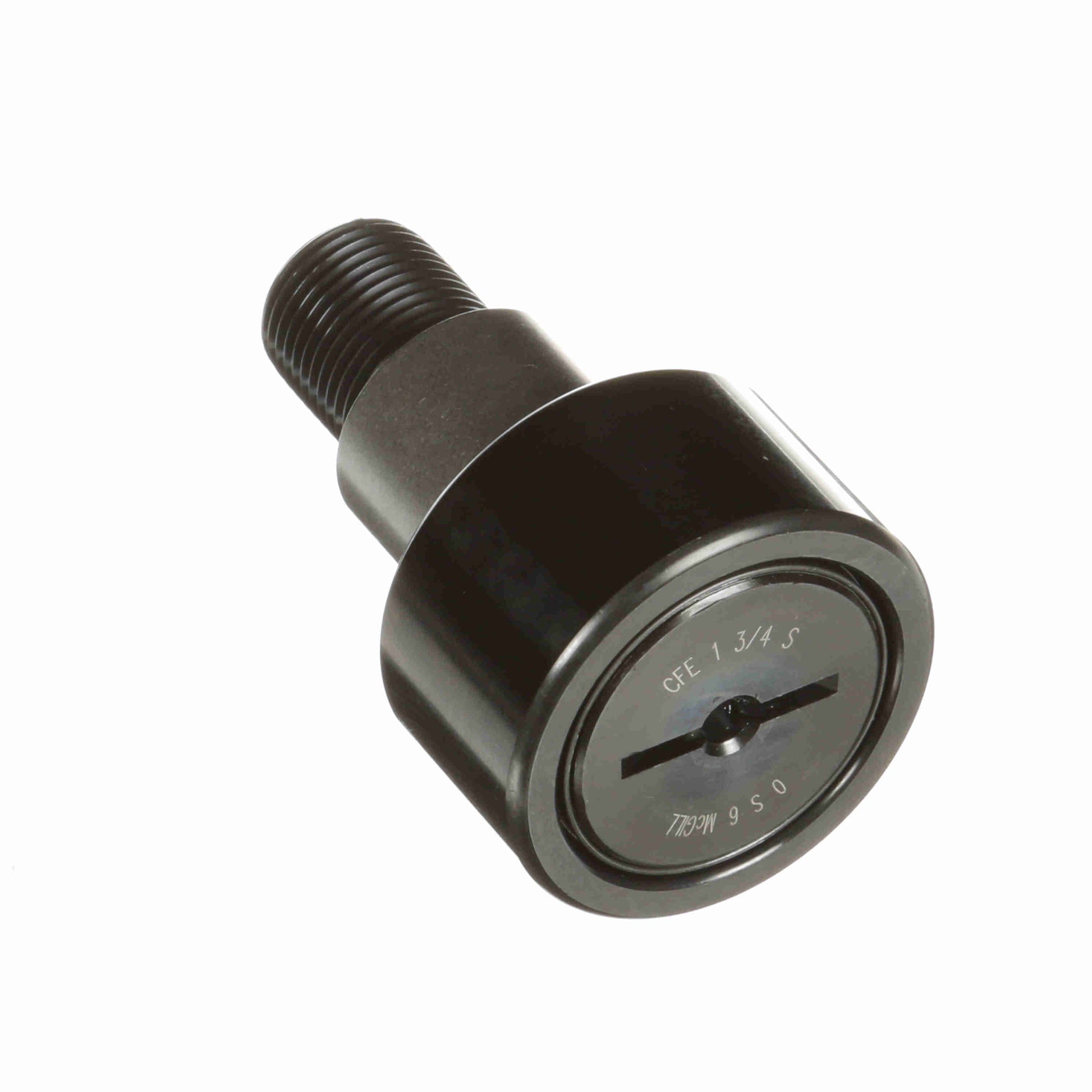

รายละเอียด ตลับลูกปืน McGill CAMROL® Cylindrical Inch Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - CFE 1 3/4 S
General Specifications
| UPC: | 726166036546 | Weight: | 0.92 LB |
| Packaged Length: | 2 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 2.87 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 3/4-16 | Eccentricity - Inch: | 0.03 |
| Stud Diameter - Inch: | 0.75 | Bushing Diameter - Inch: | 1 |
| Roller Diameter - Inch: | 1.75 | Stud Length - Inch: | 1.75 |
| Roller Width - Inch: | 1 | Lubrication Fitting Size - Inch: | 0.1875 |
| Minimum Thread Length: | 0.875 | Lubrication Fitting Size - Metric: | 0.1875 |
Technical Specifications
| O.D. Configuration: | Cylindrical | Dynamic Radial Rating: | 6,385 |
| Hex/Slot: | Screwdriver Slot | Adjustment: | Eccentric Bushing |
| Rolling Element: | Needle Roller - Full Complement | Limiting Speed: | 2,200 |
| Sealing: | Sealed | Relubricatable: | Yes |
| Material: | Bearing Steel, Black Oxide Finish | Tolerance Class: | P0 Equivalent |
| Roller Shape: | Cylindrical | Clamping Torque - in-lbf: | 1,250 |
| Static Load Rating: | 6,000 | Dynamic Load Rating - lb: | 6,385 |
| Platform: | CAMROL® | Stud Type: | Standard Stud with Eccentric Bushing |
