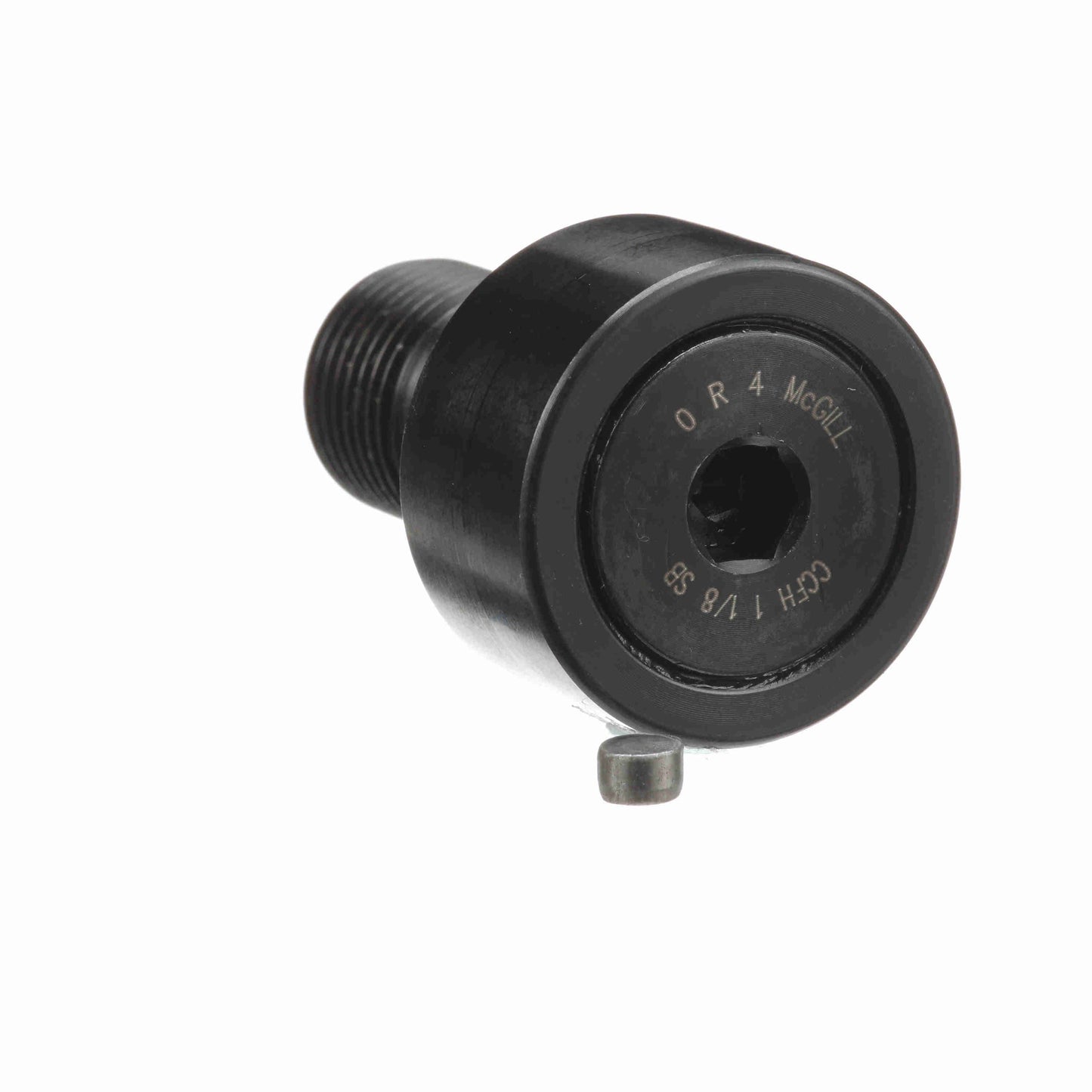

รายละเอียด ตลับลูกปืน McGill Heavy Stud CAMROL® Crowned Inch Cam Follower - Stud Mount Roller - Hex Hole - Sealed - CCFH 1 1/8 SB
General Specifications
| UPC: | 726166034139 | Weight: | 0.25 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
Dimensions
| Threads: | 5/8-18 | Stud Length - Inch: | 1 |
| Stud Diameter - Inch: | 0.625 | Oil Hole Center - Inch: | 0.25 |
| Roller Diameter - Inch: | 1.125 | Lubrication Fitting Size - Inch: | 3/16 |
| Roller Width - Inch: | 0.625 | Oil Hole Diameter - Inch: | 0.094 |
| Minimum Thread Length - Inch: | 0.5 | Lubrication Fitting Size - Metric: | 3/16 |
Technical Specifications
| Limiting Speed: | 3,400 | Adjustment: | None |
| Hex/Slot: | Hex Hole | Rolling Element: | Needle Roller - Full Complement |
| O.D. Configuration: | Crowned | Sealing: | Sealed |
| Relubricatable: | No | Material: | Bearing Steel, Black Oxide Finish |
| Roller Shape: | Crowned | Tolerance Class: | P0 Equivalent |
| Stud Type: | Heavy Stud | Dynamic Load Rating - lb: | 2,225 |
| Static Load Rating: | 5,400 | Platform: | CAMROL® |
| Clamping Torque - in-lbf: | 650 |
