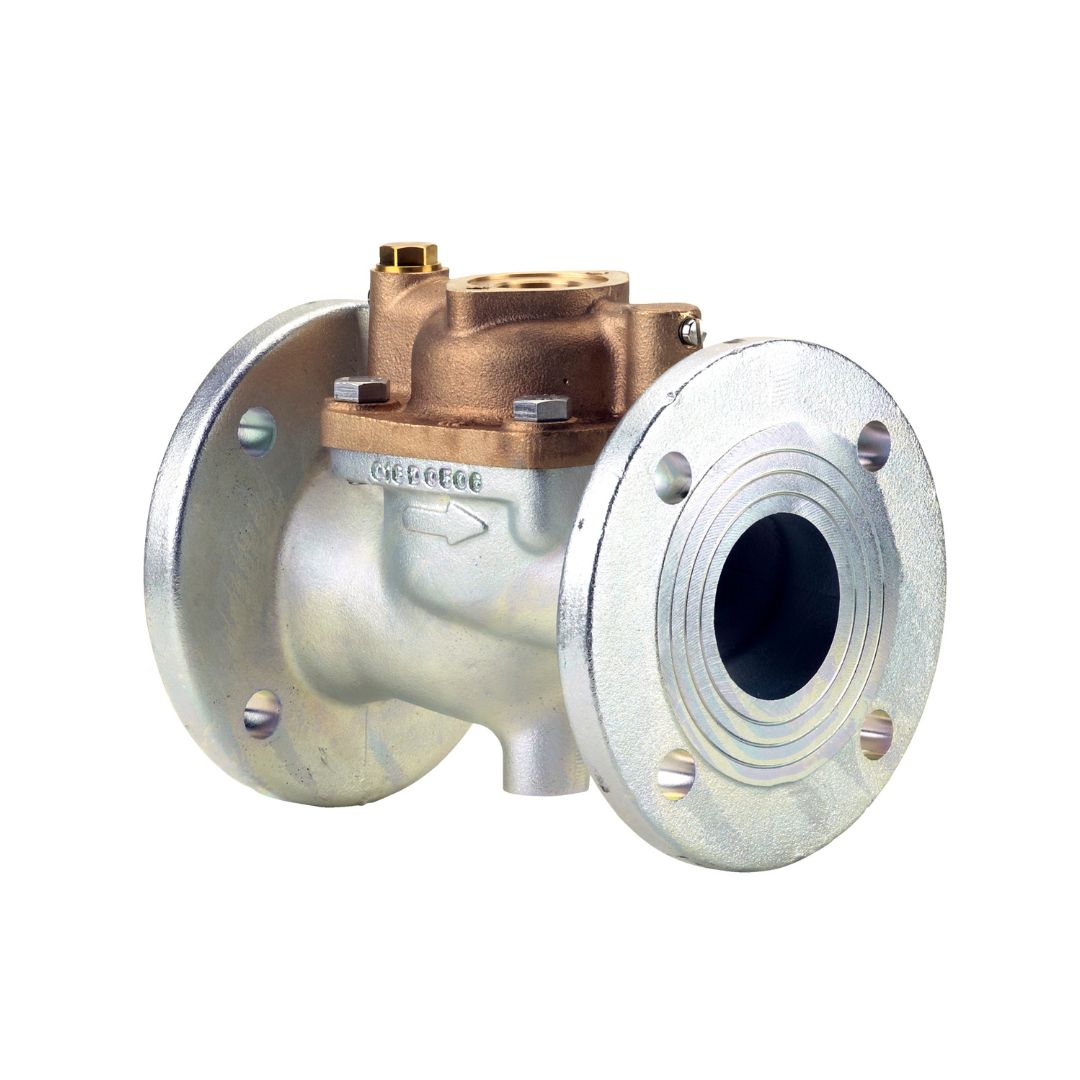

Valve Body For Water Reg.Valve Danfoss WVH 4 lnch Code 016D5100

Name: Valve Body For Water Reg.Valve Danfoss WVH 4 lnch Code 016D5100
Brand: Danfoss
Price: 164284.59 THB
Availability: InStock

Danfoss

164,284.59 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Valve Body For Water Reg.Valve Danfoss WVH 4 lnch Code 016D5100

Gross weight	26.38 Kg
Net weight	22.102 Kg
Volume	75.24 Liter
EAN	5702422002710
Approval	EAC LLC CDC TYSK PED RoHS RoHS China
Body material	Cast iron
Connection size [in]	3 in
Connection type	Weld flange
Differential pressure [bar] [max]	4 bar
Differential pressure [bar] [min]	0.3 bar
Differential pressure [psi] [max]	58 psi
Differential pressure [psi] [min]	4.3 psi
Kv value [m³/h]	80 m³/h
Max. test pressure [bar] Pe	16 bar
Max. test pressure [psig]	232 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media	Neutral media
Medium temperature range [°C] [max]	90 °C
Medium temperature range [°C] [min]	-25 °C
Medium temperature range [°F] [max]	194 °F
Medium temperature range [°F] [min]	-13 °F
Orifice size [mm]	80 mm
Orifice size fraction [in]	3 in
Packing format	Multi pack
Parts included	Flange bolts Flange gaskets Screws for pilot valve Valve body
Parts Program name	WVS WVTS
Product accessories	Flanges Generic accessories
Product group	Water regulating valves
Product Name Description	Valve body for water reg.valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	f7d782f1-04df-4c40-bfe2-ea3a06dce79f
SCIP dossier product name	WVS/WVTS
Serviceable	Water valve spare parts
Type	WVH
Used for product	WVS 80 WVTS 80
