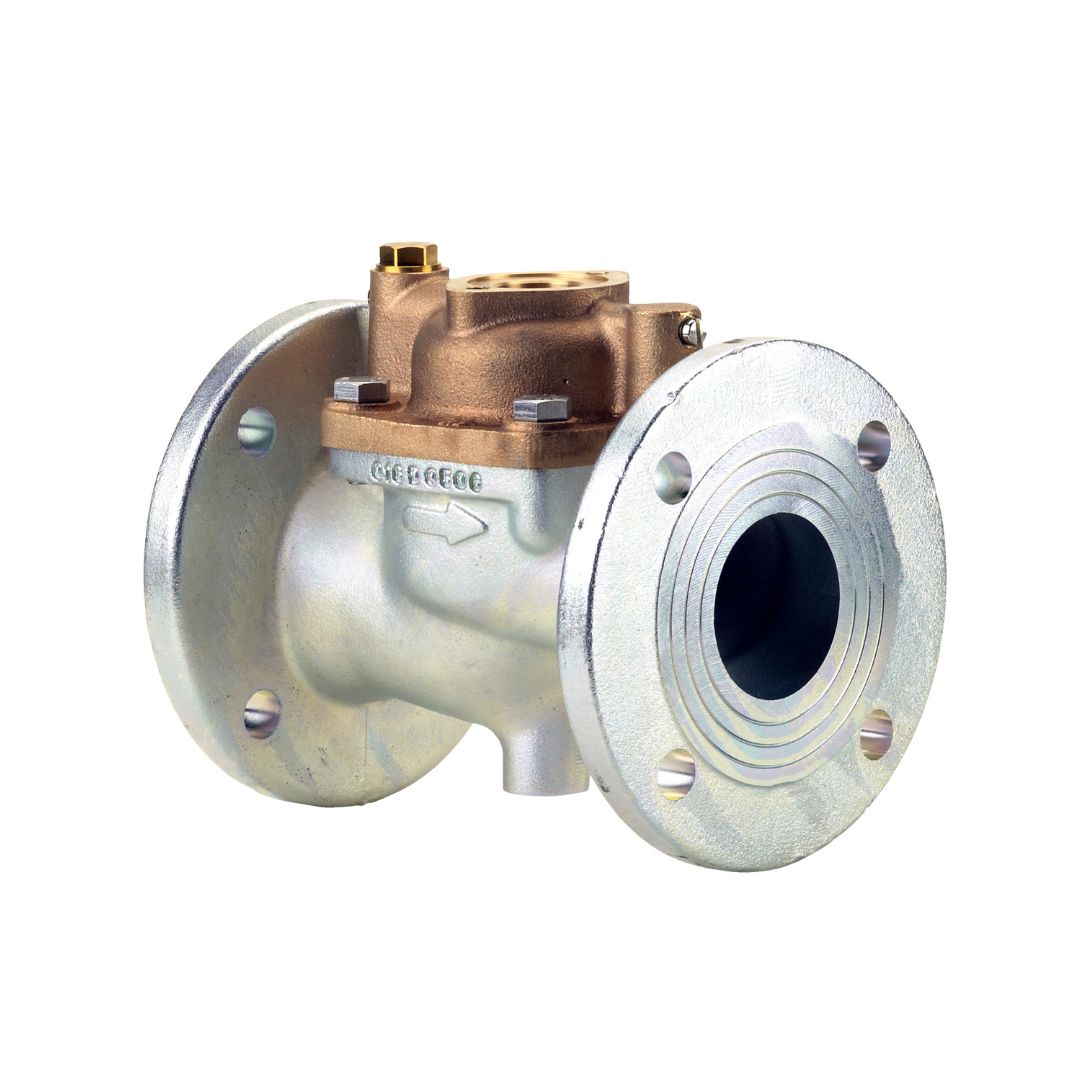

Valve Body For Water Reg.Valve Danfoss WVH 3 lnch Code 016D5080
Valve Body For Water Reg.Valve Danfoss WVH 3 lnch Code 016D5080
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
141,146.62 ฿
ราคาปกติ
ราคาโปรโมชัน
141,146.62 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Valve Body For Water Reg.Valve Danfoss WVH 3 lnch Code 016D5080
Product details
| Gross weight | 16.332 Kg |
| Net weight | 15.462 Kg |
| Volume | 22.49 Liter |
| EAN | 5702422012139 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Cast iron |
| Connection size [in] | 2 1/2 in |
| Connection type | Weld flange |
| Differential pressure [bar] [max] | 4 bar |
| Differential pressure [bar] [min] | 0.3 bar |
| Differential pressure [psi] [max] | 58 psi |
| Differential pressure [psi] [min] | 4.3 psi |
| Kv value [m³/h] | 45 m³/h |
| Max. test pressure [bar] Pe | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media | Neutral media |
| Medium temperature range [°C] [max] | 90 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 194 °F |
| Medium temperature range [°F] [min] | -13 °F |
| Orifice size [mm] | 65 mm |
| Orifice size fraction [in] | 2 1/4 in |
| Packing format | Multi pack |
| Parts included | Flange bolts Flange gaskets Screws for pilot valve Valve body |
| Parts Program name | WVS WVTS |
| Product accessories | Flanges Generic accessories |
| Product group | Water regulating valves |
| Product Name Description | Valve body for water reg.valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ade66c99-ed98-4a84-b547-395001201226 |
| SCIP dossier product name | 016D1017 |
| Serviceable | Water valve spare parts |
| Type | WVH |
| Used for product | WVS 65 WVTS 65 |
