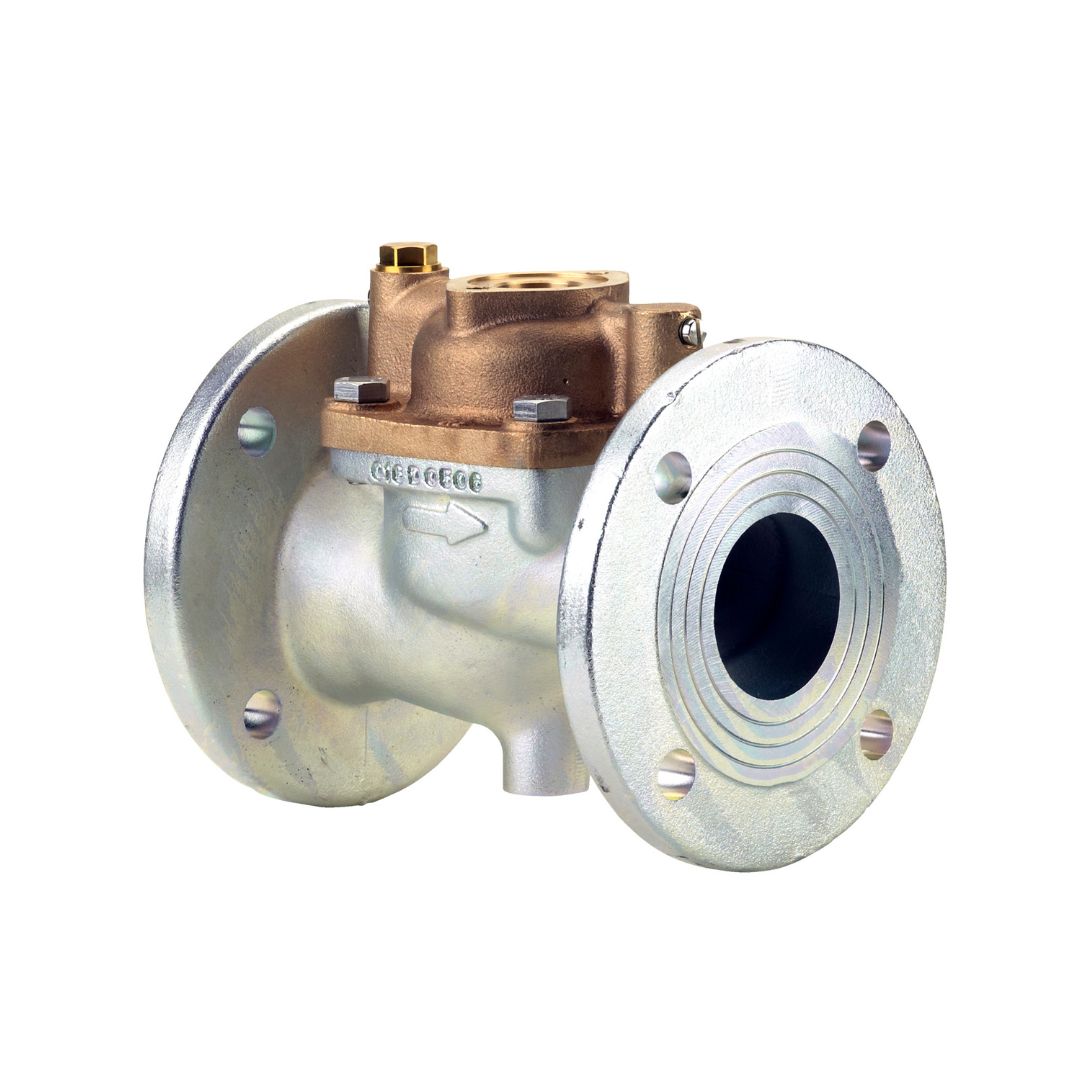

Valve Body For Water Reg.Valve Danfoss WVH 2 lnch Code 016D5050

Name: Valve Body For Water Reg.Valve Danfoss WVH 2 lnch Code 016D5050
Brand: Danfoss
Price: 84839.22 THB
Availability: InStock

Danfoss

84,839.22 ฿

ลดราคา ขายหมดแล้ว

ปริมาณ

รายละเอียด Valve Body For Water Reg.Valve Danfoss WVH 2 lnch Code 016D5050

Gross weight	6.218 Kg
Net weight	5.876 Kg
Volume	8.68 Liter
EAN	5702422023142
Approval	EAC LLC CDC TYSK PED RoHS RoHS China
Body material	Cast iron
Connection Internal/External	Internal
Connection size [in]	1 1/2
Connection standard	ISO 228-1
Connection type	G
Differential pressure [bar] [max]	4 bar
Differential pressure [bar] [min]	0.5 bar
Differential pressure [psi] [max]	58 psi
Differential pressure [psi] [min]	7.2 psi
Kv value [m³/h]	21 m³/h
Max. test pressure [bar] Pe	16 bar
Max. test pressure [psig]	232 psig
Max. Working Pressure [bar]	10 bar
Max. Working Pressure [psig]	145 psig
Media	Neutral media
Medium temperature range [°C] [max]	90 °C
Medium temperature range [°C] [min]	-25 °C
Medium temperature range [°F] [max]	194 °F
Medium temperature range [°F] [min]	-13 °F
Orifice size [mm]	40 mm
Orifice size fraction [in]	1 1/2 in
Packing format	Multi pack
Parts included	Flange bolts Flange gaskets Screws for pilot valve Valve body
Parts Program name	WVS WVTS
Product accessories	Generic accessories
Product group	Water regulating valves
Product Name Description	Valve body for water reg.valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	35587cc7-2e85-4a1f-b50a-df0b101db69
SCIP dossier product name	016D1017
Serviceable	Water valve spare parts
Type	WVH
Used for product	WVS 40 WVTS 40
